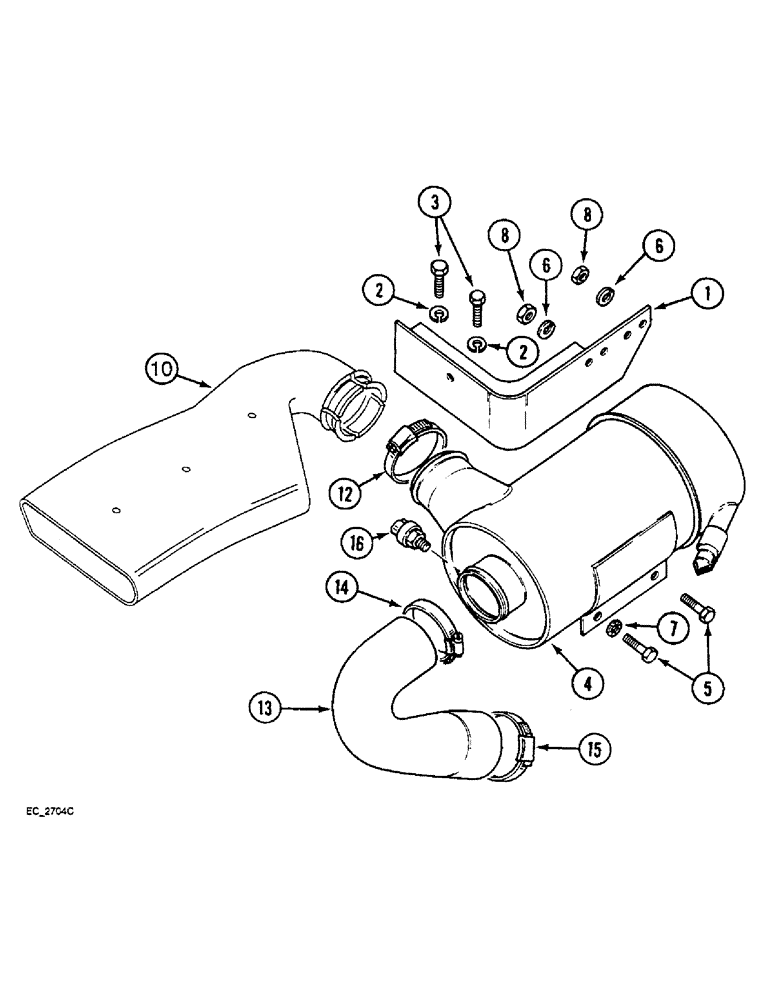

Запчасти Case IH 3220 (2-022) - AIR CLEANER MOUNTING (02) - ENGINE

1

181977A1

SUPPORT

BRACKET air cleaner mounting, 3220

1шт.

1

1536485C2

SUPPORT

BRACKET air cleaner mounting, 3230

1шт.

2

492-11038

LOCK WASHER,3/8"

2шт.

3

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

4

REF

INSTRUCTION

CLEANER air, 3220, See figure 2-026

1шт.

4

REF

INSTRUCTION

CLEANER air, 3230, See figure 2-024

1шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

6

492-11038

LOCK WASHER,3/8"

2шт.

7

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER external tooth lock, 3/8 inch

1шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

10

136175A2

DUCT

air inlet, 3220

1шт.

10

136176A2

DUCT

air inlet, 3230

1шт.

12

214-1552

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm, W/ Liner

CLAMP adj, 2-13/16 - 3-3/4 inch dia

1шт.

12

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, #64, 3.56/4.50 Type F Worm

1шт.

13

138762A1

INTAKE AIR HOSE,63.50 mm ID, 71.12 mm ID

Air Cleaner Outlet, 3220 63.50 mm ID, 71.12 mm ID

1шт.

13

3125121R3

INTAKE AIR HOSE,70.00 mm ID, 88.90 mm ID x 255.00 mm

Air Cleaner Outlet, 3230 70.00 mm ID, 88.90 mm ID x 255.00 mm

1шт.

14

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP hose, type F No. 48

2шт.

15

214-1556

HOSE CLAMP,#56, 3.06" - 4", Type F Worm, W/ Liner

CLAMP hose, type F No. 56, with liner

1шт.

16

3224405R91

RESTRICTION SWITCH

SWITCH air cleaner restriction indicator

1шт.
