(6-132) - REAR WHEEL WEIGHTS, SPLIT TYPE, 24 & 26 INCH WHEELS, 28 OR 30 INCH WHEELS, 1ST & 2ND POSITION

Запчасти Case IH 3220 (6-132) - REAR WHEEL WEIGHTS, SPLIT TYPE, 24 & 26 INCH WHEELS, 28 OR 30 INCH WHEELS, 1ST & 2ND POSITION (06) - POWER TRAIN

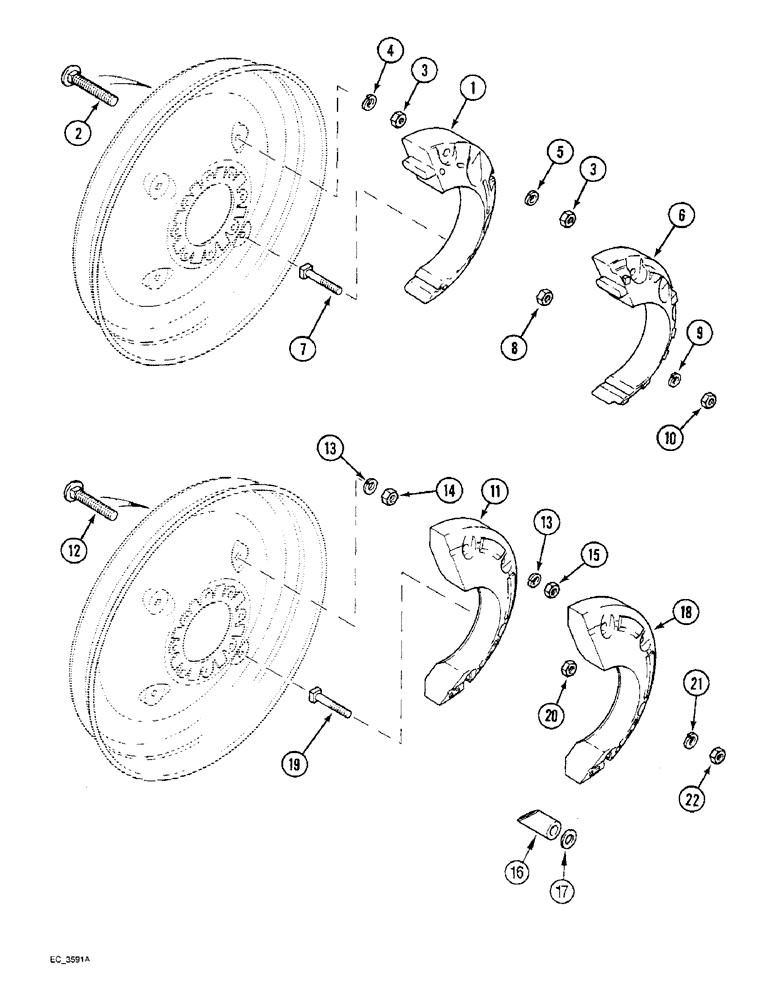

Схема запчастей Case IH 3220 - (6-132) - REAR WHEEL WEIGHTS, SPLIT TYPE, 24 & 26 INCH WHEELS, 28 OR 30 INCH WHEELS, 1ST & 2ND POSITION (06) - POWER TRAIN
14
4
6
15
21
18
17
13
9
8
2
12
3
13
11
3
10
5
19
7
1
22
16
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

369509R1

WEIGHT

rear wheels, 75 Lbs., 24 and 26 inch, 1st position

4шт.

2

366646R1

BOLT,Sht Sq Nk, 5/8" - 11 x 3 3/4", Gr 2

rear wheel weight mounting, 24 and 26 inch, 1st position

8шт.

3

425-1010

NUT,5/8"-11, G5

24 and 26 inch wheels, 1st position 5/8"-11, G5

16шт.

4

492-21062

LOCK WASHER,5/8"

24 and 26 inch wheels, 1st position 5/8"

8шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 24 and 26" wheels, 1st position 5/8"

8шт.

6

369509R1

WEIGHT

rear wheels, 75 Lbs., 24 and 26 inch, 2nd position

4шт.

7

369508R1

BOLT,5/8" - 11 x 5 3/4"

rear wheel weight mounting, 24 and 26 inch, 2nd position

8шт.

8

425-1410

JAM NUT,Jam, 5/8"-11, G5

hex, jam, 5/8 inch NC, 24 and 26 inch wheels, 2nd position

8шт.

9

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 24 and 26" wheels, 2nd position 5/8"

8шт.

10

425-1010

NUT,5/8"-11, G5

24 and 26 inch wheels, 2nd position 5/8"-11, G5

8шт.

10

425-1010

NUT,5/8"-11, G5

24 and 26 inch wheels, 2nd position 5/8"-11, G5

8шт.

11

365321R2

WEIGHT

rear wheel, 75 Lbs., 28 or 30 inch, 1st position

4шт.

12

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

hex, 5/8 NC x 4 inch, 28 or 30 inch wheels, 1st position

8шт.

13

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 28 or 30" wheels, 1st position 5/8"

16шт.

14

425-1410

JAM NUT,Jam, 5/8"-11, G5

hex, jam, 5/8 inch NC, 28 or 30 inch wheels, 1st position

8шт.

15

425-1010

NUT,5/8"-11, G5

28 or 30 inch wheels, 1st position 5/8"-11, G5

8шт.

16

135165A1

SPACER

28 or 30 inch wheels, 1st position

8шт.

17

495-11066

WASHER,5/8", SAE

flat, 28 or 30 inch wheels, 1st position

8шт.

18

365321R2

WEIGHT

rear wheel, 75 Lbs., 28 or 30 inch, 2nd position

4шт.

19

365332R2

SQUARE BOLT

BOLT rear wheel weight mounting, 28 or 30 inch, 2nd position

8шт.

20

425-1410

JAM NUT,Jam, 5/8"-11, G5

hex, jam, 5/8 inch NC, 28 or 30 inch wheels, 2nd position

8шт.

21

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 28 or 30" wheels, 2nd position 5/8"

8шт.

22

425-1010

NUT,5/8"-11, G5

28 or 30 inch wheels, 2nd position 5/8"-11, G5

8шт.
