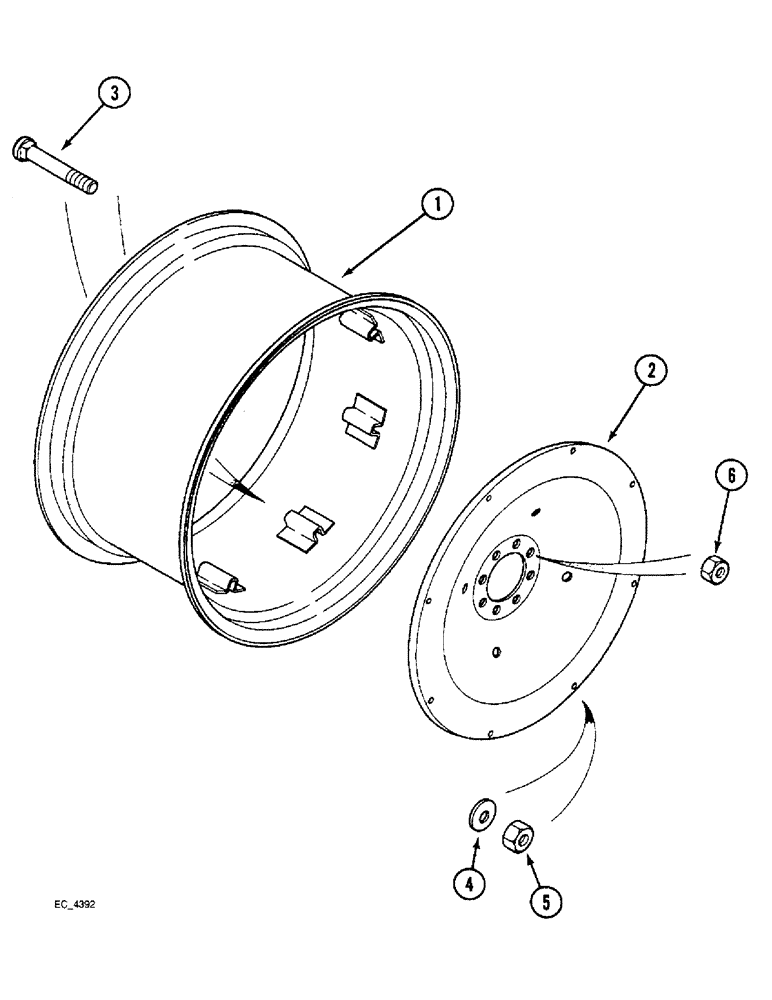

Запчасти Case IH 3220 (6-130) - REAR WHEELS - CAN - AM (06) - POWER TRAIN

1

1985679C1

RIM

wheel, 15 x 34 inch

2шт.

2

1985683C1

DISC, WHEEL

DISC, 34 inch wheel

2шт.

3

711-16120

CARRIAGE BOLT,Sq Nk, M16 x 2 x 120mm, Cl 8.8

BOLT round, square neck, 16 x 120 mm, class 8,8

16шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

flat, 17.5 x 30 x 4 mm, hardened

16шт.

5

825-1416

NUT,M16, Cl 8

16шт.

6

3047575R3

NUT,Wheel, 5/8"-18

wheel retaining

16шт.

1

1985688C1

RIM

wheel, 11 x 38

2шт.

2

1985680C2

DISC, WHEEL

DISC wheel, 38 inch

2шт.

3

711-16100

CARRIAGE BOLT,Sq Nk, M16 x 2 x 100mm, Cl 8.8

BOLT round, square neck, 16 x 100 mm, class 8,8

16шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

flat, 17.5 x 30 x 4 mm, hardened

16шт.

5

825-1416

NUT,M16, Cl 8

16шт.

6

3047575R3

NUT,Wheel, 5/8"-18

wheel retaining

16шт.

1

1985682C1

RIM

wheel, 14 x 38

2шт.

2

1985680C2

DISC, WHEEL

DISC wheel, 38 inch

2шт.

3

711-16100

CARRIAGE BOLT,Sq Nk, M16 x 2 x 100mm, Cl 8.8

BOLT round, square neck, 16 x 100 mm, class 8,8

16шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

flat, 17.5 x 30 x 4 mm, hardened

16шт.

5

825-1416

NUT,M16, Cl 8

16шт.

6

3047575R3

NUT,Wheel, 5/8"-18

wheel retaining

16шт.
