Запчасти Case IH 3220 (6-128) - REAR WHEELS (06) - POWER TRAIN

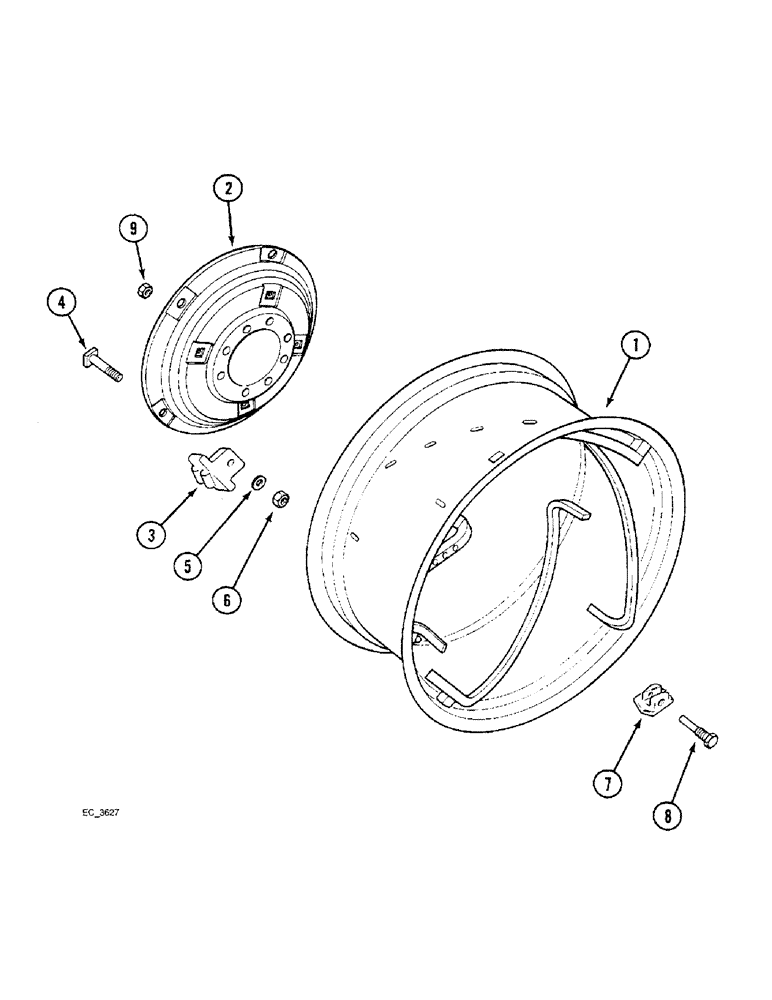

Схема запчастей Case IH 3220 - (6-128) - REAR WHEELS (06) - POWER TRAIN
1
4
6
8
3
2
5
7
9

Артикул

Название

Примечание

Количество

1

A167901

RIM

power adjusted wheel, W12-28, 28 inch

2шт.

2

1282567C1

DISC, WHEEL

DISC formed, 28 inch diameter, power adjusted wheel

2шт.

3

399004R1

SHIN

CLAMP double ramp, 28 inch power adjusted wheel

10шт.

4

399005R1

SQUARE BOLT,3/4" - 10 x 2.25"

BOLT square head, 3/4 NC x 2-1/4 inch, 28 inch power adjusted wheel

10шт.

5

399007R1

WASHER

flat, 3/4 inch NC, 28 inch power adjusted wheel

10шт.

6

399006R1

WHEEL NUT

hex, 3/4 inch NC, 28 inch power adjusted wheel

10шт.

7

A9406

STOP

rim, 28 inch power adjusted wheel

4шт.

8

K200142

SCREW,Hex, 9/16" x 2 1/8"

BOLT stop bracket, 28 inch power adjusted wheel

4шт.

9

3047575R3

NUT,Wheel, 5/8"-18

wheel retaining, 28 inch power adjusted

16шт.

1

1343078C1

RIM

power adjusted wheel, W15-30, for 18.4 x 30 tire, 28 inch

2шт.

2

399002R1

DISC, WHEEL

DISC formed, 28 inch diameter, power adjusted wheel

2шт.

3

399004R1

SHIN

CLAMP double ramp, 28 inch power adjusted wheel

10шт.

4

399005R1

SQUARE BOLT,3/4" - 10 x 2.25"

BOLT square head, 3/4 NC x 2-1/4 inch, 28 inch power adjusted wheel

10шт.

5

399007R1

WASHER

flat, 3/4 inch NC, 28 inch power adjusted wheel

10шт.

6

399006R1

WHEEL NUT

hex, 3/4 inch NC, 28 inch power adjusted wheel

10шт.

7

A9406

STOP

rim, 28 inch power adjusted wheel

4шт.

8

K200142

SCREW,Hex, 9/16" x 2 1/8"

BOLT stop bracket, 28 inch power adjusted wheel

4шт.

9

3047575R3

NUT,Wheel, 5/8"-18

wheel retaining, 28 inch power adjusted

16шт.

1

1282566C1

RIM

power adjusted wheel, W14-30, for 16.9 x 30 tire, 30 inch

2шт.

2

399002R1

DISC, WHEEL

DISC formed, 30 inch diameter, power adjusted wheel

2шт.

3

399004R1

SHIN

CLAMP double ramp, 30 inch power adjusted wheel

10шт.

4

399005R1

SQUARE BOLT,3/4" - 10 x 2.25"

BOLT square head, 3/4 NC x 2-1/4 inch, 30 inch power adjusted wheel

10шт.

5

399007R1

WASHER

flat, 3/4 inch NC, 30 inch power adjusted wheel

10шт.

6

399006R1

WHEEL NUT

hex, 3/4 inch NC, 30 inch power adjusted wheel

10шт.

7

A9406

STOP

rim, 30 inch power adjusted wheel

4шт.

8

K200142

SCREW,Hex, 9/16" x 2 1/8"

BOLT stop bracket, 30 inch power adjusted wheel

4шт.

9

3047575R3

NUT,Wheel, 5/8"-18

wheel retaining, 30 inch power adjusted

16шт.

Выбрано товаров: 27
