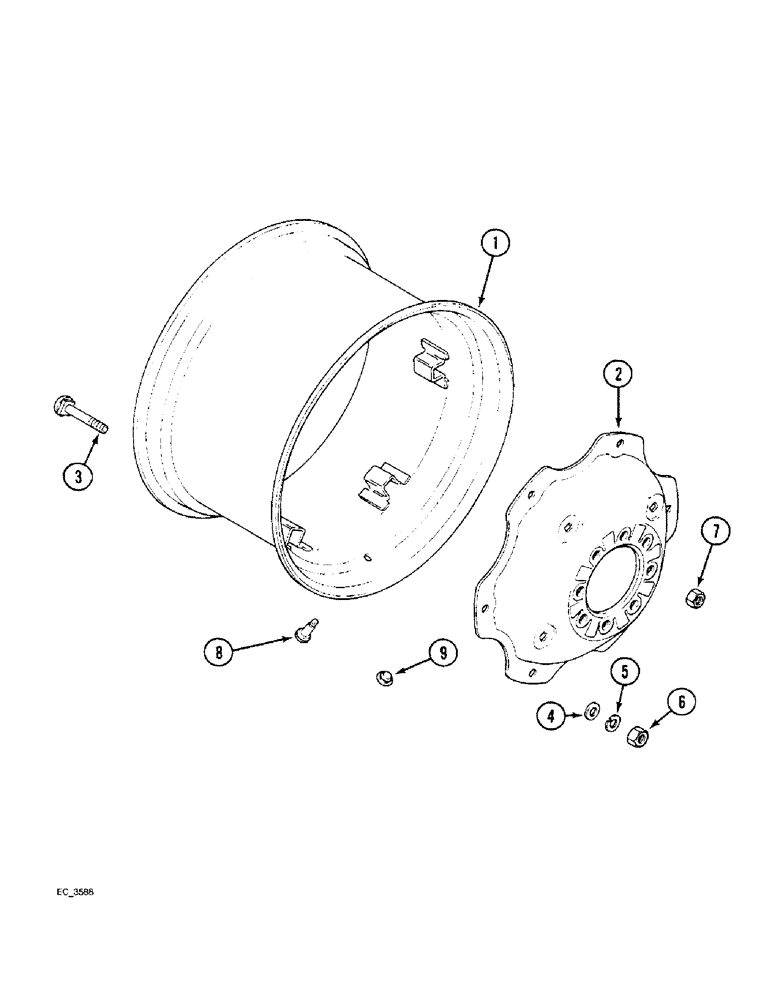

Запчасти Case IH 3220 (6-126) - REAR WHEELS, 26 AND 30 INCH WHEELS (06) - POWER TRAIN

1

3129777R1

RIM

wheel, DW16-26, for 18.4 x 26 tire, 26 inch

2шт.

2

129373A1

DISC, WHEEL

DISC, 24 and 26 inch wheel

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

rear wheel rim clamp, 26 inch

12шт.

4

369730R2

WASHER

flat, 21/32 x 1-5/16 x 9/64 inch, 26 inch wheel

12шт.

5

492-21062

LOCK WASHER,5/8"

26 inch wheel 5/8"

12шт.

6

429-1110

NUT,5/8"-18, G8

26" Wheel 5/8"-18, G8

12шт.

7

3047575R3

NUT,Wheel, 5/8"-18

wheel retaining, 26 inch wheel

16шт.

8

A20058

VALVE STEM

26 inch wheel

2шт.

9

417194C1

PLUG

valve hole, 26 inch wheel

1шт.

1

395856R2

RIM

wheel, DW14-30, for 16.9 x 30 tire, 30 inch

2шт.

2

129374A1

DISC, WHEEL

DISC, 28 and 30 inch wheel

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

rear wheel rim clamp, 30 inch

12шт.

4

369730R2

WASHER

flat, 21/32 x 1-5/16 x 9/64 inch, 30 inch

12шт.

5

492-21062

LOCK WASHER,5/8"

30 inch wheel 5/8"

12шт.

6

429-1110

NUT,5/8"-18, G8

30" Wheel 5/8"-18, G8

12шт.

7

3047575R3

NUT,Wheel, 5/8"-18

wheel retaining, 30 inch

16шт.

8

A20058

VALVE STEM

30 inch wheel

2шт.

9

417194C1

PLUG

valve hole, 30 inch wheel

1шт.

1

395855R2

RIM

wheel, DW16-30, for 18.4 x 30 tire, 30 inch

2шт.

2

129374A1

DISC, WHEEL

DISC, 28 and 30 inch wheel

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

rear wheel rim clamp, 30 inch

12шт.

4

369730R2

WASHER

flat, 21/32 x 1-5/16 x 9/64 inch, 30 inch wheel

12шт.

5

492-21062

LOCK WASHER,5/8"

30 inch wheel 5/8"

12шт.

6

429-1110

NUT,5/8"-18, G8

30" Wheel 5/8"-18, G8

12шт.

7

3047575R3

NUT,Wheel, 5/8"-18

wheel retaining, 30 inch

16шт.

8

A20058

VALVE STEM

30 inch wheel

2шт.

9

417194C1

PLUG

valve hole, 30 inch wheel

1шт.
