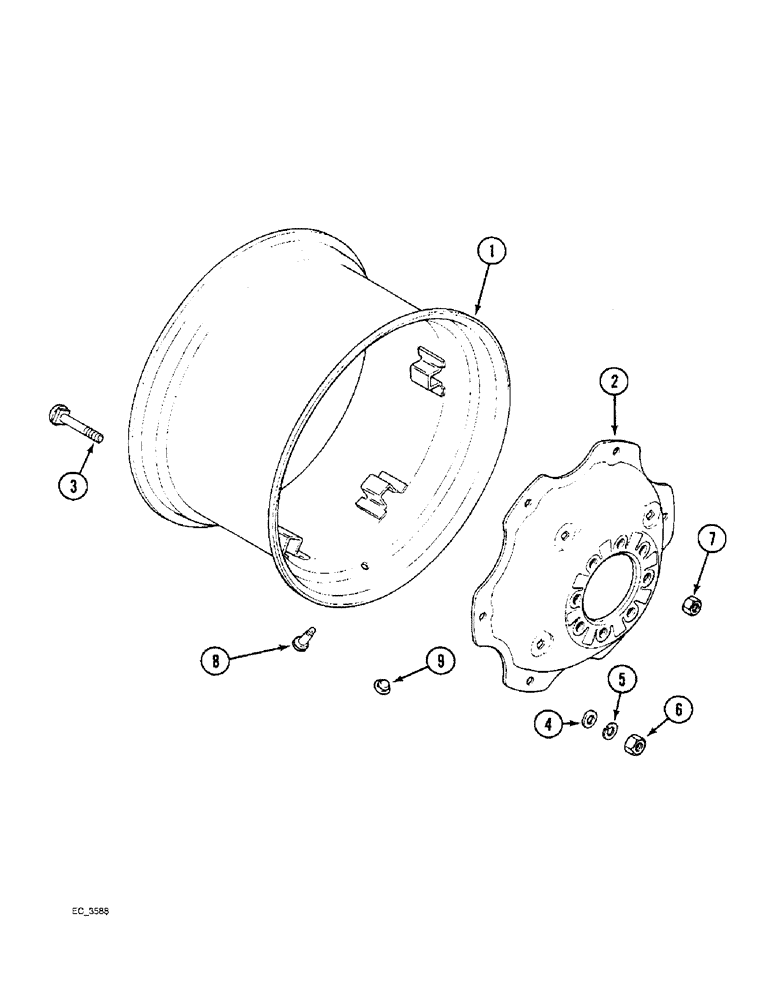

Запчасти Case IH 3220 (6-124) - REAR WHEELS (06) - POWER TRAIN

1

1265034C1

RIM

wheel, W11-28, for 13.6 x 28 tire, 28 inch

2шт.

2

361724R1

WHEEL DISC

DISC, 26 and 28 inch wheels

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

rear wheel rim clamp, 28 inch

12шт.

4

369730R2

WASHER

flat, 21/32 x 1-5/16 x 9/64 inch, 28 inch wheels

12шт.

5

492-21062

LOCK WASHER,5/8"

28 inch wheels 5/8"

12шт.

6

429-1110

NUT,5/8"-18, G8

28" Wheels 5/8"-18, G8

12шт.

7

3047575R3

NUT,Wheel, 5/8"-18

wheel retaining, 28 inch

16шт.

1

G45710

RIM

wheel, W12-28, for 14.9 x 28 tires, 28 inch

2шт.

2

361724R1

WHEEL DISC

DISC, 26 and 28 inch wheels

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

rear wheel rim clamp, 28 inch

12шт.

4

369730R2

WASHER

flat, 21/32 x 1-5/16 x 9/64 inch, 28 inch wheels

12шт.

5

492-21062

LOCK WASHER,5/8"

28 inch wheels 5/8"

12шт.

6

429-1110

NUT,5/8"-18, G8

28" Wheels 5/8"-18, G8

12шт.

7

3047575R3

NUT,Wheel, 5/8"-18

wheel retaining, 28 inch wheels

16шт.

1

1265036C1

RIM

wheel, W15L-28, for 16.9 x 28 tire, 28 inch

2шт.

2

361724R1

WHEEL DISC

DISC, 26 and 28 inch wheels

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

rear wheel rim clamp, 28 inch wheels

12шт.

4

369730R2

WASHER

flat, 21/32 x 1-5/16 x 9/64 inch, 28 inch wheels

12шт.

5

492-21062

LOCK WASHER,5/8"

28 inch wheels 5/8"

12шт.

6

429-1110

NUT,5/8"-18, G8

28" Wheels 5/8"-18, G8

12шт.

7

3047575R3

NUT,Wheel, 5/8"-18

wheel retaining, 28 inch

16шт.

8

A20058

VALVE STEM

28 inch wheels

2шт.

1

G45710

RIM

wheel W12-28, for 14.9 x 28 tires, 28 inch dual

4шт.

2

361724R1

WHEEL DISC

DISC, 26 and 28 inch dual wheels

4шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

rear wheel rim clamp, 28 inch dual

24шт.

4

492-21062

LOCK WASHER,5/8"

28 inch dual wheels 5/8"

24шт.

5

492-21062

LOCK WASHER,5/8"

28 inch dual wheels 5/8"

24шт.

6

429-1110

NUT,5/8"-18, G8

28" Dual wheels 5/8"-18, G8

24шт.

9

383697R1

PLUG

valve hole, 28 inch dual wheels

1шт.
