Запчасти Case IH 3220 (6-122) - REAR WHEELS, 24 INCH WHEELS (06) - POWER TRAIN

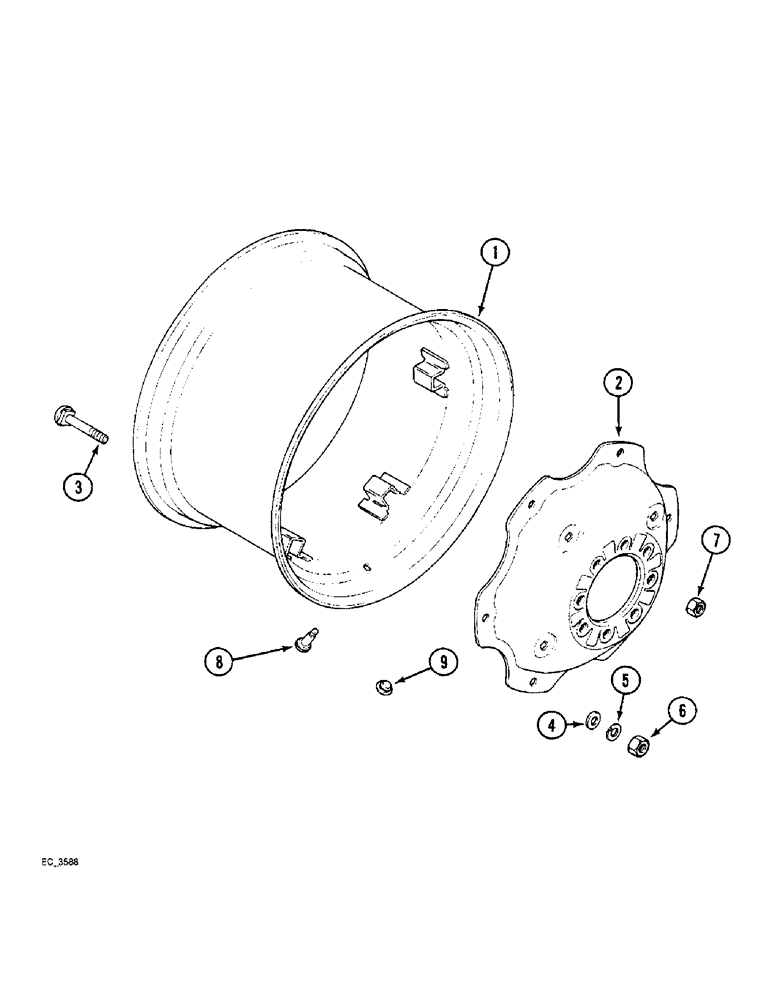

Схема запчастей Case IH 3220 - (6-122) - REAR WHEELS, 24 INCH WHEELS (06) - POWER TRAIN
5
9
4
6
8
2
1
7
3

Артикул

Название

Примечание

Количество

1

374807R92

RIM

wheel, W10-24, for 11.2 x 24 or 12.4 x 24 tires

2шт.

2

129373A1

DISC, WHEEL

DISC, 24 and 26 inch wheel

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

rear wheel rim clamp

12шт.

4

369730R2

WASHER

flat, 21/32 x 1-5/16 x 9/64 inch

12шт.

5

492-21062

LOCK WASHER,5/8"

12шт.

6

429-1110

NUT,5/8"-18, G8

12шт.

1

D72304

RIM

adjustable, W12-24, for 13.6 x 24 or 14.9 x 24 tires

2шт.

2

129373A1

DISC, WHEEL

DISC, 24 and 26 inch wheel

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

rear wheel rim clamp

12шт.

4

369730R2

WASHER

flat, 21/32 x 1-5/16 x 9/64 inch

12шт.

5

492-21062

LOCK WASHER,5/8"

12шт.

6

429-1110

NUT,5/8"-18, G8

12шт.

1

1265033C92

RIM

wheel, W15L-24, for 16.9 x 24 tire

2шт.

2

129373A1

DISC, WHEEL

DISC, 24 and 26 inch wheel

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

rear wheel rim clamp

12шт.

4

369730R2

WASHER

flat, 21/32 x 1-5/16 x 9/64 inch

12шт.

5

492-21062

LOCK WASHER,5/8"

12шт.

6

429-1110

NUT,5/8"-18, G8

2шт.

7

3047575R3

NUT,Wheel, 5/8"-18

wheel retaining

16шт.

8

A20058

VALVE STEM

2шт.

Выбрано товаров: 20
