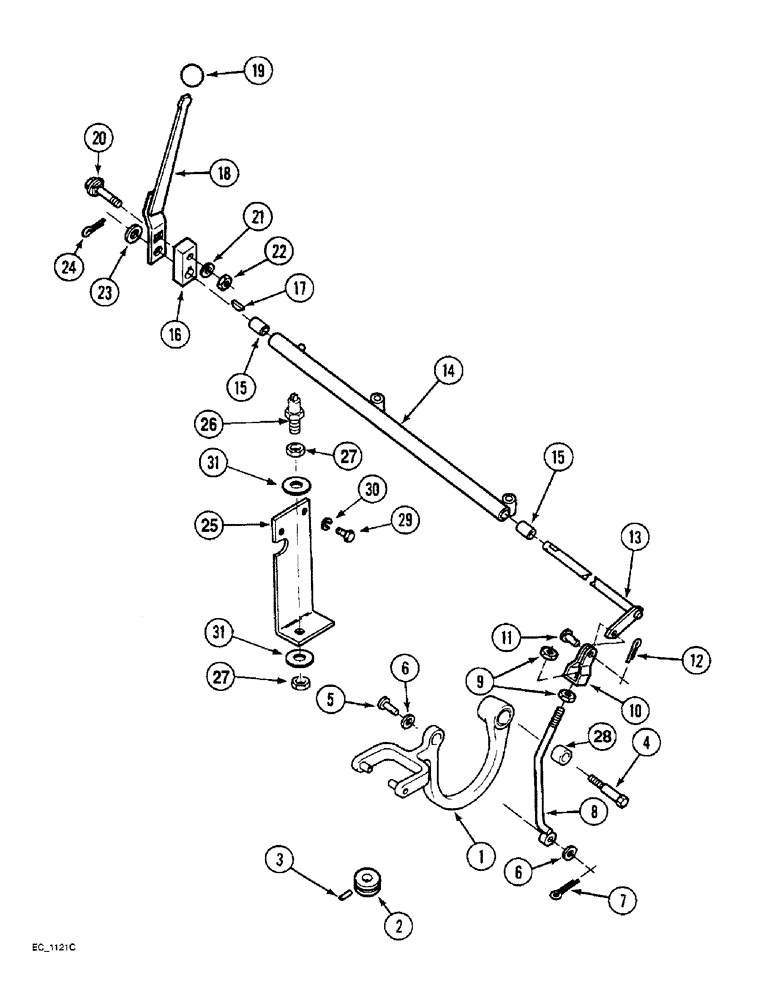

Запчасти Case IH 3220 (6-116) - INDEPENDENT POWER TAKE OFF CONTROL, TRACTOR WITHOUT CAB (06) - POWER TRAIN

1

135837A1

LEVER

ASSEMBLY IPTO, control

1шт.

2

530813R2

GUIDE BUSHING

COLLAR IPTO

1шт.

3

364437R1

PIN,3/16" x 7/8", Coiled

1шт.

4

135925A1

BOLT,Hex, 3/8" - 16 - 14.22 - 14.30mm x 56mm L

BOLT control arm pivot shaft

1шт.

5

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, , Hardened 3/8" x 1 1/16"

1шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

7

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

1шт.

8

3129234R2

ROD ASSY.

ROD ASSEMBLY IPTO

1шт.

9

425-115

NUT,5/16"-24, G5

hex, 5/16 inch NF

2шт.

10

3129237R1

CLEVIS

IPTO control

1шт.

11

427-5071

CLEVIS PIN,7.92mm OD x 18.26mm L

hardened 5/16" x .719"

1шт.

12

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

1шт.

13

3129240R1

SHAFT ASSY.

SHAFT cross-over

1шт.

14

3129238R91

SUPPORT ASSY.

SUPPORT ASSEMBLY IPTO control shaft, Includes Ref. 15

1шт.

15

528839R1

BUSHING

control shaft support

2шт.

16

538719R1

PIVOT

control handle

1шт.

17

126-109

WOODRUFF KEY,#3, 1/8" x 1/2", HT

1шт.

18

1536837C1

LEVER ASSY.

LEVER ASSEMBLY adjusting

1шт.

19

99863C1

BUTTON

KNOB IPTO hand lever, yellow

1шт.

20

412-520

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1 1/4", Gr 2

BOLT carriage, 5/16 NC x 1-1/4 inch, grade 2

1шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

22

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

23

495-81016

WASHER,17/32" x 3/4" x .060"

flat, 17/32 x 3/4 x 1/16 inch

1шт.

24

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

25

176469A1

SUPPORT

ANGLE switch mounting

1шт.

26

115206A1

LIMIT SWITCH

SWITCH

1шт.

27

125081A1

NUT

hex, 5/8 inch

2шт.

28

135951A1

SPACER

tube

1шт.

29

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

30

492-11038

LOCK WASHER,3/8"

2шт.

31

495-11066

WASHER,5/8", SAE

flat

2шт.
