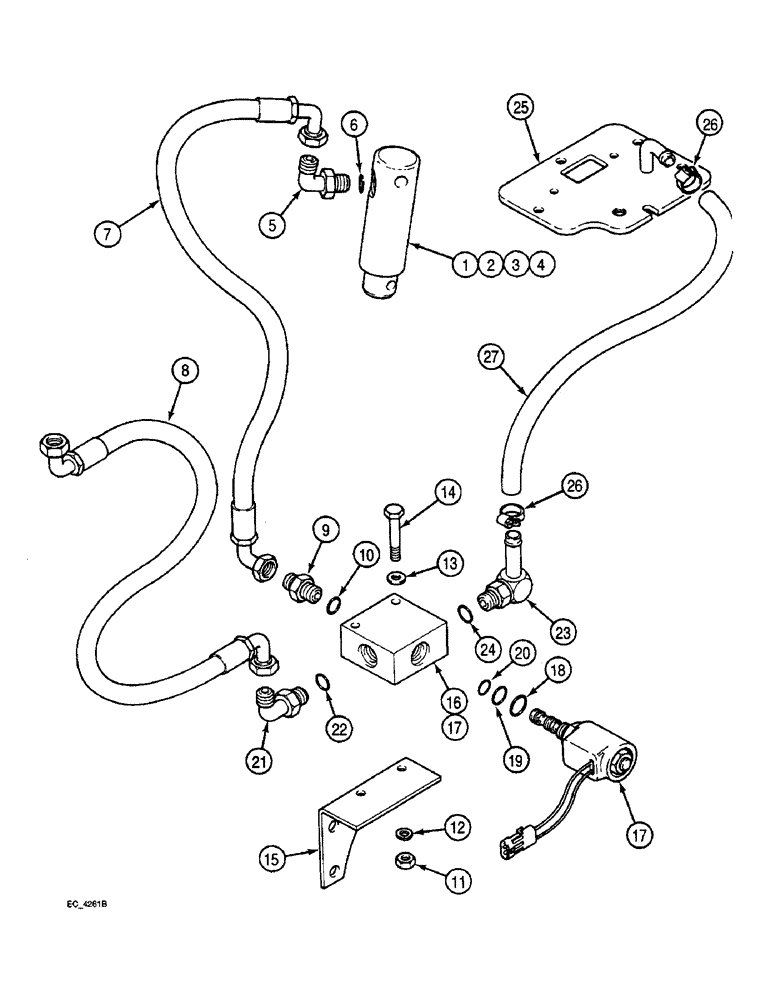

Запчасти Case IH 3220 (6-102) - DIFFERENTIAL LOCK CONNECTIONS, TRACTOR WITH CAB (06) - POWER TRAIN

1

NSS

NOT SOLD SEPARAT

CYLINDER ASSEMBLY diff lock, Iowa, Includes Ref. 2, 3 and 4

1шт.

2

196369A1

HYD CYL SLEEVE

BODY diff lock cylinder, Iowa

1шт.

3

196370A1

PISTON ROD

ROD diff lock cylinder, Iowa

1шт.

4

196371A1

SEAL KIT

KIT seal diff lock cylinder, Iowa

1шт.

1

139245A1

CYLINDER ASSY.

CYLINDER ASSEMBLY diff lock, Cascade, Includes Ref. 2, 3 and 4

1шт.

2

196525A1

HYD CYL SLEEVE

BODY diff lock cylinder, Cascade

1шт.

3

196526A1

PISTON ROD

ROD diff lock cylinder, Cascade

1шт.

4

196527A1

SEAL KIT

KIT seal diff lock cylinder, Cascade

1шт.

5

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj o-ring boss, Includes Ref. 6

1шт.

7

123180A2

HOSE

cylinder

1шт.

8

123580A2

HOSE

differential lock, solenoid

1шт.

9

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER straight, 9/16-18 inch flare x o-ring boss, Incl. Ref. 10

1шт.

11

825-1406

NUT,M6, Cl 8

2шт.

12

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

14

814-6045

BOLT,Hex, M6 x 1 x 45mm, Cl 8.8

2шт.

15

123563A1

SUPPORT

BRACKET solenoid mounting

1шт.

16

116242A1

SOLENOID

differential lock, Includes Ref. 17 - 20

1шт.

17

1971474C3

SOLENOID

differential lock, Includes Ref. 18, 19 and 20

1шт.

18

237-6007

O-RING,0.08" Thk x 0.53" ID, -907, Cl 6, 90 Duro

7/16 inch OD

1шт.

19

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

20

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

21

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj o-ring boss, Includes Ref. 22

1шт.

23

217-347

FITTING,90 Degree Elbow, 3/8" Hose Barb x 9/16" - 18 Male ORB

ELBOW 90 degree, 3/8 stem end x 9/16-18 inch adj o-ring boss

1шт.

25

125075A1

COVER ASSY

COVER drop response

1шт.

26

3125239R1

COLLAR

CLAMP hose

1шт.

27

125148A1

HYDRAULIC HOSE

HOSE ASSEMBLY solenoid, without assistor ram

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
