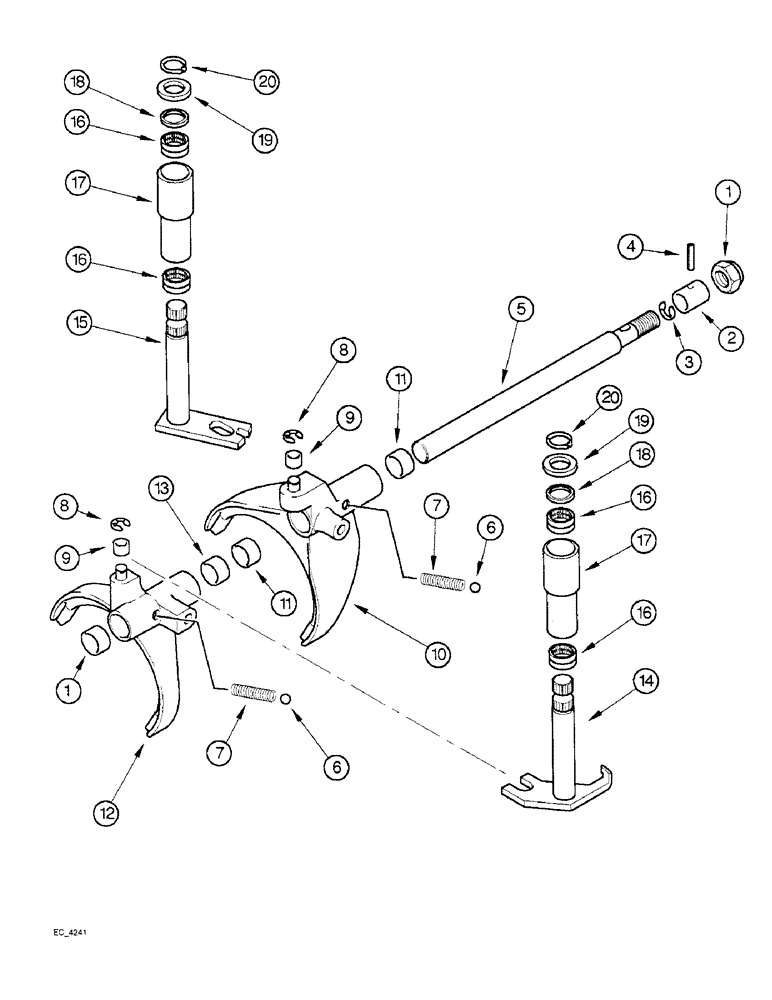

Запчасти Case IH 3220 (6-078) - TRANSMISSION CONTROL, INTERNAL (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
231-14412
LOCK NUT,3/4"-10, GB
NUT - hex lock, 3/4 inch NC
1шт.
2
115543A1
SLEEVE
BUSHING shift rail support
1шт.
3
115544A1
CIRCLIP
RING retaining crescent, 1.0 mm
1шт.
3
115545A1
CIRCLIP
RING retaining crescent, 0.9 mm
1шт.
3
115546A1
CIRCLIP
RING retaining crescent, 0.8 mm
1шт.
3
115547A1
CIRCLIP
RING retaining crescent, 0.7 mm
1шт.
3
115548A1
CIRCLIP
RING retaining crescent, 0.6 mm
1шт.
3
115549A1
CIRCLIP
RING retaining crescent, 0.5 mm
1шт.
4
38-31624
ROLL PIN,1/4" x 1 1/2", Coiled
PIN, ROLL, 1/4" x 1 1/2", Coiled
1шт.
5
115542A3
RAIL
range, shift
1шт.
6
211-1013
BALL,10.31mm OD, Gr 24
chrome alloy steel, 13/32 inch, grade 24
2шт.
7
128866A1
SPRING
poppet ball
2шт.
8
100-3344
SNAP RING,#X43, .438" Dia, E-Type
Ring, Retaining, #X43, .375" Dia, E-Type
2шт.
9
A178954
SLEEVE
shift fork pin
2шт.
10
115530A1
SHIFTER FORK
FORK ASSEMBLY rear, range shift, without cab
1шт.
10
115531A1
SHIFTER FORK
FORK ASSEMBLY rear, range shift, with cab, Includes Ref. 11
1шт.
11
3057214R1
BUSHING
2шт.
12
115527A1
SHIFTER FORK
FORK ASSEMBLY front, range shift, without cab
1шт.
12
115528A1
SHIFTER FORK
FORK ASSEMBLY front, range shift, with cab, Includes Ref. 13
1шт.
13
3057214R1
BUSHING
2шт.
14
115534A2
ARM ASSY.
ARM ASSEMBLY front, range shift, without cab
1шт.
14
115538A2
ARM ASSY.
ARM ASSEMBLY front, range shift, with cab
1шт.
14
115555A1
ARM ASSY.
ARM ASSEMBLY shift, hi/lo, with forward and reverse
1шт.
15
115536A2
ARM ASSY.
ARM ASSEMBLY rear, range shift, without cab
1шт.
15
115540A2
ARM ASSY.
ARM ASSEMBLY rear, range shift, with cab
1шт.
16
359955R91
BEARING, NEEDLE,Needle, 19.04mm ID x 25.4mm OD x 15.76mm W
BEARING needle
4шт.
17
115541A1
BUSHING
control pivot
2шт.
18
65457C1
SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk
oil
2шт.
19
A186416
WASHER, THRUST
WASHER thrust, race
2шт.
20
100-1168
SNAP RING,#68, Ext
Ring, Snap, #68, Ext
2шт.
Выбрано товаров: 30
