Запчасти Case IH 3220 (6-076) - TRANSMISSION SHIFT CONTROL, EXTERNAL, TRACTOR WITH CAB (06) - POWER TRAIN

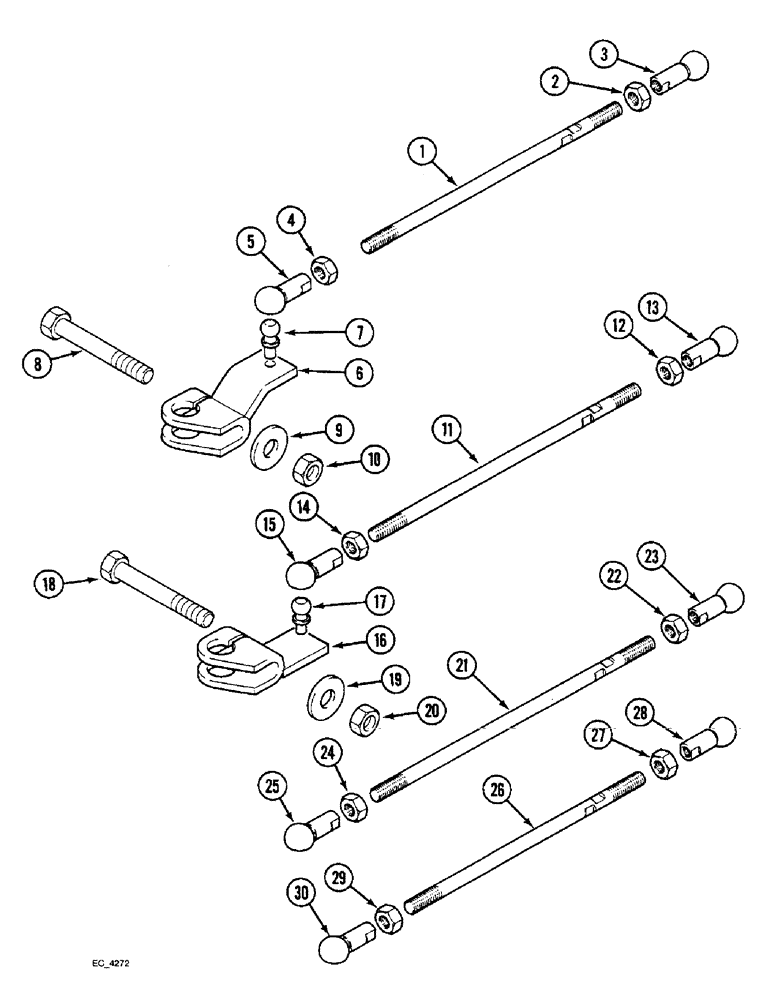

Схема запчастей Case IH 3220 - (6-076) - TRANSMISSION SHIFT CONTROL, EXTERNAL, TRACTOR WITH CAB (06) - POWER TRAIN
8
26
1
29
21
17
23
3
12
9
13
19
22
18
25
7
6
5
27
15
16
24
11
2
10
14
30
28
4
20

Артикул

Название

Примечание

Количество

117802A2

STEM

ROD ASSEMBLY range, lo/rev, without forward and reverse

1шт.

118559A3

STEM

ROD ASSEMBLY range, lo/hi, with forward and reverse, Includes Ref. 1 - 5

1шт.

1

117798A1

STEM

ROD ASSEMBLY range, lo/rev, without forward and reverse

1шт.

1

118560A2

STEM

ROD ASSEMBLY range, lo/hi, with forward and reverse

1шт.

2

906014R1

THIN NUT,Thin, M10 x 1.5, Cl 04, LH

hex, left hand thread, 10 mm

1шт.

3

125218A2

BALL JOINT

SOCKET ball joint, left hand thread, 10 mm

1шт.

4

934300R1

THIN NUT,Thin, M10 x 1.5, Cl 04

hex, 10 mm

1шт.

5

125217A2

BALL JOINT

SOCKET ball joint, 10 mm

1шт.

6

179150A3

LEVER ASSY.

LEVER ASSEMBLY range, lo/rev, Includes Ref. 7

1шт.

7

3234708R1

BALL STUD

BALL

1шт.

8

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

hex, 12 - 1.75 x 60 mm, class 10.9

1шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

10

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

1шт.

117803A2

STEM

ROD ASSEMBLY range, hi, without forward and reverse, Includes Ref. 11 - 15

1шт.

11

117799A1

STEM

ROD range, hi

1шт.

12

906014R1

THIN NUT,Thin, M10 x 1.5, Cl 04, LH

hex, left hand thread, 10 mm

1шт.

13

125218A2

BALL JOINT

SOCKET ball joint, left hand thread, 10 mm

1шт.

14

934300R1

THIN NUT,Thin, M10 x 1.5, Cl 04

hex, 10 mm

1шт.

15

125217A2

BALL JOINT

SOCKET ball joint, 10 mm

1шт.

16

179147A3

LEVER ASSY.

LEVER ASSEMBLY range, hi, Includes Ref. 17

1шт.

17

3234708R1

BALL STUD

BALL

1шт.

18

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

1шт.

19

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

20

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

1шт.

117804A2

STEM

ROD ASSEMBLY speed, 1/2, Includes Ref. 21 - 25

1шт.

21

117800A1

STEM

ROD range, 1/2

1шт.

22

906014R1

THIN NUT,Thin, M10 x 1.5, Cl 04, LH

hex, left hand thread, 10 mm

1шт.

23

125218A2

BALL JOINT

SOCKET ball joint, left hand thread, 10 mm

1шт.

24

934300R1

THIN NUT,Thin, M10 x 1.5, Cl 04

hex, 10 mm

1шт.

25

125217A2

BALL JOINT

SOCKET ball joint, 10 mm

1шт.

117805A2

STEM

ROD ASSEMBLY speed, 3/4, Includes Ref. 26 - 30

1шт.

26

117801A1

STEM

ROD range, 3/4

1шт.

27

906014R1

THIN NUT,Thin, M10 x 1.5, Cl 04, LH

hex, left hand thread, 10 mm

1шт.

28

125218A2

BALL JOINT

SOCKET ball joint, left hand thread, 10 mm

1шт.

29

934300R1

THIN NUT,Thin, M10 x 1.5, Cl 04

hex, 10 mm

1шт.

30

125217A2

BALL JOINT

SOCKET ball joint, 10 mm

1шт.

Выбрано товаров: 36
