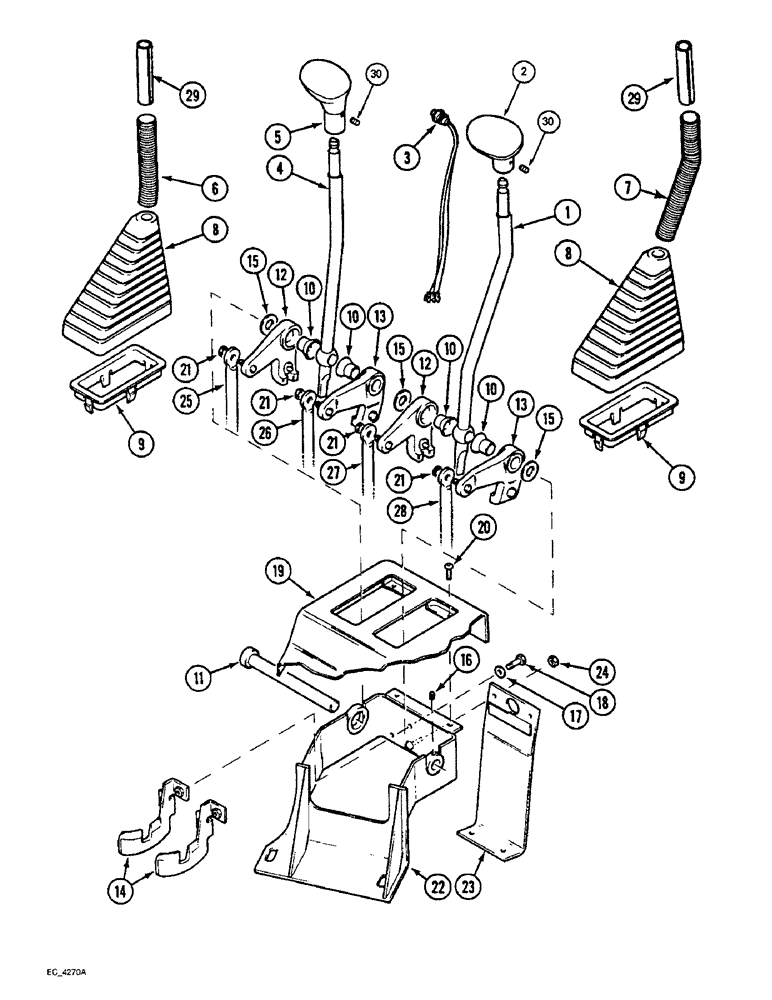

Запчасти Case IH 3220 (6-070) - TRANSMISSION SHIFT CONTROL, EXTERNAL, TRACTOR WITH CAB (06) - POWER TRAIN

1

138222A1

LEVER

speed shift

1шт.

2

118558A2

BALL KNOB

KNOB lever, without 2 speed power shift

1шт.

2

118557A2

BALL KNOB

KNOB lever, with 2 speed power shift

1шт.

3

127768A2

SWITCH

2 speed power shift

1шт.

4

139344A1

LEVER

range shift

1шт.

5

118551A2

BALL KNOB

KNOB lever, range, without forward and reverse

1шт.

5

118550A2

BALL KNOB

KNOB lever, range, with forward and reverse

1шт.

6

129421A2

LOOM

COVER range lever

1шт.

7

129423A2

LOOM

COVER speed lever

1шт.

8

1533271C1

BOOT

INSULATOR insulating

2шт.

9

1533264C1

FRAME

retaining, bellows

2шт.

10

T101960

BUSHING,14mm ID x 17mm OD x 20mm L

levers

4шт.

11

1533898C1

STUD,27mm OD x 160mm L

lever

1шт.

12

1534650C1

ARM

lever, left

2шт.

13

1999890C1

ARM ASSY.

ARM lever, right

2шт.

14

131748A1

SUPPORT ASSY.

HOLDER selector

2шт.

14

119799A2

SUPPORT

HOLDER selector, with forward and reverse

2шт.

15

T102056

WASHER

arm

3шт.

16

878-2068

SET SCREW,Hex Skt, M6 x 6mm, Cone Pt

SCREW hex, socket head, 6 mm x 8 mm

1шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

18

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

19

114732A5

COVER

CONSOLE side panel control

1шт.

20

540-704

SCREW,Cross Pan Hd, M6 x 16

- pan head, 6 x 16 mm

1шт.

21

T102202

CIRCLIP

RING retaining, external

4шт.

22

119234A1

SUPPORT ASSY.

BRACKET shift lever support

1шт.

23

122846A1

SUPPORT

BRACE support

1шт.

24

832-46406

NUT,M6 x 1, Cl 8

Nut, Lock, M6 x 1, Cl 8

2шт.

25

REF

INSTRUCTION

ROD ASSEMBLY range, See figure 6-072

1шт.

26

REF

INSTRUCTION

ROD ASSEMBLY range, lo/rev, See figure 6-072

1шт.

26

REF

INSTRUCTION

ROD ASSEMBLY range, hi/lo, with forward/reverse, See figure 6-072

1шт.

27

REF

INSTRUCTION

ROD ASSEMBLY control, 3/4 speed, See figure 6-072

1шт.

28

REF

INSTRUCTION

ROD control, 1/2 speed, See figure 6-072

1шт.

29

141302A2

HOSE,13 mm ID x 25.00 mm

SLEEVE

2шт.

30

878-2058

SET SCREW,Hex Skt, M5 x 8mm, Cone Pt

SCREW, 5 mm x 8 mm

2шт.
