Запчасти Case IH 3220 (6-064) - TRANSMISSION RANGE SHIFT CONTROL, TRACTOR WITHOUT CAB, WITH FORWARD AND REVERSE (06) - POWER TRAIN

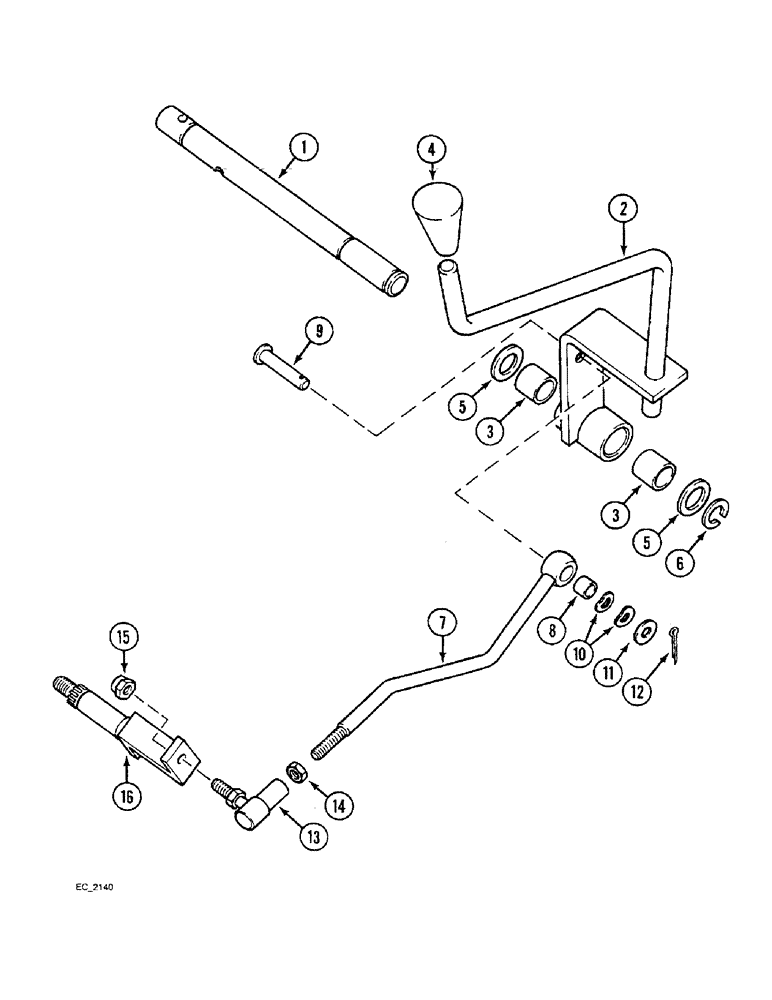

Схема запчастей Case IH 3220 - (6-064) - TRANSMISSION RANGE SHIFT CONTROL, TRACTOR WITHOUT CAB, WITH FORWARD AND REVERSE (06) - POWER TRAIN
2
14
3
6
11
7
13
9
15
1
5
8
16
4
12
10
3
5

Артикул

Название

Примечание

Количество

1

3129270R1

SHAFT

idle

1шт.

2

3129271R95

LEVER ASSY.

LEVER range shift, Includes Ref. 3

1шт.

3

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

housing

2шт.

4

1332762C1

BALL KNOB

KNOB range lever

1шт.

5

495-81048

WASHER,0.91" ID x 1.25" OD x 0.03" Thk

flat, 29/32 x 1-1/4 x 1/32 inch

2шт.

6

100-1187

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

1шт.

7

196022A1

ROD ASSY.

ROD range shift, rear, L/R, Includes Ref. 8

1шт.

8

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

rod end

1шт.

9

327-6121

CLEVIS PIN,9.53mm OD x 30.94mm L

PIN clevis, 3/8 x 1-7/32 inch

1шт.

10

83723R1

WAVE WASHER

spring

2шт.

11

495-81079

WASHER,1.03" ID x 2.5" OD x 0.12" Thk

flat, 13/32 x 3/4 x 1/64 inch

1шт.

12

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

13

1500497C1

BALL JOINT

JOINT ball, 7/16 inch

1шт.

14

1500536C1

JAM NUT

hex, jam 7/16 inch NF

1шт.

15

231-4617

LOCK NUT,7/16"-20, GB

NUT hex lock, 7/16 inch NF

1шт.

16

1536518C1

ARM ASSY.

ARM ASSEMBLY range shift, L/R

1шт.

Выбрано товаров: 16
