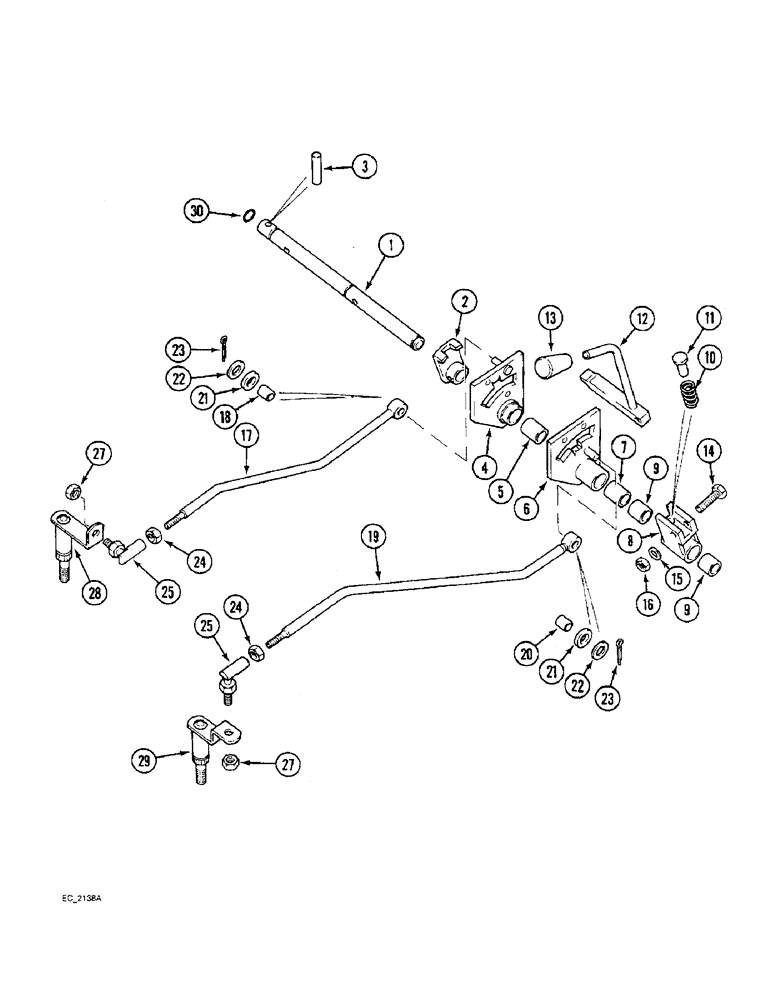

Запчасти Case IH 3220 (6-060) - TRANSMISSION SPEED SHIFT CONTROL, TRACTOR WITHOUT CAB (06) - POWER TRAIN

1

3129155R2

SHAFT

idle, range shift lever, without forward and reverse

1шт.

1

3129270R1

SHAFT

idle, range shift lever, with forward and reverse

1шт.

2

3129218R2

PLATE

GATE ASSEMBLY shift

1шт.

3

38-32028

PIN,7.92mm OD x 44.45mm L

2шт.

4

3129211R92

LEVER

ASSEMBLY speed shift, 1st/2nd, Includes Ref. 5

1шт.

5

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

lever

1шт.

6

3129217R92

LEVER

ASSEMBLY speed shift, 3rd/4th, Includes Ref. 7

1шт.

7

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

lever

1шт.

8

3129214R93

HOUSING ASSY.

HOUSING ASSEMBLY selector arm, Includes Ref. 9

1шт.

9

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

housing

2шт.

10

71486C1

SPRING

compression

1шт.

11

439-158

HEADED PIN,5/16" x 1/2"

PIN headed, 5/16 x 1/2 inch, grade 2

1шт.

12

3129265R5

LEVER

ASSEMBLY speed shift

1шт.

13

1265215C1

BALL KNOB

KNOB speed shift lever

1шт.

14

1282929C1

BOLT,Hex, 3/8" - 16 x 6"

- Selector arm pivot

1шт.

15

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16") 3/8"

1шт.

16

231-4116

NUT,3/8"-16, GB

NUT hex, self-locking, 3/8 inch NC

1шт.

17

3129222R91

ROD ASSY.

ROD ASSEMBLY speed shift, Includes Ref. 18

1шт.

18

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

rod end

1шт.

19

3129226R92

ROD ASSY.

ROD ASSEMBLY speed shift, 3rd/4th, Includes Ref. 20

1шт.

20

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

rod end

1шт.

21

83723R1

WAVE WASHER

spring

2шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

2шт.

23

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

24

1500536C1

JAM NUT

hex, jam 7/16 inch NF

2шт.

25

1500497C1

BALL JOINT

JOINT ball, 7/16 inch

2шт.

27

231-4617

LOCK NUT,7/16"-20, GB

NUT hex, lock, 7/16 inch NF

2шт.

28

3129166R1

ARM ASSY.

ARM ASSEMBLY speed shift actuating, 1st/2nd

1шт.

29

3129172R2

ARM ASSY.

ARM ASSEMBLY speed shift actuating, 3rd/4th

1шт.

30

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.
