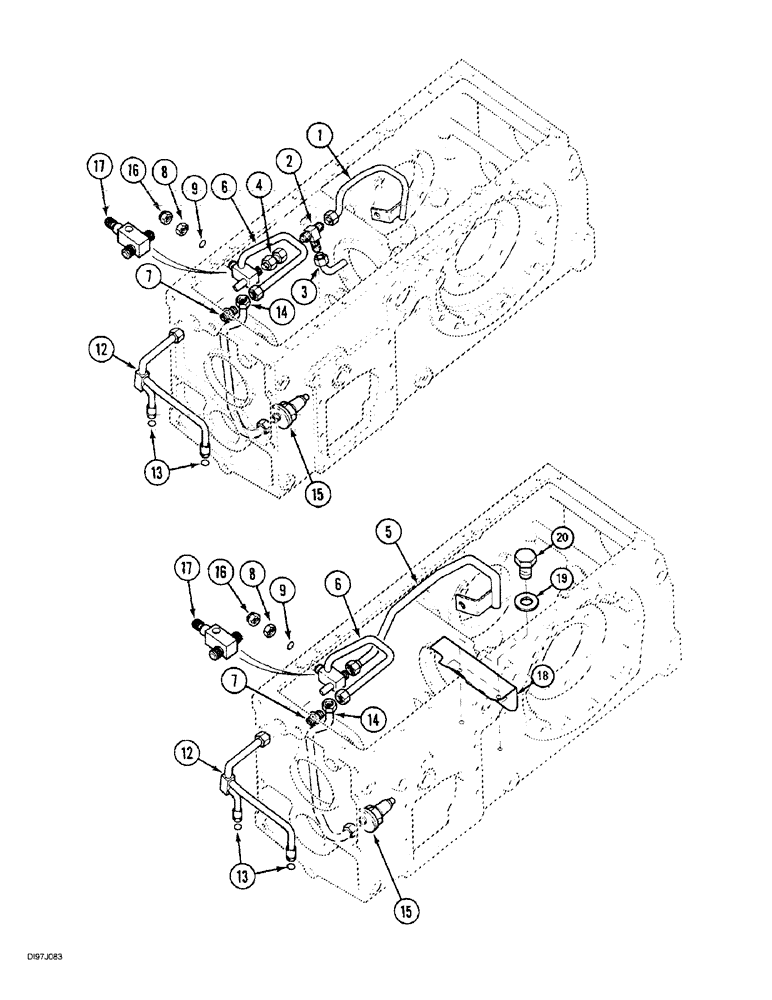

Запчасти Case IH 3220 (6-036) - TRANSMISSION LUBRICATION SYSTEM, 2 WHEEL DRIVE TRACTORS (06) - POWER TRAIN

1

128870A2

PIPE

TUBE ASSEMBLY pinion, lube

1шт.

2

116660A1

PIPE

UNION check valve tee

1шт.

3

116658A3

PIPE,12.7 mm OD, 67, 52 mm Length

TUBE ASSEMBLY lube

1шт.

4

128868A2

PIPE,12.7 mm OD, 70 mm Length

TUBE ASSEMBLY range lube jumper

1шт.

6

144450A2

FITTING

UNION manifold lube, without cab

1шт.

7

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4 inch NF flare x o-ring boss, without cab

1шт.

8

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

176487A1

PIPE,12.7 - 9.52 mm OD

TUBE ASSEMBLY slip fitting

1шт.

13

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

14

115570A3

PIPE

transfer pump outlet, lube

1шт.

15

116636A2

PUMP, HYDRAULIC,10.39 CC

PUMP ASSEMBLY oil transfer

1шт.

16

218-755

CAP,37 Degree, 3/4"-16

Blanking (without cab) 37º, 3/4"-16

1шт.

17

144451A1

FITTING

UNION manifold lube, with cab

1шт.

18

256240A1

HOUSING

SHIELD oil inlet

1шт.

19

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

flat, 6.6 x 12.5 x 2 mm, hardened

2шт.

20

628-6012

BOLT,Hex, M6 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

2шт.

5

115581A1

PIPE,12.7 mm OD, 359, 96 mm Length

TUBE ASSEMBLY pinion lube, MFD tractors

1шт.

6

144450A2

FITTING

UNION manifold lube, without cab, MFD tractors

1шт.

7

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4 inch NF flare x o-ring boss, without cab, MFD tractors

1шт.

8

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, , MFD tractors Blkhd, 3/4"-16

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, MFD tractors

1шт.

12

176487A1

PIPE,12.7 - 9.52 mm OD

TUBE ASSEMBLY slip fitting, MFD tractors

1шт.

13

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk, MFD tractors

1шт.

14

115570A3

PIPE

transfer pump outlet, lube, MFD tractors

1шт.

15

116636A2

PUMP, HYDRAULIC,10.39 CC

PUMP ASSEMBLY oil transfer, MFD tractors

1шт.

16

218-755

CAP,37 Degree, 3/4"-16

Blanking (without cab), MFD tractors 37º, 3/4"-16

1шт.

17

144451A1

FITTING

UNION manifold lube, with cab, MFD tractors

1шт.

18

256240A1

HOUSING

SHIELD oil inlet, MFD tractors

1шт.

19

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

flat, 6.6 x 12.5 x 2 mm, hardened, MFD tractors

2шт.

20

628-6012

BOLT,Hex, M6 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9, MFD tractors

2шт.
