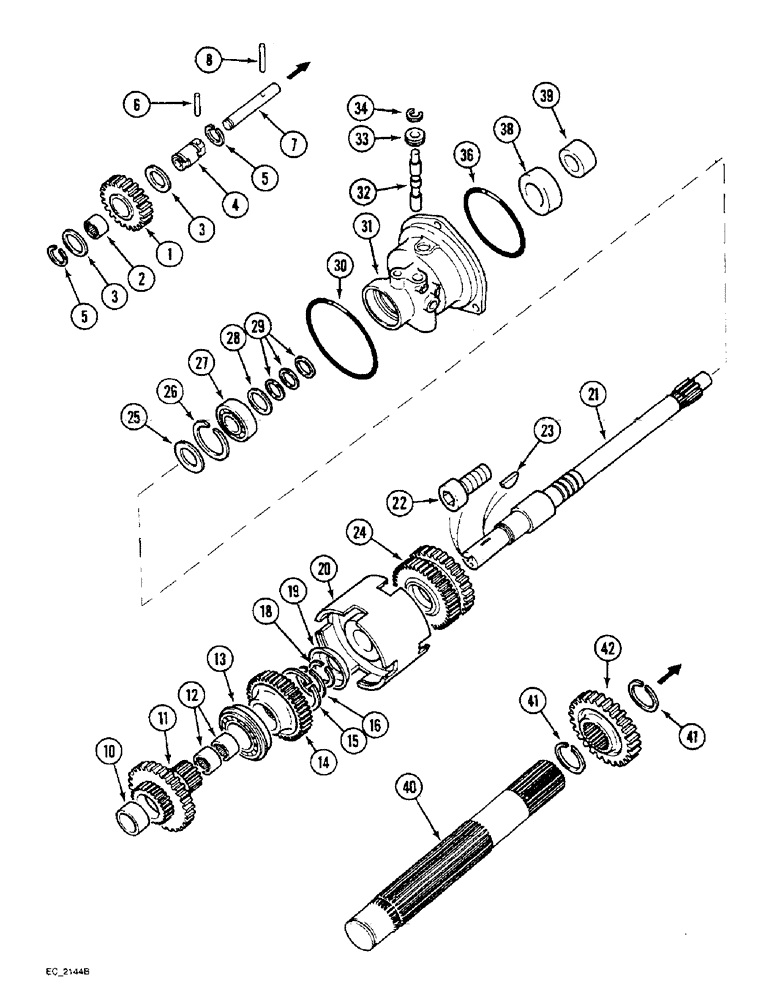

Запчасти Case IH 3220 (6-026) - SPEED TRANSMISSION, FORWARD AND REVERSE ATTACHMENT (06) - POWER TRAIN

1

527776R1

PINION

GEAR forward/reverse idler, 23 teeth

1шт.

2

G10642

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 19.05mm W

BEARING needle

1шт.

3

527772R1

WASHER

forward/reverse idler gear

2шт.

4

527775R2

SLEEVE

idler gear

1шт.

5

362260R1

RING, SNAP

RING retainer

2шт.

6

38-11416

LOCK PIN,7/32" x 1", Slotted

Pin, 7/32" x 1", Slotted

1шт.

7

527774R1

SHAFT

forward/reverse idler

1шт.

8

38-31220

PIN,4.75mm OD x 31.75mm L, Coiled

1шт.

10

531168R91

BEARING, NEEDLE,Needle, 34.91mm ID x 44.44mm OD x 15.88mm W

BEARING needle

1шт.

11

404200R3

PINION

GEAR direct drive hub, 28 teeth

1шт.

12

A12652

NEEDLE BEARING,1" ID x 1.251" OD x 0.75"

BEARING needle

2шт.

13

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING ball

1шт.

14

404199R3

SPROCKET ASSY.

CARRIER direct drive clutch disc

1шт.

15

70244C1

RING, SNAP

RING snap

1шт.

16

101-11175

SNAP RING,#175, 1.640", Ext

RING clutch release spring return, 1.64 inch

1шт.

92758C91

PACKAGE

KIT service, Includes Ref. 18 - 23

1шт.

18

101-11125

SNAP RING,#125, 1.179", Ext

RING retaining, external, 1.179 inch

1шт.

19

70020C1

SLINGER

direct drive clutch

1шт.

19a

103-11125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.

20

70015C1

CAGE

CUP direct drive clutch, See figure 6-028

1шт.

21

92756C91

SHAFT

clutch

1шт.

22

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW set, hex socket headless, 1/4 NC x 1/4 inch, cup point

2шт.

22

1345890C1

PLUG

sealing, 5 mm

1шт.

23

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

24

527763R3

PINION

GEAR drive, 28 teeth

1шт.

25

527767R1

THRUST WASHER

WASHER thrust

1шт.

26

T17410

SNAP RING,M62 x 1.58mm Thk, Int

RING retaining

1шт.

27

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

BEARING ball

1шт.

28

3112664R1

SNAP RING

RING retaining

1шт.

29

85038C1

SEALING RING,27.15mm ID x 30.4mm OD x 2.29mm Thk

clutch shaft piston

3шт.

30

238-6252

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

1шт.

31

115203A3

BALL RACE

CAGE ASSEMBLY IPTO and clutch cup retainer

1шт.

32

536974R1

STEM

forward

1шт.

33

531539R1

COLLAR

control stem

1шт.

34

100-3437

SNAP RING,#37, Ext

RING, SNAP, #37, Ext

1шт.

36

238-5240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

1шт.

38

114321A1

OIL SEAL

oil, IPTO drive shaft

1шт.

39

108982C1

OIL SEAL

SEAL oil

1шт.

40

404104R3

SHAFT

counter

1шт.

41

101-11187

SNAP RING,#187, 1.759", Ext

RING retaining, external

2шт.

42

527771R1

PINION

GEAR forward/reverse driven 31 teeth

1шт.
