Запчасти Case IH 3220 (6-010) - CLUTCH HOUSING TOP COVER, TRACTOR WITH CAB (06) - POWER TRAIN

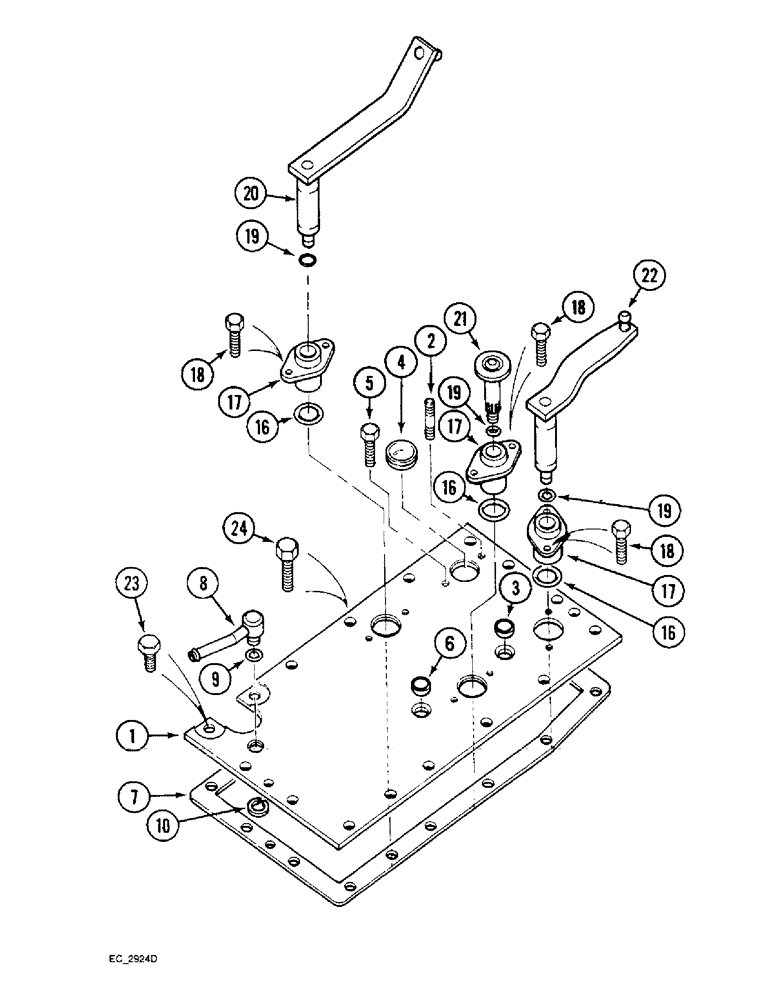

Схема запчастей Case IH 3220 - (6-010) - CLUTCH HOUSING TOP COVER, TRACTOR WITH CAB (06) - POWER TRAIN
18
7
24
19
17
18
2
22
8
21
4
18
10
6
17
17
9
20
16
19
1
5
23
16
3
16
19

Артикул

Название

Примечание

Количество

127429A1

COVER ASSY

COVER ASSEMBLY, with 2 speed power shift or standard transmission, Order components

1шт.

127432A1

COVER ASSY

COVER ASSEMBLY, with creeper, Order components

1шт.

127430A1

COVER ASSY

COVER ASSEMBLY, with forward and reverse, Order components, Includes Ref. 1 - 6

1шт.

1

1288495C1

COVER

with 2 speed power shift or standard transmission

1шт.

1

1343282C1

COVER

with creeper

1шт.

1

1343125C1

COVER

with forward and reverse

1шт.

2

3129159R1

STUD

top cover

1шт.

3

41-1612

PLUG,Cup, 3/4", Stainless

1шт.

4

41-1620

PLUG,Cup, 1 1/4", Stainless

cup, 1-1/4 inch diameter

2шт.

5

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

4шт.

6

41-108

PLUG,Cup, 1/2"

cup, 1/2 inch diameter

1шт.

7

1970894C1

GASKET

clutch housing top cover, without creeper

1шт.

7

1970895C1

GASKET

clutch housing top cover, with creeper

1шт.

8

3129197R1

PIPE

TUBE brake line dump

1шт.

8

1343144C1

PIPE

HOSE brake reservoir dump, forward and reverse

1шт.

9

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

10

100-1168

SNAP RING,#68, Ext

Ring, Snap, #68, Ext

1шт.

16

238-6024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

3шт.

17

3129165R2

HOUSING

speed shift arm

3шт.

18

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

6шт.

19

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

20

115905A1

ARM ASSY.

ARM speed shift actuating, 3rd/4th

1шт.

21

1277030C1

PIVOT ASSY.

PIVOT interlock

1шт.

22

115903A1

ARM ASSY.

ARM speed shift actuating, 1st/2nd

1шт.

23

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

24

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

14шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

2шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

14шт.

Выбрано товаров: 28
