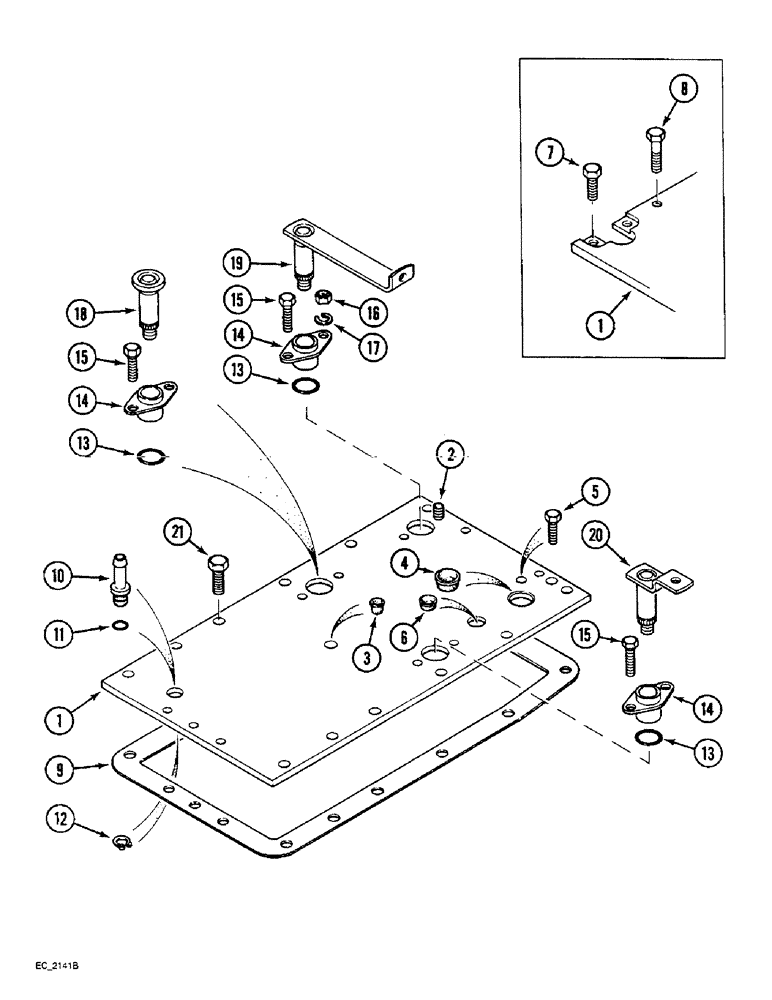

Запчасти Case IH 3220 (6-008) - CLUTCH HOUSING TOP COVER, TRACTOR WITHOUT CAB (06) - POWER TRAIN

127429A1

COVER ASSY

COVER ASSEMBLY, with 2 speed power shift or standard transmission, Order components

1шт.

127432A1

COVER ASSY

COVER ASSEMBLY, with creeper, Order components

1шт.

127431A1

COVER ASSY

COVER ASSEMBLY, with forward and reverse, Order components, Includes Ref. 1 - 6

1шт.

1

1288495C1

COVER

with 2 speed power shift or standard transmission

1шт.

1

1343282C1

COVER

with creeper

1шт.

1

99496C1

COVER

with forward and reverse

1шт.

2

3129159R1

STUD

top cover

1шт.

3

41-108

PLUG,Cup, 1/2"

cup, 1/2 inch diameter

1шт.

4

41-1620

PLUG,Cup, 1 1/4", Stainless

cup, 1-1/4 inch diameter

2шт.

5

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

4шт.

6

41-1612

PLUG,Cup, 3/4", Stainless

1шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

14шт.

9

1970894C1

GASKET

clutch housing top cover, without creeper

1шт.

9

1970895C1

GASKET

clutch housing top cover, with creeper

1шт.

10

3129200R1

ADAPTER

ADAPTOR brake return hose

1шт.

11

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

12

100-1168

SNAP RING,#68, Ext

Ring, Snap, #68, Ext

1шт.

13

238-6024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

3шт.

14

3129165R2

HOUSING

speed shift arm

3шт.

15

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

5шт.

16

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

17

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

18

1277030C1

PIVOT ASSY.

PIVOT interlock

1шт.

19

3129166R1

ARM ASSY.

ARM ASSEMBLY speed shift actuating, 1st/2nd

1шт.

20

3129172R2

ARM ASSY.

ARM ASSEMBLY speed shift actuating, 3rd/4th

1шт.

21

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

16шт.
