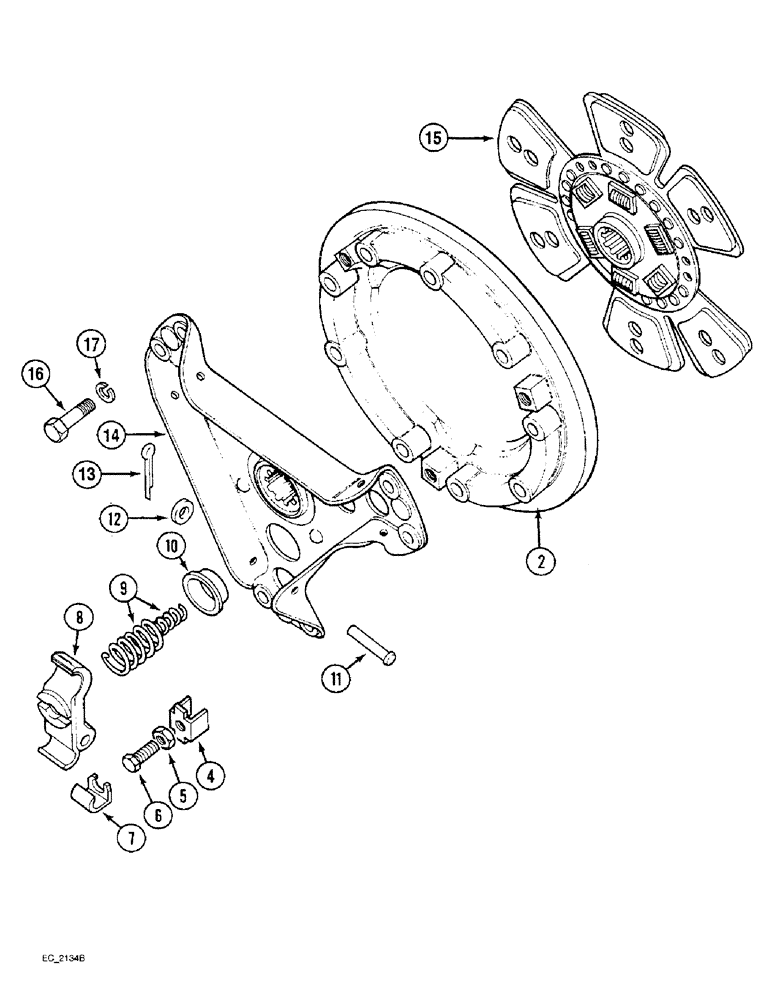

Запчасти Case IH 3220 (6-002) - CLUTCH, LAYCOCK 11 INCH (06) - POWER TRAIN

1944250C2

REMAN-CLUTCH PLATE

Plate Assembly clutch pressure, remanufactured

1шт.

1944251C1

CORE-CLUTCH PLATE

Return Part Number, clutch pressure plate

1шт.

92602C92

CLUTCH ASSEMBLY

COVER ASSY clutch pressure plate, Includes Ref. 2 - 14

1шт.

92602C92R

REMAN-CLUTCH PLATE,Pressure Plate Only

Remanufactured, Clutch Plate, 11 in, 10 Tooth Hub,

1шт.

92602C92C

CORE-CLUTCH PLATE

Return Part Number

1шт.

389767A1

REMAN-CLUTCH KIT

3220, 3230, Kit includes: 1 - 92602C92R Disc, 1 - 293248A1R Plate, 1 - 537290R91 Bearing, 1 - 85104C92 Bearing

1шт.

389767A1C

CORE-CLUTCH KIT

Return Part Number

1шт.

102813A1

CLUTCH, PRESSURE PLA

Plate drive, pressure assembly, Includes Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE pressure, Order kit 102813A1

1шт.

102811A1

PACKAGE, REPAIR

PACKAGE adjusting screw and clip, Includes Ref. 4 - 13

1шт.

4

NSS

NOT SOLD SEPARAT

CLIP lug, Order kit 102811A1

3шт.

5

NSS

NOT SOLD SEPARAT

NUT lock, adjusting screw, Order kit 102811A1

3шт.

6

NSS

NOT SOLD SEPARAT

SCREW adjusting, Order kit 102811A1

3шт.

7

NSS

NOT SOLD SEPARAT

CLIP return, Order kit 102811A1

3шт.

8

NSS

NOT SOLD SEPARAT

LEVER release

3шт.

Part of release lever package P/N 102812A1

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING pressure, Order kit 102811A1

3шт.

10

NSS

NOT SOLD SEPARAT

CUP spring, Order kit 102811A1

3шт.

11

NSS

NOT SOLD SEPARAT

PIN pivot

3шт.

Part of release lever package P/N 102812A1

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER flat

3шт.

Part of release lever package P/N 102812A1

1шт.

13

NSS

NOT SOLD SEPARAT

PIN cotter

3шт.

Part of release lever package P/N 102812A1

1шт.

14

NSS

NOT SOLD SEPARAT

BRACKET ASSEMBLY clutch, Order 92602C92

1шт.

15

3121507R95

CLUTCH DISC

CLUTCH DISK PLATE ASSEMBLY clutch driven disc

1шт.

15

293248A1R

REMAN-CLUTCH DISC

3220 Aft. SN 11070000, 3230, Reman For New P/N 3121507R95

1шт.

15

293248A1C

CORE-CLUTCH DISC

Return Part Number

1шт.

15

1944253C1

REMAN-CLUTCH PLATE

Plate Assembly clutch driven disc

1шт.

15

1944254C1

DRIVEN PLATE

Return Part Number clutch driven disc plate

1шт.

16

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

BOLT, Hex, 5/16"-18 x 7/8", G5, Full Thd

6шт.

17

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

102812A1

PACKAGE, REPAIR

PACKAGE release lever, Includes Ref. 8, 11, 12 and 13

1шт.
