Запчасти Case IH 3220 (5-040) - MECHANICAL FRONT DRIVE, STEERING CYLINDER AND TIE RODS (05) - STEERING

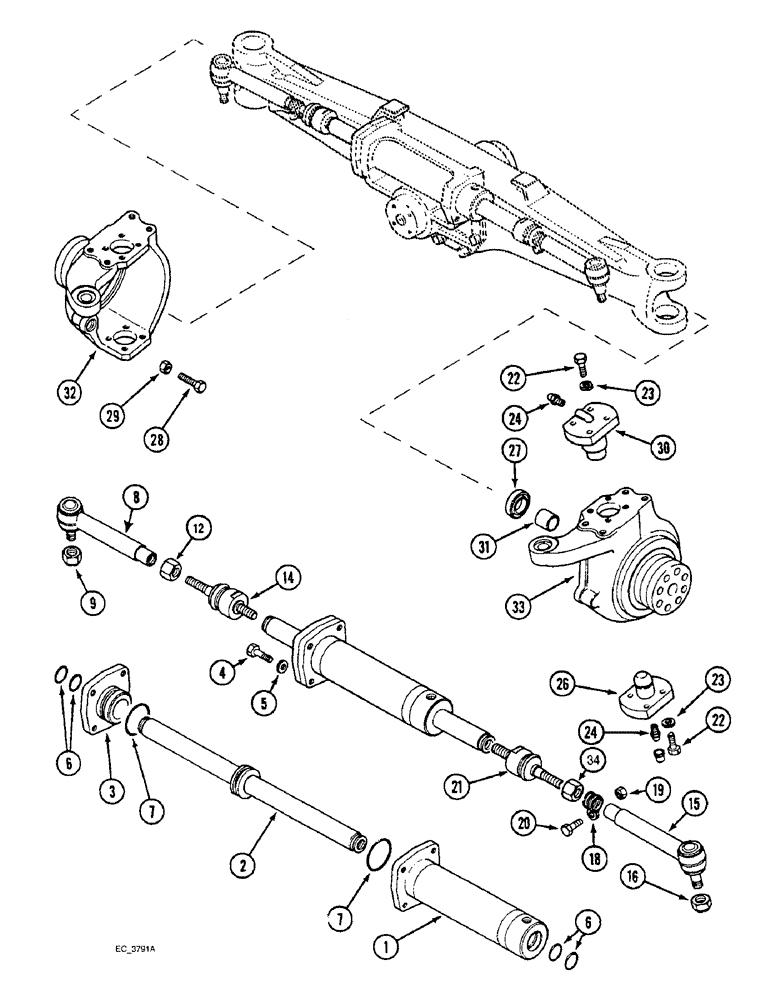

Схема запчастей Case IH 3220 - (5-040) - MECHANICAL FRONT DRIVE, STEERING CYLINDER AND TIE RODS (05) - STEERING
16
6
22
5
1
8
23
26
27
23
9
29
24
6
2
24
7
4
3
22
14
34
7
12
15
21
19
32
33
18
20
31
30
28

Артикул

Название

Примечание

Количество

1537617C1

STEERING CYLINDER

CYLINDER ASSEMBLY steering, Includes Ref. 1 - 6

1шт.

1537617C1R

REMAN-HYD CYLINDER

3220 (AFTER S/N 11070000), 3230, Both CASE IH TRACTOR (NORTH AMERICA), CYLINDER ASSEMBLY steering (1/94-12/98)

1шт.

1537617C1C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

CYLINDER, Order 1537617C1

1шт.

2

NSS

NOT SOLD SEPARAT

ROD order 1537617C1

1шт.

3

1537616C1

WHEEL CYLINDER

HEAD cylinder

1шт.

4

114296A1

BOLT

BOLT self-locking, special, 12 x 50 mm

4шт.

5

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

1537615C1

SEAL KIT

PACKAGE seals, Includes Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING

4шт.

7

NSS

NOT SOLD SEPARAT

SEAL

4шт.

1537619C2

STEERING ARM

ROD ASSEMBLY steering, left hand thread, Includes Ref. 8 - 14

1шт.

8

137047A1

BALL JOINT

JOINT ball, left hand thread

1шт.

9

905839R1

LOCK NUT,M18 x 1.5, Thin

NUT hex, self-locking, 18 x 1.5 mm

1шт.

12

112507A1

NUT

hex

1шт.

14

1966127C1

BALL JOINT

JOINT ball, left hand thread, Includes Ref.

1шт.

1537620C2

STEERING ARM

ROD ASSY steering, Includes Ref. 15 - 21

1шт.

15

137048A1

BALL JOINT

JOINT ball, right hand thread

1шт.

16

905839R1

LOCK NUT,M18 x 1.5, Thin

NUT hex, self-locking, 18 x 1.5 mm

1шт.

18

1537613C1

CLAMP

1шт.

19

934727R1

THIN NUT,Thin, M18 x 1.5, Cl 04

hex, special

1шт.

20

1537614C1

SCREW

1шт.

21

1966125C1

BALL JOINT

JOINT ball, right hand thread

1шт.

22

100533A1

BOLT,Self-Lock, M12 x 30mm

hex, special, 12 - 1.75 x 30 mm

16шт.

23

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

16шт.

24

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, M6 x 1, 16mm lg

4шт.

26

122264A1

PIN

King

2шт.

27

100529A1

OIL SEAL,45mm ID x 65mm OD x 12mm Thk

SEAL oil

2шт.

28

1537664C1

BOLT,M16 x 100mm

BOLT special

2шт.

29

85805986

NUT,M16

2шт.

30

122265A1

PIN,35mm / 45mm OD x 45.5mm L

King

2шт.

31

100532A1

BUSHING

2шт.

32

137049A1

HOUSING

swivel, left

1шт.

33

137050A1

HOUSING

swivel, right

1шт.

Выбрано товаров: 34
