Запчасти Case IH 2856 (L-11[A]) - WHEELS AND WHEEL WEIGHTS, REAR WHEEL WEIGHTS, SPLIT TYPE, FARMALL TRACTORS Wheels & Wheel Weights

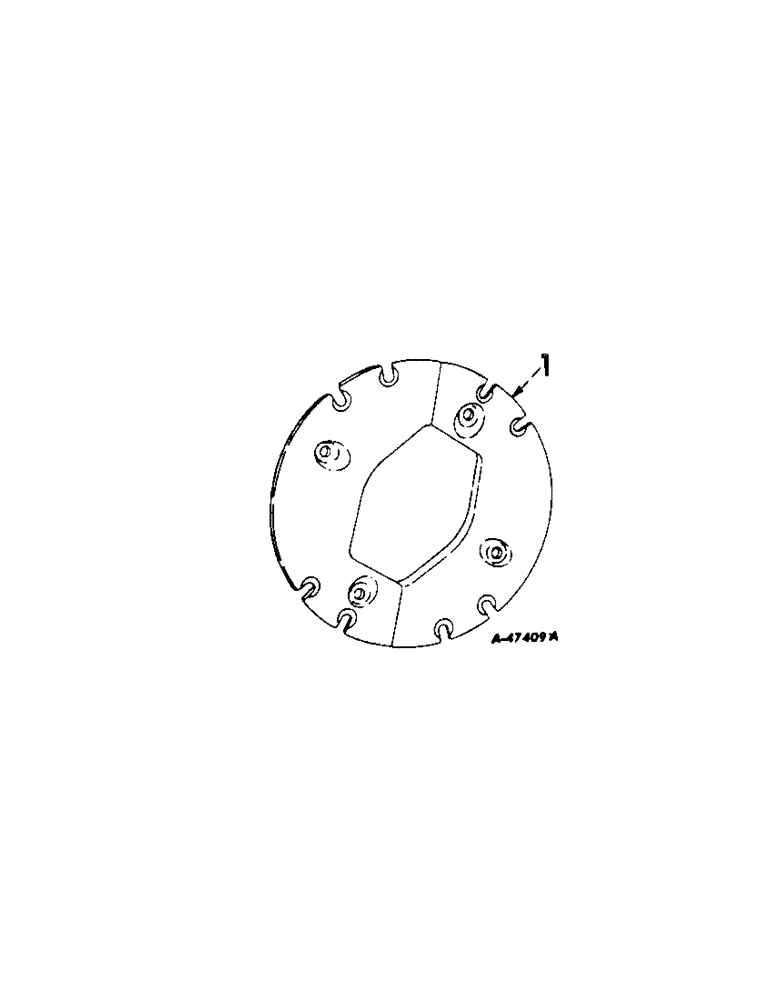

Схема запчастей Case IH 2856 - (L-11[A]) - WHEELS AND WHEEL WEIGHTS, REAR WHEEL WEIGHTS, SPLIT TYPE, FARMALL TRACTORS Wheels & Wheel Weights
1

Артикул

Название

Примечание

Количество

1

400078R1

WHEEL WEIGHT

WEIGHT, rear wheel, half, approx 75 lbs, first position

4шт.

401919R1

BOLT,3/4" - 10 x 9 1/2"

rear wheel weight, used W/30 in. heavy duty wheels

8шт.

375116R1

BOLT,3/4" - 10 x 4"

rear wheel weight, used W/34 & 38 in. standard wheels

8шт.

401918R1

BOLT (SPREADER),3/4" - 10 x 6 1/2"

BOLT, rear wheel weight, used W/34 & 38 in. heavy duty wheels

8шт.

366110R1

BOLT,Sq Hd, 3/4" - 10 x 4 3/4"

rear wheel weight, for power adjusted rear wheels

8шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 C-Z hex. jam

8шт.

280954

NUT,3/4"-10, G5

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

1

400078R1

WHEEL WEIGHT

WEIGHT, rear wheel, half, approx 75 lbs, second or third position

4шт.

366111R1

BOLT,Sq Hd, 3/4" - 10 x 3 1/4"

rear wheel weight

8шт.

280954

NUT,3/4"-10, G5

8шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 C-Z hex. jam

8шт.

366112R1

WASHER

11/32 x 1-1/4 x 11 ga

16шт.

Выбрано товаров: 13
