Запчасти Case IH 2856 (L-09) - WHEELS AND WHEEL WEIGHTS, REAR WHEELS Wheels & Wheel Weights

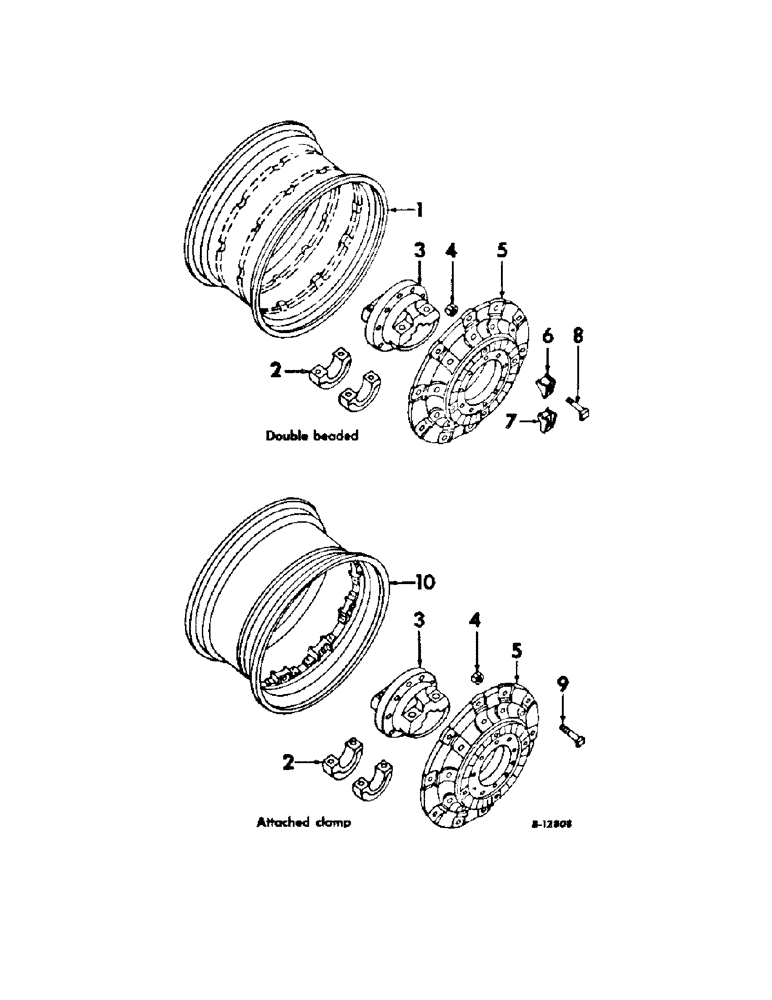

Схема запчастей Case IH 2856 - (L-09) - WHEELS AND WHEEL WEIGHTS, REAR WHEELS Wheels & Wheel Weights
5
2
1
9
2
7
3
10
6
3
4
8
5
4

Артикул

Название

Примечание

Количество

1

380867R1

RIM

rear wheel, W15L-34 rim for 16.9-34 tire

2шт.

1

380868R1

RIM

rear wheel, W16L-34 rim for 18.4-34 tire

2шт.

1

392032R1

RIM

rear wheel, W15L-38 rim for 16.9-38 tire

2шт.

1

392031R1

RIM

rear wheel, W16L-38 rim for 18.4-38 tire

2шт.

2

380863R2

COLLAR

CLAMP, rear wheel hub

4шт.

385784R11

STUD

STUD W/NUT ASSY, rear wheel hub clamp

8шт.

384697R1

WASHER

rear wheel hub clamp stud

8шт.

3

380861R2

HUB, rear wheel

2шт.

271614

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 hex-hd cap

20шт.

4

352536R1

NUT

rear wheel rim clamp bolt, 20 for 30 in. wheels

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

20шт.

4

352536R1

NUT

rear wheel rim clamp bolt, 24 for 34 in. wheels

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

24шт.

5

380855R1

WHEEL, 30 in. rear

2шт.

5

380858R1

WHEEL, 34 in. rear

2шт.

5

392020R1

WHEEL

38 in. rear

2шт.

6

380870R1

CLAMP

rear wheel rim, 16 for in. wheels

1шт.

6

380870R1

CLAMP

rear wheel rim, 20 for 34 in. wheels

1шт.

7

397251R1

CLAMP

rear wheel rim fixed

4шт.

8

380878R1

BOLT (SPREADER),Sq Hd, 3/4" - 16 x 2 3/4"

BOLT, rear wheel rim clamp, 20 for 30 in. wheels

1шт.

8

380878R1

BOLT (SPREADER),Sq Hd, 3/4" - 16 x 2 3/4"

BOLT, rear wheel rim clamp, 24 for 34 in. wheels

1шт.

9

384070R1

WHEEL BOLT,Sq Hd, 3/4" - 16 x 4 1/2"

BOLT, rear wheel rim mounting, 20 for 30 in. wheels

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

20шт.

9

384070R1

WHEEL BOLT,Sq Hd, 3/4" - 16 x 4 1/2"

BOLT, rear wheel rim mounting, 24 for 34 in. wheels

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

24шт.

10

384068R91

RIM

ASSY, rear wheel, DW20-30 rim for 23.1-30 tire

2шт.

10

384069R91

RIM ASSY, rear wheel, DW20-34 rim for 23.1-34 tire

2шт.

373941R2

SOCKET WRENCH

WRENCH, 1-5/16 box

1шт.

Выбрано товаров: 28
