Запчасти Case IH 2856 (L-09[A]) - REAR WHEELS, INTERNATIONAL TRACTORS WITH 26 INCH WHEELS Wheels & Wheel Weights

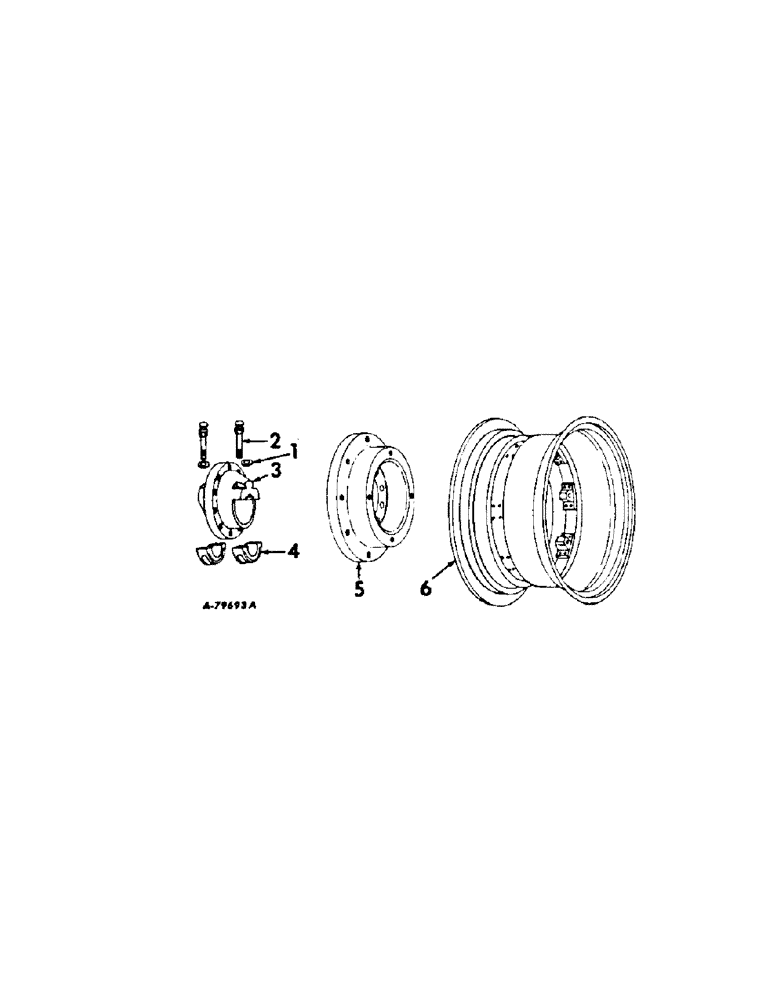

Схема запчастей Case IH 2856 - (L-09[A]) - REAR WHEELS, INTERNATIONAL TRACTORS WITH 26 INCH WHEELS Wheels & Wheel Weights
5
6
4
1
2
3

Артикул

Название

Примечание

Количество

1

384697R1

WASHER

hub clamp stud

8шт.

2

385784R11

STUD

STUD ASSY, hub clamp

8шт.

3

380861R2

HUB, rear wheel

2шт.

4

380863R2

COLLAR

CLAMP, hub

4шт.

5

37296CR2

WHEEL, rear

2шт.

271624

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

SCREW, 3/4-10 x 2-3/4 hex-hd cap

20шт.

6

372602R91

RIM ASSY, rear wheel, DW16-26 rim for 23.1-26 tires

2шт.

6

375430R91

RIM

ASSY, rear wheel, DW20-26 rim for 23.1-26 tires

2шт.

271779

STRIP,Hex, 3/4" - 10 x 4", Gr 5

SCREW, 3/4-10 x 4 C-Z hex-hd cap

16шт.

575813R1

WASHER

25/32 x 1-1/4 x 11 ga

16шт.

373941R2

SOCKET WRENCH

WRENCH, 1-5/16 box

1шт.

Выбрано товаров: 11
