Запчасти Case IH 2856 (L-02) - WHEELS AND WHEEL WEIGHTS, FRONT WHEELS Wheels & Wheel Weights

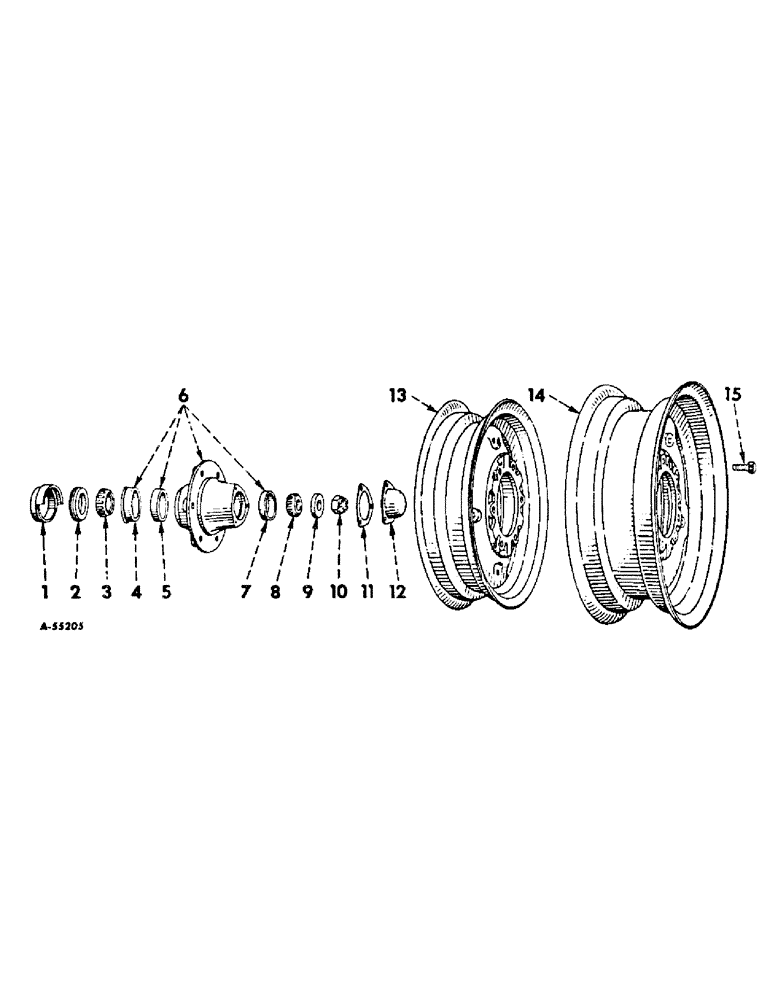

Схема запчастей Case IH 2856 - (L-02) - WHEELS AND WHEEL WEIGHTS, FRONT WHEELS Wheels & Wheel Weights
13
14
11
12
10
15
5
6
4
3
1
2
7
9
8

Артикул

Название

Примечание

Количество

1

48701D

SHIELD

front wheel dust

2шт.

2

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

front wheel oil

2шт.

3

G15215

ROLLER BEARING

BEARING ASSY, front wheel inner cone

2шт.

4

48703D

RETAINER

front wheel oil seal

2шт.

5

619387R1

BEARING CUP

BEARING, front wheel inner cup

2шт.

6

391823R11

HUB

ASSY, front wheel, also order fitting, 443566, 6 bolt wheel mounting

2шт.

6

391823R11GV

HUB

Value, Hub Assy.

2шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive type lub

2шт.

6

391824R11

HUB ASSY.

HUB ASSY, front wheel, also order fitting, 19700R91, 8 bolt wheel mounting

2шт.

19700R91

FITTING

3/16 45 deg angle drive type lub

2шт.

7

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Front wheel outer

2шт.

8

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, front wheel outer cone

2шт.

9

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

front wheel outer bearing retainer

2шт.

10

427645

SLOTTED NUT,7/8"-14, G5

NUT, front wheel

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

11

369860R1

GASKET,0.79mm Thk

front wheel hub cap

2шт.

12

369859R1

CAP

front wheel hub

2шт.

21533R1

BOLT

SCREW, 5/16-18 x 5/8 CDP hex-hd cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

370777R92

RIM

WHEEL ASSY, front, disc type 4.25KA-16DC rim 6.00-16 or 6.50-16 tire, all Farmall tractors except hi-clear and Farmall custom

2шт.

13

364343R92

WHEEL

ASSY, front, disc type w/5.50F x 160C rim for 7.50-16 tire, all Farmall tractors except hi-clear and Farmall custom

2шт.

13

371735R3

WHEEL

ASSY, front, disc type 6LB-15DC rim for 7.50 L-15 tire, all Farmall tractors except hi-clear and Farmall custom

2шт.

13

389988R91

WHEEL

ASSY, front, disc type WH8L-16 rim for 10.00-16 tire, International tractor & Farmall tractors with adjustable wide tread front axle except Farmall custom

2шт.

13

383906R91

WHEEL

ASSY, front, disc type WH10L-16 rim for 11.00-16 or 12.4-16 tires, for all tractors w/adj wide tread front axle

2шт.

13

528687R1

WHEEL

ASSY, front, disc type W8L-15 rim for 9.5L-15 tire, Farmall custom tractors

2шт.

14

400519R1

WHEEL ASSY, front, disc type WH7L-20 rim for 9.50-20 tire, International tractors, Farmall tractors w/adjustable wide tread front axle except Farmall custom

2шт.

14

377779R92

WHEEL ASSY, front, disc type 5.50F-20DC rim for 7/50-20 tire, all Farmall hi-clear tractors

2шт.

14

383905R91

WHEEL ASSY, front, disc type 5.50-20DC rim for 7.50-20 tire, all International tractors

2шт.

14

400573R1

WHEEL

ASSY, front, disc type 5.50F x 18DC rim for 7.50-18 tire, for Farmall tractors w/adjustable wide tread front axle except Farmall custom

2шт.

14

400575R1

WHEEL ASSY, front, disc type W7-24DC rim for 7/50-24 tire, International tractors

2шт.

14

400575R1

WHEEL ASSY, front, disc type W7-24DC rim for 7.50-24 tire, International tractors

2шт.

14

528952R1

WHEEL

ASSY, front, disc type 10LB-15DC rim for 11L-15 tire, 6 bolt mounting, Farmall tractors w/adjustable wide tread front axle, International tractors w/standard front axle or adjustable wide tread front axle attachment

2шт.

Ref #13 - P/N's 370777R92, 364343R92, 371735R3, and 528687R1 are 6 bolt. 383906R91 IS 8 BOLT - P/N 389988R91 is 8 bolt.

1шт.

534362R1

WHEEL

ASSY, front, disc type 10LB-15DC rim for 11L-15 tire, 8 bolt mounting, Farmall tractors w/adjustable wide tread front axle, International tractors w/standard front axle or adjustable wide tread front axle attachment

2шт.

15

51485D

BOLT,9/16" - 18 x 1 7/32"

front wheel mounting, 12 used with wheels, 364343R92, 370777R92, 371735R3, 400573R1 & 527687R1, 16 used with wheels, 383905R91 & 400575R1

1шт.

15

382966R1

BOLT (SPREADER),Hex Csk, 9/16" - 18 x 1.47"

BOLT, front wheel mounting, Farmall hi-clear tractors

12шт.

15

393363R1

BOLT,Hex, 9/16" - 18 x 1.22"

front wheel mounting, 12 used with wheel, 528952R1, 16 used with wheels, 383906R91, 16 used with wheels, 383906R91, 389988R91, 400519R1 & 534362R1

1шт.

387897R91

VALVE STEM

VALVE, tubeless tire

2шт.

371418R91

PACKAGE

front wheel bearing overhaul, consists of

2шт.

G15215

ROLLER BEARING

BEARING ASSY, front wheel inner cone

1шт.

619387R1

BEARING CUP

BEARING, front wheel inner cup

1шт.

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, front wheel outer cone

1шт.

371898R1

BEARING, CUP

Front wheel outer

1шт.

369860R1

GASKET,0.79mm Thk

front wheel hub cap

1шт.

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

OIL SEAL, front wheel

1шт.

48703D

RETAINER

front wheel oil seal

1шт.

Выбрано товаров: 46
