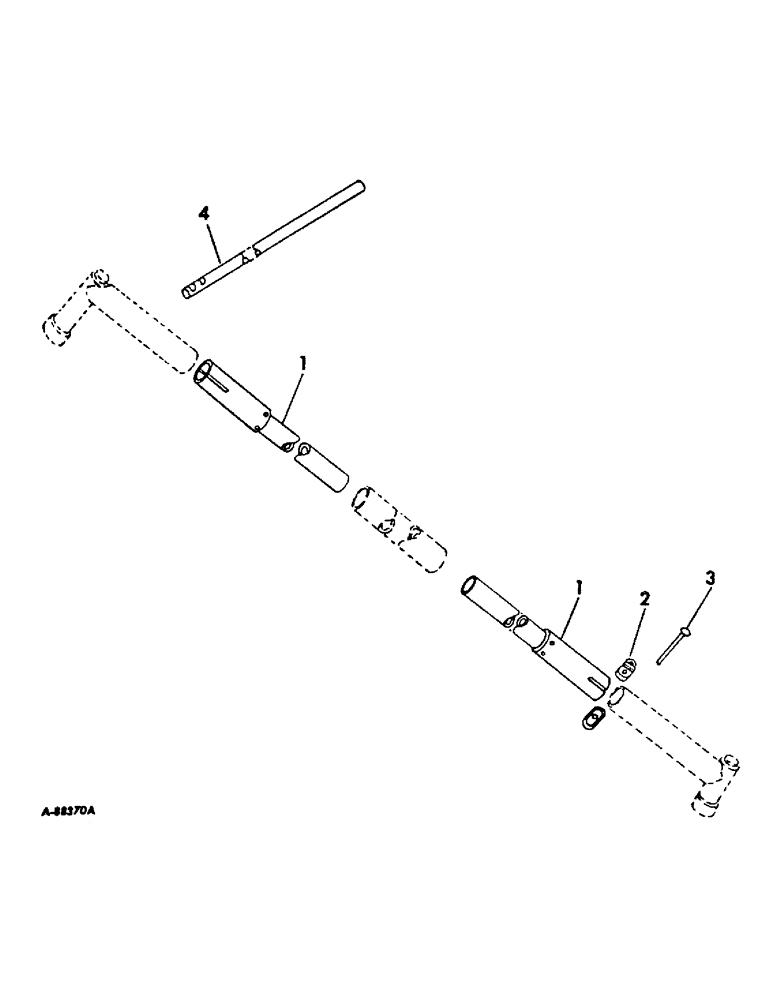

Запчасти Case IH 2856 (J-17) - STEERING MECHANISM, ADJUSTABLE WIDE TREAD FRONT AXLE EXTENSION, FARMALL TRACTORS Steering Mechanism

395284R91

PARTS ACCESSORY, adjustable wide front axle extension, 114 to 120 in., for tractors equipped with 58 to 82 in. adjustable wide front axle

1шт.

1

395281R1

EXTENSION ASSY, front axle inner

2шт.

2

350556R1

CLAMP

front axle

4шт.

20673R1

BOLT,Hex, 3/4" - 16 x 4 1/4", Gr 8

3/4-16 x 4-1/4 hex-hd

4шт.

218197

NUT,3/4"-16, G5

3/4-16 hex.

4шт.

3

350557R1

PIN

front axle clamp

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

4

395285R1

TUBE,0.948" ID, 1.19" OD

tie rod extension

2шт.
