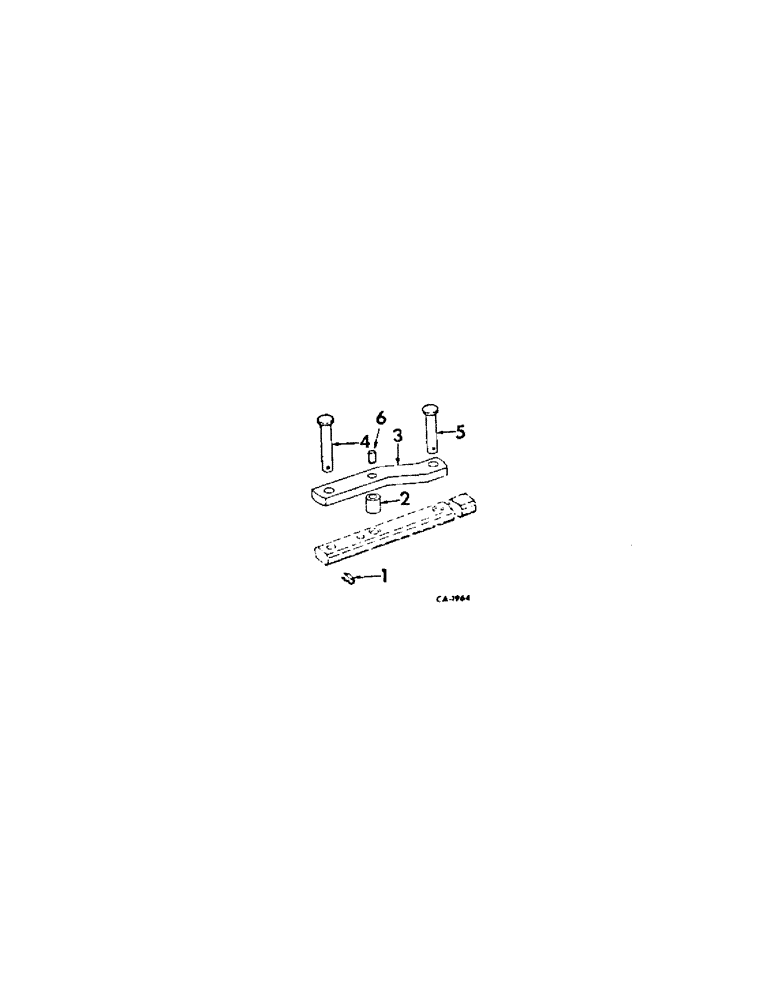

Запчасти Case IH 2856 (K-05[A]) - DRAWBARS AND HITCHES, HAMMER STRAP TRACTORS W/ TWO OR THREE POINT HITCH TELESCOPING SWINGING DRAWBAR Drawbars & Hitches

1

520175R11

AXLE PIN

PIN ASSY, quick attachable cot.

1шт.

2

389426R1

SPACER

swinging drawbar strap

1шт.

3

389425R1

STRAP

swinging drawbar

1шт.

220083

NUT,1"-8, G5

1-8 hex.

1шт.

18757R1

SCREW, 1-8 x 5-3/4 hex-hd cap

1шт.

4

383140R1

PIN

swinging drawbar clevis

1шт.

5

389523R1

PIN

drawbar

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.

280232

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

1шт.

102639

NUT,5/8"-11, G5

1шт.

575810R1

WASHER

21/32 x 1-1/2 x .120

2шт.

6

527427R1

SPACER, hammer strap

1шт.
