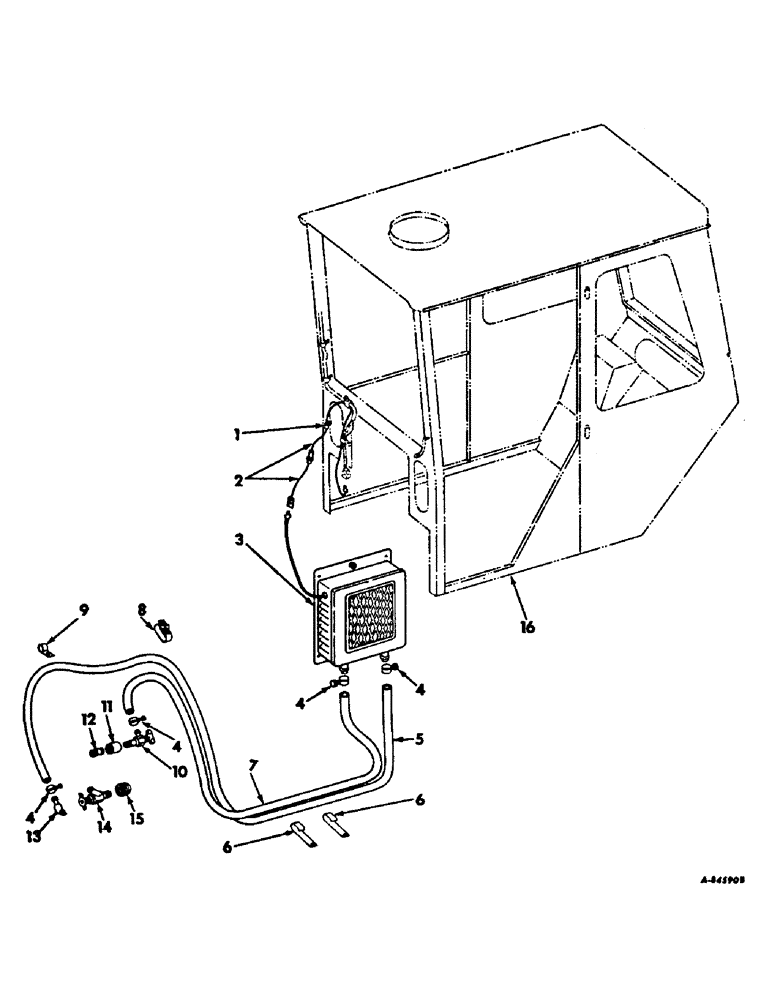

Запчасти Case IH 2856 (N-21) - PARTS ACCESSORIES & ATTACHMENTS, TRACTOR CAB HEATER & CONNECTIONS, ALLEN CABS, CARB. ENGINE TRACTORS Accessories & Attachments

1

263515R91

CLIP,ELECTRICAL

CLIP, heater power supply cable

1шт.

221154

SCREW, 14-10 x 1/2 slt-truss-hd mach

1шт.

2

391173R91

CABLE ASSY, heater power supply

1шт.

117142

FUSE,10 Amp, Type 3AG

cartridge type AGC 10

1шт.

3

391172R91

HEATER ASSY, tractor cab, for components see list of parts under details of tractor cab heater

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

272519

SCREW

1/4-20 x 1 C-Z slt-truss-hd mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

4

39093H

HOSE CLAMP

CLAMP, heater hose end

4шт.

5

HOSE, heater inlet, use 70 in. of 5/8 ID heater hose from a 50 ft. roll marked, 364359C1

1шт.

6

391179R3

CLIP, heater outlet hose

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

2шт.

133822

COVER,Cross Flat Hd, 5/16"-18 x 5/8"

SCREW, Cross Flat Hd, 5/16"-18 x 5/8"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

HOSE, heater outlet, use 100 in. of 5/8 ID heater hose from a 50 ft. roll marked, 364359C1

1шт.

8

204412R1

CLIP,ELECTRICAL

CLIP, heater hose

1шт.

102635

NUT,3/8"-16, G5

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9

120530

CLIP

CLAMP, heater hose closed C-Z

1шт.

109084

NUT,1/4"-20, G5

1шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4-20 x 1/2 C-Z slt-truss-hd mach

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

301803R91

VALVE

ASSY, shut-off

1шт.

11

120755

COUPLING,3/8" NPT

3/8 pipe

1шт.

12

120127

NIPPLE, 3/8 x 2-1/2 pipe Nipple, 3/8" NPT x 2 1/2"

1шт.

13

278089R1

FITTING

ELBOW, heater outlet hose 45 deg, for heaters installed in field

1шт.

13

444056

ELBOW

3/8 45 deg street, for heaters installed in factory

1шт.

14

941980R91

LOCK VALVE

VALVE ASSY, shut-off, for heaters installed in factory

1шт.

15

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING, 1/2 x 3/8 reducing pipe, for heaters installed in factory

1шт.

16

CAB ASSY, tractor, refer to tractor cab and connections listing, this section

1шт.

Block heater is 106725a1 11-29-99 cw

1шт.
