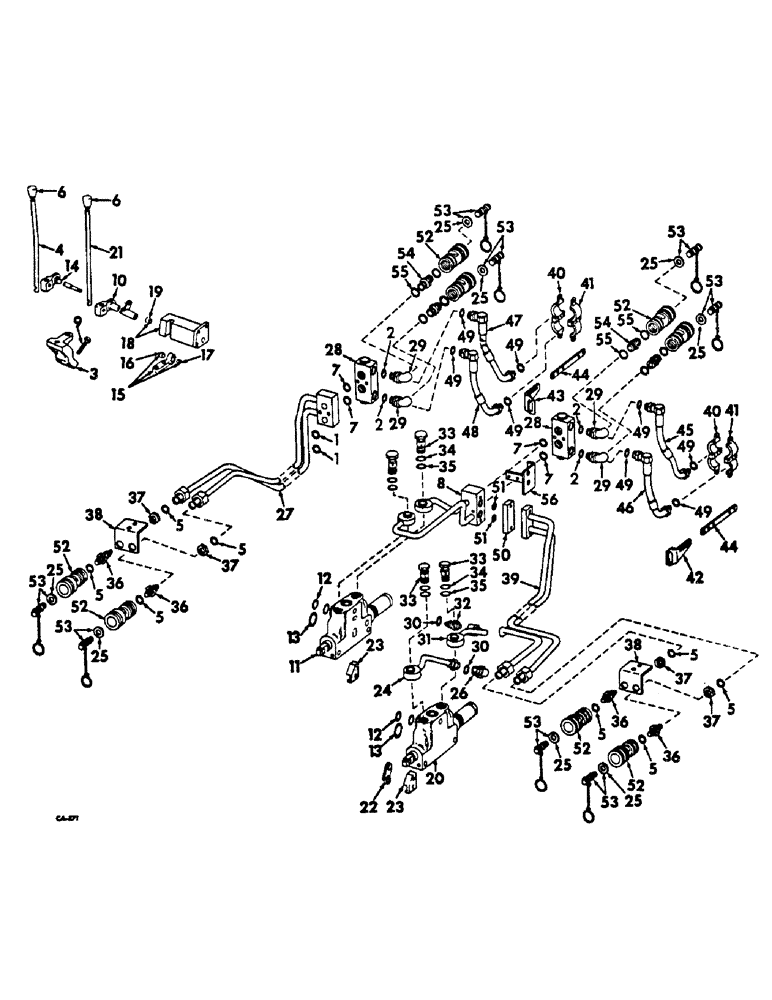

Запчасти Case IH 2856 (F-22) - HYDRAULICS SYSTEM, AUXILIARY VALVES AND TUBES (07) - HYDRAULIC SYSTEM

Service parts for single auxiliary hydraulic valve w/left rear outlet double acting check valve and breakaway coupling. Consists of all parts marked unit A

1шт.

Service parts for double auxiliary hydraulic valve w/left & right rear outlets w/double acting check valve and breakaway coupling on each outlet. Consists of all parts marked unit B

1шт.

Service parts for double auxiliary hydraulic valve w/left & right rear outlets w/double acting check valve and breakaway coupling on each rear outlet and left and right front outlet attachments. Consists of all parts marked unit C

1шт.

530847R91

LOCK VALVE

PARTS ACCESSORY, second auxiliary hydraulic valve w/right rear outlet, tractors equipped w/single auxiliary hydraulic valve ATT

1шт.

Consists of (1) actuator 384112R11, (1) arm assy 383243R92, (1) base 389166R12, (2) coupling 395150R91, (1) elbow 9410978, (1) handle 389167R1, (1) knob 389168R1, (1) nut 114502, (8) o-ring 364885R1, (2) o-ring 381884R1, (1) o-ring 381885R1, (2) o-ring 384376R1, (1) pin Q875, (1) pin, 103384, (1) pin 364436R1, (2) plug 378169R1, (2) plug assy 401757R11, (1) screw 20641R1, (3) screw 20846R1, (1) screw 179841, (1) support 384111R91, (1) tube 398426R1, (1) tube 398433R1, (3) union 9410204, (1) valve 529910R93

1шт.

403608R91

PARTS ACCESSORY, LH front manifold, for tractors w/single or double auxiliary hydraulic valve ATT

1шт.

Consists of (1) angle 398432R1, (2) bolt 15002R1, (2) coupling 395150R91, (2) nut 102635, (2) nut 9403295, (2) o-ring 252707R1, (2) o-ring 364885R1, (2) plug assy 401757R11, (2) screw 179841, (1) tube 398435R1, (2) union 9403256

1шт.

403607R91

PARTS ACCESSORY, RH front manifold, for tractors equipped w/ double auxiliary hydraulic valve attachment w/double acting check valve on each rear outlet

1шт.

Consists of (1) angle 398432R1, (2) bolt 15002R1, (2) coupling 395150R91, (2) nut 102635, (2) nut 9403295, (2) o-ring 364885R1, (2) o-ring 379794R1, (2) plug assy 401757R11, (2) screw 186283, (1) tube 398428R1, (2) 9403256

1шт.

1

379794R1

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

1-1/4 x 1-7/16 x 3/32, manifold tube to seat support , 2 for unit C

1шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, 1 used for used each check valve elbow on tractors w/o breakaway coupling, units A, B & C

1шт.

3

389605R1

BRACKET

float lockout, units A, B & C

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

389167R1

LEVER

HANDLE, auxiliary valve control outer units B & C

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, bulk head union, 4 for unit C

1шт.

6

389168R1

KNOB

auxiliary valve control handle, 1 for unit A, 2 for unit B and C

1шт.

7

379794R1

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

1-1/4 x 1-7/16 x 3/32, 2 used w/each double acting check valve for units A, B & C

1шт.

8

398420R1

MANIFOLD

ASSY, left rear, units A, B & C

1шт.

102635

NUT,3/8"-16, G5

2шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

102635

NUT,3/8"-16, G5

Tractors w/o double acting check valve 3/8"-16, G5

2шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

Tractors w/o double acting check valve Hex, 3/8"-16 x 2 1/2", G5

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065), Tractors w/o double acting check valve 3/8"

2шт.

9

20641R1

SCREW

5/16-18 x 1-3/8 hex-hd mach, adjusting screw, 1 for unit A, 2 for unit B & C

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1 for unit A, 2 for unit B & C Jam, 5/16"-18, G5

1шт.

10

389164R12

BASE

ASSY, auxiliary valve inner handle, units A, B & C

1шт.

Q875

HEADED PIN,3/8" x 1 5/16"

PIN, 3/8 x 1-5/16 headed

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

11

529910R93

LOCK VALVE

VALVE ASSY, hydraulic control, units B & C, for components see list of parts under details of hydraulic control valve

1шт.

20846R1

BOLT,Hex, 3/8" - 16 x 4 5/8", Gr 8

SCREW, 3/8-16 x 4-5/8 hex-hd cap, 3 for units B and C

1шт.

12

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32, 2 per valve or cover, control valve cr cover small, units A, B & C

1шт.

13

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16 x 3/32, 1 per valve or cover, control valve or cover large, units A, B & C

1шт.

14

389166R12

BASE

ASSY, auxiliary valve outer handle, units B & C

1шт.

15

384111R91

SUPPORT

ASSY, control lever tube inner, units A, B & C

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 x 1-3/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

383234R1

BUSHING,11.14mm ID x 12.71mm OD x 6.35mm L

control lever shaft, units A, B & C

1шт.

17

383233R1

BUSHING,19.15mm ID x 20.65mm OD x 9.65mm L

control lever tube, units A, B & C

1шт.

18

383235R21

BRACKET

SUPPORT ASSY, control lever, units A, B & C

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

19

383236R1

BUSHING,19.15mm ID x 20.65mm OD x 25.4mm L

control lever outer, units A, B & C

1шт.

20

529911R93

LOCK VALVE

VALVE ASSY, hydraulic control, units A, B & C, for components see list of parts under details of hydraulic control valve

1шт.

631944R1

SCREW, 3/8-16 x 2-1/2 hex-hd cap, 3 for unit A

1шт.

21

389165R1

SHAFT

HANDLE, auxiliary valve control lever, units A, B & C

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

22

383243R91

ARM

ASSY, valve operating outer, units B & C

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q875

HEADED PIN,3/8" x 1 5/16"

PIN, 3/8 x 1-5/16 headed

1шт.

364436R1

PIN,3/16" x 1", Coiled

1шт.

23

384112R11

DRIVE ASSY.

ACTUATOR ASSY, valve spool, 1 per valve, units A, B & C

1шт.

24

398433R1

TUBE

ASSY, right rear lift, units B & C

1шт.

25

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

dust plug, 1 per plug, units A, B & C

1шт.

26

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hydraulic flared tube adj str thd 90 deg, right rear lift tube units B & C

1шт.

27

398428R1

TUBE

ASSY, right front manifold, unit C

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

28

374083R92

VALVE

ASSY, double acting check, 1 for unit A, 2 for units B & C, for components see list of parts under details of double acting check valve

1шт.

102635

NUT,3/8"-16, G5

2шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8-16 x 3-1/2 hex-hd cap

2шт.

186285

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

2шт.

29

371357R91

ELBOW

check valve, 2 used w/each double acting check valve without breakaway coupling

4шт.

30

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, right rear lift & drop tube, 2 for units B & C

1шт.

31

398426R1

TUBE

ASSY, right rear drop, units A & C

1шт.

32

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 37 deg C-Z hyd flared tube short swivel, units B & C

1шт.

33

378169R1

SCREW,Hex, 7/8" - 14 x 1.62"

PLUG, rear tube inlet union short, 2 per valve, units A, B & C

1шт.

34

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, manifold lift pipe union plug small, 1 per plug, units A, B & C

1шт.

35

384376R1

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

15/16 x 1-1/16 x 1/16, manifold lift pipe union plug large, 1 per plug, units A, B & C

1шт.

36

9403256

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

UNION, 5/8 tube bulk hd, 4 for unit C

1шт.

37

9403295

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, 5/8 tube bulk hd union lock, 4 for unit C

1шт.

38

398432R1

ANGLE, front outlet bracket, 2 for unit C

1шт.

15002R1

BOLT, CARRIAGE, Short NK, 3/8"-16 x 7/8", G2, Full Thd Short NK, 3/8"-16 x 7/8", G2, Full Thd

4шт.

102635

NUT,3/8"-16, G5

4шт.

39

398435R1

TUBE

ASSY, left manifold, unit C

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

40

371114R1

CLAMP

FRAME, self-sealing coupling, 1 for unit A, 2 for units B & C

1шт.

41

371115R1

CLAMP

self-sealing coupling, 1 for unit A, 2 for units B & C

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2 per clamp Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 2 per clamp 1/4"

1шт.

42

402316R1

SUPPORT

BRACKET, self-sealing coupling frame LH, units A, B & C

1шт.

271559

HOOD,Hex, 5/8" - 11 x 1 5/8", Gr 5

SCREW, 5/8-11 x 1-5/8 hex-hd cap, all tractors except those with three-point hitch

1шт.

530879R1

HYDRAULIC HOSE,0.75" ID x 3.00", SAE 30R2 Type 3 Class 3

0.75" ID x 3.00"

1шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 x 1-5/16 x .095 plain

1шт.

43

402317R1

BRACKET, self-sealing coupling RH, units B & C

1шт.

13-1026

BOLT,Hex, 5/8" - 11 x 1-5/8", Gr 5, Full Thd

SCREW, 5/8-11 x 1-5/8 hex-hd cap, all tractors except those with three-point hitch

1шт.

530879R1

HYDRAULIC HOSE,0.75" ID x 3.00", SAE 30R2 Type 3 Class 3

0.75" ID x 3.00"

1шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 x 1-5/16 x .095 plain

1шт.

44

402318R1

ARM

self-sealing coupling frame, 1 for unit A, 2 for units B & C

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, , 2 per arm Short NK, 1/4"-20 x 3/4", G2

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

SCREW, 5/16-18 x 1-1/2 C-Z hex-hd cap, 2 per arm

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2 per arm 1/4"-20, G5

1шт.

44

398478R1

BRACE, self-sealing coupling, tractors w/platform extension, 1 for unit A, 2 for units B & C

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

SCREW, 5/16-18 x 1-1/2 hex-hd cap, 2 used per brace

1шт.

180172

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

SCREW, 1/2-13 x 7/8 hex-hd cap, 1 per brace

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per brace 1/2"-13, G5

1шт.

45

402226R1

HOSE ASSY.

HOSE, ASSY, breakaway upper LH, units A, B & C

1шт.

45

398485R1

HOSE ASSY.

HOSE ASSY, remote control upper LH, for tractors equipped w/ platform extension, units A, B & C

1шт.

46

402227R1

HOSE

ASSY, breakaway lower LH, units A, B & C

1шт.

46

398486R1

HOSE ASSY.

HOSE ASSY, remote control lower LH, for tractors equipped w/ platform extension, units A, B & C

1шт.

47

402224R1

HOSE ASSY.

HOSE ASSY, breakaway upper RH, units B & C

1шт.

47

398485R1

HOSE ASSY.

HOSE ASSY, remote control upper RH, for tractors equipped w/ platform extension, units B & C

1шт.

48

402225R1

HOSE

ASSY, breakaway lower RH, units B & C

1шт.

48

398486R1

HOSE ASSY.

HOSE ASSY, remote control lower RH, for tractors equipped w/ platform extension, units B & C

1шт.

49

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, 4 for unit A, 8 for units B & C

1шт.

50

398424R1

BAR, left tube manifold block cap, units A & B

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

51

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32, manifold block or cap, 2 for units A, B & C

1шт.

52

395150R91

COUPLING, QUICK, FEM

COUPLING ASSY, hyd self-sealing female, 2 for unit A, 4 for unit B, 8 for unit C

1шт.

53

401757R11

PLUG

ASSY, coupling dust, 2 for unit A, 4 for unit B, 8 for unit C

1шт.

54

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 37 deg C-Z hyd flared tube short swivel, 2 for unit A, 4 for unit B, 8 for unit C

1шт.

55

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, 4 for unit A, 8 for units B & C

1шт.

56

398425R1

ANGLE

BRACKET, left rear manifold, units A, B & C

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

2шт.

9410360

PLUG

7/8-14 C-Z str thd o-ring boss, 2 used per manifold tubes when self-sealing couplings are deducted

1шт.
