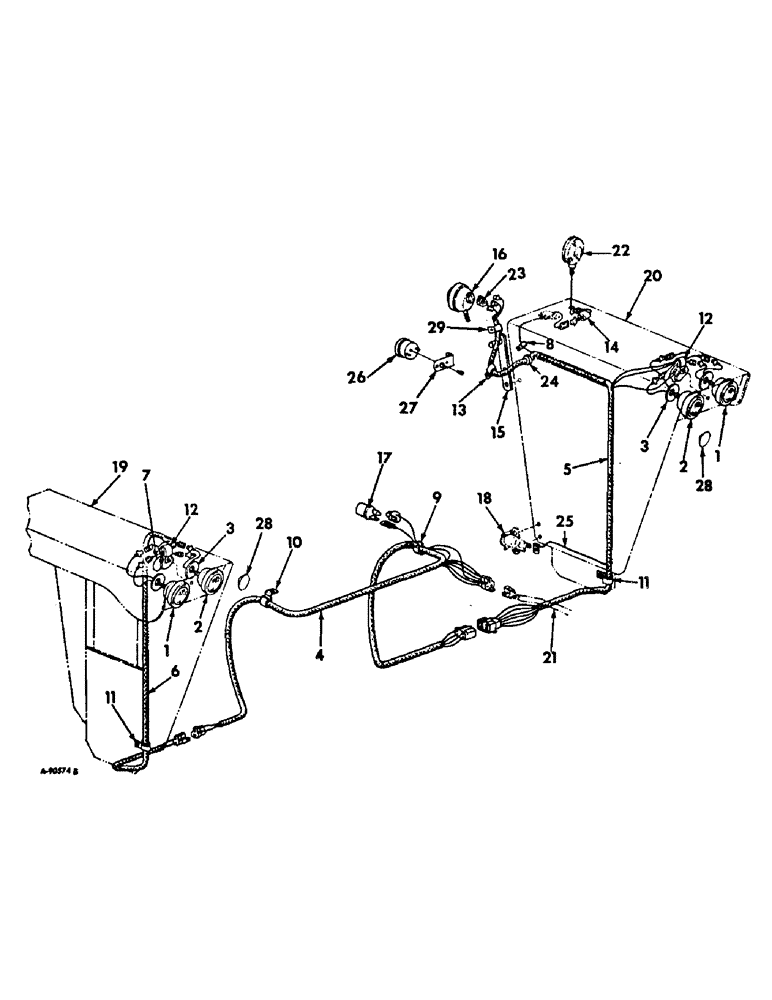

Запчасти Case IH 2856 (G-22) - ELECTRICAL SYSTEM, ELECTRIC LIGHTING, FARMALL TRACTORS WITH DELUXE FLAT TOP FENDERS (06) - ELECTRICAL SYSTEMS

399325R91

PARTS ACCESSORY, deluxe fender with adjustable lights

1шт.

1

388945R91

HEADLIGHT

LIGHT ASSY, head, only serviceable items are sealed beam unit, 373662R91 and rubber retainer, 676078R1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

388946R91

LIGHT

ASSY, flood, not used on custom tractors, only serviceable items are sealed beam unit, 390759R91 and rubber retainer, 676078R1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

3

388947R1

RETAINER

head light

4шт.

4

405287R1

HARNESS

ASSY, deluxe fender main

1шт.

5

405876R1

HARNESS

ASSY, LH deluxe fender, also order cable assy, 406688R1

1шт.

6

388949R91

HARNESS

CABLE ASSY, RH fender lighting

1шт.

7

404393R1

CABLE

ASSY, headlight to ground junction, not used on custom tractors

2шт.

7

405209R1

CABLE

ASSY, head light to ground junction, custom tractors only

2шт.

8

366460R1

CABLE CLIP

CLIP, fender lighting cable, short

1шт.

9

383622R1

CLIP

lighting cable harness, on rear frame cover front

1шт.

10

384558R1

CLIP

lighting cable harness

2шт.

11

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, lighting cable harness, short, on rear frame cover LH front mounting bolt, not used on custom tractors

2шт.

120376

NUT,5/16"-18, G5

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 C-Z hex-hd cap

2шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 x 1-5/16 x .095

2шт.

12

362121R1

CLIP

fender lighting cable, on LH & RH headlight panel

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 znd hex-hd cap

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

13

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, combination rear light harness

1шт.

14

358986R1

CABLE CLIP

CLIP, flashing light cable

1шт.

15

382407R11

BAR

BRACKET ASSY, rear light, not used on custom tractors

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SCREW, 3/8-16 x 7/8 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

16

LIGHT ASSY, combination rear and tail, refer to starting and lighting listing, this section

1шт.

17

FLASHER ASSY, warning light, refer to starting and lighting listing, this section

1шт.

18

SOCKET ASSY, breakaway connector, refer to starting and lighting listing, this section

1шт.

19

FENDER ASSY, RH, refer to deluxe fenders listings, section A

1шт.

20

FENDER ASSY, LH, refer to deluxe fenders listing, section A

1шт.

21

HARNESS ASSY, rear main cable, refer to starting and lighting listing, this section

1шт.

22

LIGHT ASSY, flashing warning, refer to starting and lighting listing, this section

1шт.

23

377105R1

CONNECTOR, ELEC

CONNECTOR, combination rear light, not used on custom tractors

1шт.

24

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

combination rear light rubber

1шт.

25

377119R91

CABLE ASSY, breakawy connector, Serial Range: socket-ground

1шт.

26

376850R91

LIGHT

ASSY, tail, custum tractors only, composed of (1) gasket 81714R1, (1) lamp 142450, (1) lens 157729R1

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

376749R1

BODY

CONNECTOR, tail light, custom tractors only

1шт.

27

370308R1

BRACKET, tail light, custom tractors only

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

180021

SPRING

SCREW, 1/4-20 x 7/8 znd hex hd cap

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21801R1

WASHER

9/32 x 3/4 x .060

2шт.

29

1017970R1

PLUG, red plastic tapered, custom tractors only

2шт.

29

370384R1

CLIP

LH fender cable harness, custom tractors only

1шт.

106653

FUSE

cartridge typed AGC-20

1шт.
