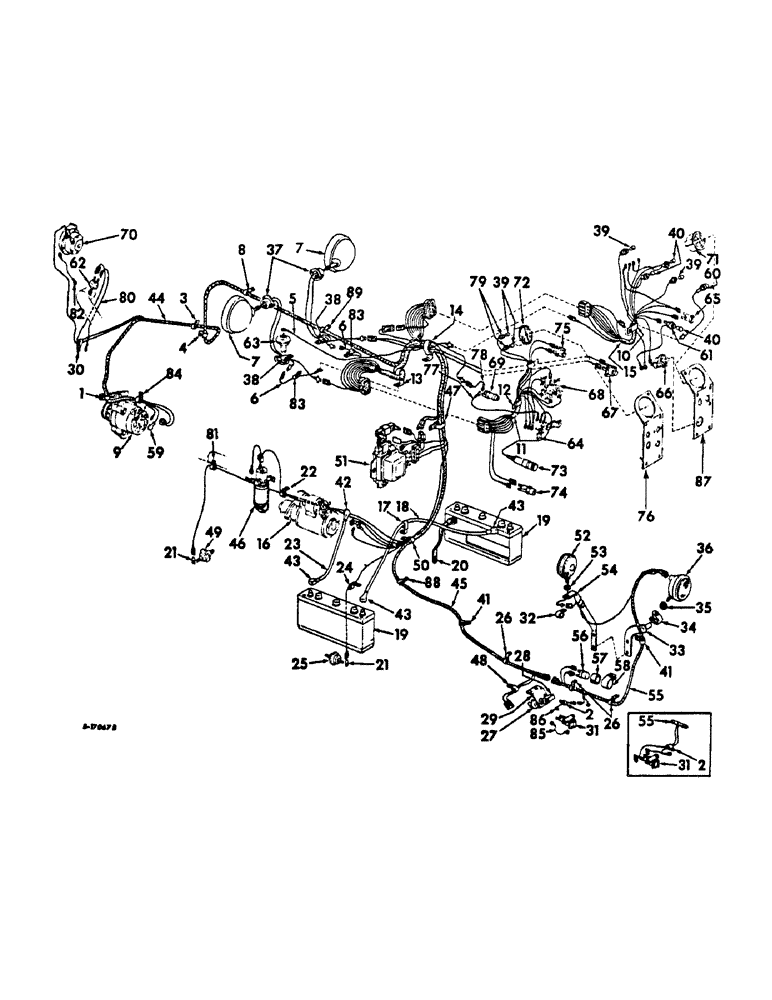

Запчасти Case IH 2856 (G-10) - ELECTRICAL SYSTEM, STARTING AND LIGHTING, FARMALL DIESEL ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

PARTS ACCESSORY, electric breakaway connector socket, tractors not equipped w/deluxe fenders, consists of ref nos 2, 31, 85, 86 and attaching hardware, Start Serial: 19960

1шт.

405884R91

PARTS ACCESSORY, electric breakaway connector socket, tractors equipped w/deluxe fenders, consists of ref nos 31, 85, 86 and attaching hardware, Start Serial: 19959

1шт.

1

362123R1

CLIP

front main harness, on alternator brace mounting bolt

1шт.

1

362126R1

CLIP

front main harness, Farmall custom tractors

1шт.

2

395228R1

CABLE CLIP

CLIP, breakaway connector cable

1шт.

3

362123R1

CLIP

front main harness, on thermostat housing LH rear mounting bolt

1шт.

4

399657R1

CLIP

front main harness, on fuel tank RH front mounting bolt

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

404400R1

CABLE

ASSY, fuel gauge sending unit to multiple connector, will work for 383593R91

1шт.

6

405209R1

CABLE

ASSY, head light to ground, will work for 370387R91

2шт.

7

387728R91

LIGHT

ASSY, shock proof head, only serviceable items are sealed beam unit, 371443R91 and rubber retainer, 313957R1

1шт.

120371

NUT,1/2"-20, G5

2шт.

120396

WASHER

17/32 x 1-1/16 x .095 C-Z

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

8

670043C1

CLIP

front main harness, on fuel tank LH front and rear, Farmall custom tractors

1шт.

9

ALTERNATOR GENERATOR ASSY, refer to alternator generator listing, this section

1шт.

10

362123R1

CLIP

RH panel harness, on range transmission selector drive shaft bushing rear mounting bolt

1шт.

11

405274R1

HARNESS

ASSY, panel cable LH, will work for 398923R1

1шт.

12

384557R1

CLIP

LH panel harness, on junction block RH mounting stud

1шт.

13

370383R1

CLIP

rear main harness, on steering & gear selector support LH front mounting bolt

1шт.

14

362666R1

CLIP

front & rear main harness

1шт.

14

527433R1

CLIP

front and rear main harness, Farmall custom tractors

1шт.

15

405275R1

WIRE HARNESS

HARNESS ASSY, panel cable RH, tractors w/fuel gauge

1шт.

15

405276R1

HARNESS ASSY, panel cable RH, tractors w/o fuel gauge

1шт.

16

MOTOR ASSY, cranking, refer to cranking motor listing, this section

1шт.

399470R1

BOOT

INSULATOR, terminal cover bolt, on cranking motor, S, terminal

1шт.

17

370383R1

CLIP

battery to battery cable

1шт.

18

534376R1

NEG BATTERY CABLE

CABLE ASSY, battery to battery, replaces 383617R91

1шт.

356062R91

BOLT

ASSY, terminal

2шт.

19

399056R1

BATTERY, prestolite 1419X, 6 volt, Serial Range: -19306

2шт.

19

392244R91

BATTERY, prestolite 1303X, 6 volt, Start Serial: 19307

2шт.

20

629029R92

NEG BATTERY CABLE

STRAP ASSY, battery to ground, replaces 378760R91

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

21

384396R1

SPADE TERMINAL,Male

TERMINAL, oil pressure switch straight

2шт.

22

365524R1

CLAMP

CLIP, engine oil pressure switch cable, on clutch housing upper LH front tapped hole

1шт.

179875

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

SCREW, 1/2-13 x 1/2 hex-hd cap

1шт.

11002VA

WASHER

17/32 x 7/8 x 16 ga

1шт.

22

363660R1

CLIP

tachometer flexible drive shaft and engine oil press switch cable, Farmall custom tractors

1шт.

23

383726R91

CABLE

ASSY, battery to solenoid switch

1шт.

356062R91

BOLT

ASSY, battery cable

1шт.

24

384556R1

CLAMP

CLIP, transmission oil pressure switch cable

1шт.

25

376855R92

SWITCH

transmission oil pressure

1шт.

26

383622R1

CLIP

rear main cable harness

3шт.

27

382728R91

SWITCH

safety starting

1шт.

28

384046R1

STEM

ROD, safety starting switch

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 cot.

1шт.

16558R1

WASHER

17/64 x 5/8 x .065

1шт.

29

384045R1

SUPPORT

BRACKET, safety starting switch

1шт.

14991R1

BOLT

3/8-16 x 5/8 short sq-nk crg

1шт.

102635

NUT,3/8"-16, G5

1шт.

30

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, electric air cleaner indicator and horn cables

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

31

362002R92

SOCKET

ASSY, electrical breakaway

1шт.

64022H

SCREW, 8-32 x 5/16 C-Z slt-fil-hd mach

2шт.

120841

WASHER, no. 8 C-Z med lock

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 znd hex-hd cap, 2 used w/deluxe flat top fenders

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

32

358986R1

CABLE CLIP

CLIP, cable harness

1шт.

33

397479R11

SUPPORT

ASSY, rear light bracket

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex hd cap

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .060) 3/8"

2шт.

34

350920R1

CLAMP

combination rear light

1шт.

35

365503R1

SPACER

combination rear light

1шт.

36

387729R91

LIGHT

ASSY, combination rear and tail, only serviceable items are lamp, 455490, sealed beam unit, 371461R91 and rubber retainer, 676078R1

1шт.

102637

NUT,1/2"-13, G5

1шт.

37

382406R1

SUPPORT

BRACKET, head light mounting

2шт.

113911

SCREW, 5/16-18 x 1/2 slt-f-hd mach

4шт.

38

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, head light cable, on steering and gear selector support

2шт.

39

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12 volt, tachometer & gauge cluster

4шт.

40

9412348

BULB,C2B, #257, 14V

LAMP, no. 257 12 volt

3шт.

41

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear cable harness

2шт.

42

364910R1

BOOT

COVER, battery terminal

1шт.

43

383619R1

COVER

battery cable terminal

3шт.

44

405278R1

HARNESS

ASSY, front main cable, will work for 398929R1

1шт.

44

405279R1

HARNESS

ASSY, front main cable, Farmall custom tractors

1шт.

45

405293R2

HARNESS

ASSY, rear main cable

1шт.

46

SOLENOID ASSY, ether starting, refer to ether starting listing, section E

1шт.

47

363117R1

CLIP

front & rear main cable harness

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

48

384554R1

CLIP

safety switch cable

1шт.

49

SWITCH ASSY, engine oil pressure, refer to crankcase and related parts listing, in Eng, 5 parts catalog

1шт.

50

401275R1

CLIP, rear main harness, on clutch housing cover front RH, 1st from center mounting bolt

1шт.

51

VOLTAGE REGULATOR, refer to voltage regulator listing, this section

1шт.

52

394129R91

LIGHT

ASSY, flashing safety warning, only serviceable items are lamp, 9417866 and lens, amber 899280R1 or lens, red 899279R1, dietz

1шт.

120371

NUT,1/2"-20, G5

1шт.

135629

GATHERING CHAIN

1/2 C-Z ext-tooth lock

1шт.

53

394262R1

WASHER

GASKET, flashing warning light

1шт.

54

394135R1

BRACKET, flashing warning light

1шт.

55

398926R1

HARNESS

ASSY, combination and flashing light, Serial Range: -19958

1шт.

55

405880R1

HARNESS

ASSY, combination and flashing light, Start Serial: 19959

1шт.

56

394132R91

FLASHER UNIT

FLASHER, warning light

1шт.

57

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

58

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

59

399470R1

BOOT

INSULATOR, terminal cover boot

1шт.

60

397946R1

LIGHT

ASSY, gear selector

1шт.

61

392441R91

LIGHT

ASSY, transmission oil pressure

1шт.

62

SWITCH ASSY, electric air cleaner, refer to air cleaner and connections, section E

1шт.

63

SENDING UNIT, fuel gage, refer to fuel tanks, supports and pipping listing, section E

1шт.

64

BLOCK ASSY, junction, refer to engine controls and instruments listing, section H

1шт.

65

SWITCH ASSY, key ignition, refer to engine controls and instruments listing, section H

1шт.

66

INDICATOR ASSY, electric air cleaner, refer to engine controls and instruments, section H

1шт.

67

SWITCH ASSY, ether push button, refer to engine controls and instruments listing, section H

1шт.

68

SWITCH ASSY, lighting, refer to engine controls and instruments listing, section H

1шт.

69

SWITCH ASSY, horn, refer to engine controls and instruments listing, section H

1шт.

70

ELECTRIC HORN, refer to electric horn listing, this section

1шт.

71

GAGE ASSY, cluster, refer to engine controls and instruments listing, section H

1шт.

72

SPEEDOMETER TACHOMETER ASSY, refer to engine controls and instruments listing, section H

1шт.

73

CIGARETTE LIGHTER, refer to engine controls and instruments listing, section H

1шт.

74

HOUSING ASSY, fuse, refer to engine controls and insturments listing, section H

1шт.

75

SWITCH ASSY, push button, refer to engine controls and instruments listing, section H

1шт.

76

PANEL ASSY, instrument LH, refer to engine controls and instruments listing, section H

1шт.

77

405212R1

HARNESS

CABLE ASSY, horn to junction block, will work for 382676R91

1шт.

78

405221R1

CABLE

ASSY, horn to harness junction, will work for 398681R1

1шт.

79

383620R91

ELECTRICAL WIRE

SOCKET ASSY, tachometer light

2шт.

80

405211R1

CABLE PULLING GRIP

CABLE ASSY, vacuum switch to ground, will work for 377120R91

1шт.

81

349059R91

CLIP, oil cooler outlet elbow

1шт.

82

405219R1

CABLE

ASSY, horn to ground, will work for 396530R1

1шт.

83

384559R1

CLIP

cable

2шт.

84

362126R1

CLIP

front main harness, long

1шт.

85

404395R1

CABLE

ASSY, breakaway connector socket to ground, serial no. 19959 and above

1шт.

86

405889R1

CABLE PULLING GRIP

CABLE ASSY, harness junction to breakaway connector socket, tractors w/o deluxe fenders, Start Serial: 19959

1шт.

86

405877R1

HARNESS

CABLE ASSY, harness junction to breakaway connector socket, tractors w/deluxe fenders, Start Serial: 19959

1шт.

87

PANEL ASSY, instrument RH, refer to engine controls and instruments listing, section H

1шт.

88

362123R1

CLIP

rear main harness

1шт.

If. the customer tractor had tilt steering. parts of cable connections are longer. see blue print for specs.

1шт.
