Запчасти Case IH 2856 (B-19) - POWER TRAIN, FINAL DRIVE, COUNTERSHAFT AND CARRIER, FARMALL TRACTORS WITH COTTON PICKER (03) - POWER TRAIN

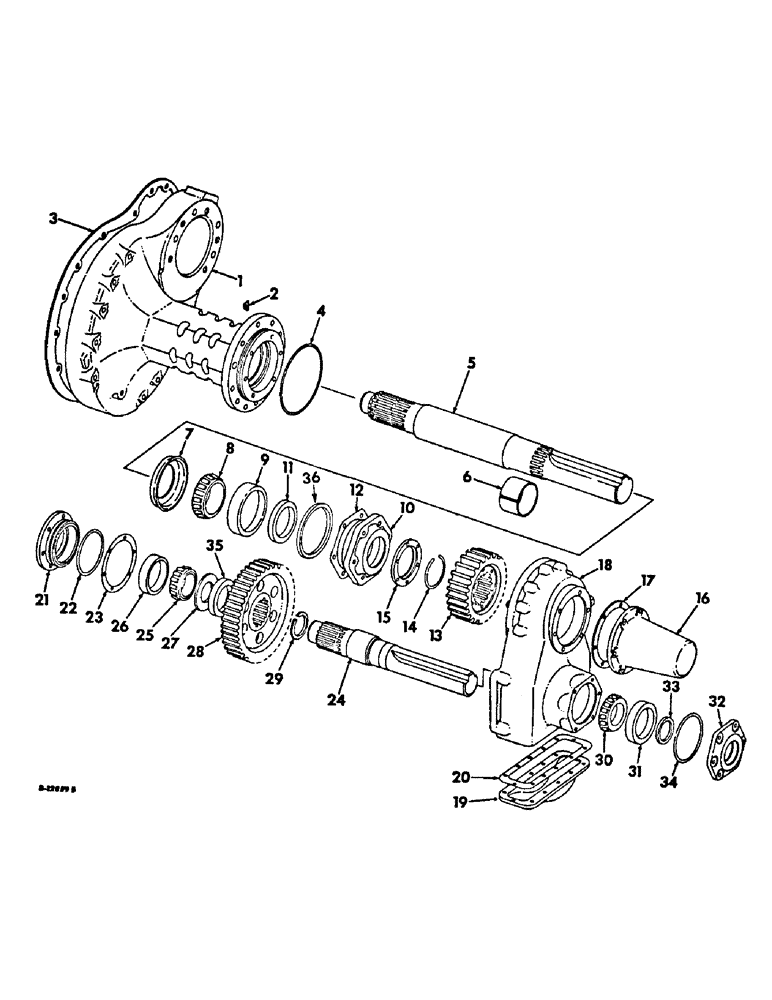

Схема запчастей Case IH 2856 - (B-19) - POWER TRAIN, FINAL DRIVE, COUNTERSHAFT AND CARRIER, FARMALL TRACTORS WITH COTTON PICKER (03) - POWER TRAIN
3
15
18
28
8
1
30
10
20
32
17
9
11
29
13
14
34
26
27
33
19
35
21
12
4
2
36
24
6
5
23
25
16
7
22
31

Артикул

Название

Примечание

Количество

1

382856R31

CARRIER

ASSY, rear axle housing

2шт.

444746

PLUG,Sq Hd, 1/2"-14 NPTF

1/2-14 automotive sq-hd

2шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 hex-hd cap

20шт.

NLS

NO LONGER SERVICED

5/8-11 x 4-1/4 hex-hd cap

16шт.

322593R1

BOLT

SCREW W/NYLON PELLET, 3/4-10 x 2-1/4 hex-hd cap

22шт.

2

109457

LUBE NIPPLE,65 Degree, 5/16" NPT x .70" lg, Drive

FITTING, 5/16 65 deg angle drive type lub

2шт.

3

380225R1

GASKET

rear axle housing carrier

2шт.

4

286967R1

O-RING

9-1/4 x 9-1/2 x 1/8, rear axle housing carrier

2шт.

5

383642R2

SHAFT, rear axle drive gear

2шт.

6

383645R1

GUARD, rear drive gear shaft spline, used when rear axle housing is removed and tractor is, Serial Range: converted-basic

2шт.

7

380154R1

RETAINER, rear axle drive gear shaft outer brg grease

2шт.

8

ST2059

BEARING ASSY

rear axle drive gear shaft outer cone

2шт.

9

13249D

BEARING CUP,152.4127 mm OD x 39.7895 mm

rear axle drive gear shaft outer cup

2шт.

10

383646R1

CAP, rear axle drive gear shaft outer brg

2шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd cap

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

11

380157R91

OIL SEAL

SEAL, rear axle drive gear shaft brg cap oil

2шт.

12

380227R2

SHIM

rear axle drive gear shaft cover brg cap, .007

1шт.

12

380228R2

SHIM

rear axle drive gear shaft outer brg cap, .012

1шт.

12

380229R2

SHIM

rear axle drive gear shaft outer brg cap, .0299

1шт.

12

380230R2

SHIM

rear axle drive gear shaft outer brg cap, .0040-.0050

1шт.

12

385158R2

SHIM

rear axle drive gear shaft outer brg cap, .0025-.0035

1шт.

13

383643R1

GEAR, rear axle drive, 32T

2шт.

14

383647R1

RING, rear axle drive gear snap

2шт.

15

383649R1

RETAINER, rear axle drive gear snap ring

2шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

12шт.

16

383651R1

CAP, drive axle shaft

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

12шт.

17

383650R1

GASKET, drive axle shaft cap

2шт.

18

382886R31

HOUSING

ASSY, rear axle

2шт.

20164R1

PIN, 7/8 x 2-1/4 dowel

2шт.

444678

PLUG

1-11-1/2 auto. sq-soc-hd pipe

2шт.

19

382887R11

PAN, ENGINE OIL

PAN ASSY, rear axle housing

2шт.

445686

PLUG

3/8-18 auto sq-hd pipe

2шт.

103879

PLUG, 3/8 sq-hd pipe

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

24шт.

20

382888R1

GASKET

rear axle housing pan

2шт.

21

382889R1

CAP

rear axle inner brg

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

12шт.

22

252741R1

O-RING

5-3/4 x 6 x 1/8, rear axle inner brg cap

2шт.

23

382891R1

SHIM

rear axle inner brg, .007

1шт.

23

382892R1

SHIM

rear axle inner brg, .012

1шт.

23

382893R1

SHIM

rear axle inner brg, .0299

1шт.

23

382894R1

SHIM

rear axle inner brg, .0040-.0050

1шт.

24

382895R2

SHAFT

AXLE, rear

2шт.

25

ST2110

ROLLER BEARING,66.67mm ID x 38.35mm W

BEARING ASSY, rear axle inner cone

2шт.

26

ST985

CUP

BEARING, rear axle inner cup

2шт.

27

384304R1

SPACER

SPACER, rear axle

2шт.

28

383644R1

PINION

GEAR, rear axle driven, 52T

2шт.

29

380220R1

SNAP RING,#362, 3.423, Ext

RING, rear axle driven gear retainer snap

2шт.

30

ST2107

TAPERED BEARING

BEARING ASSY, rear axle outer cone

2шт.

31

13249D

BEARING CUP,152.4127 mm OD x 39.7895 mm

rear axle outer cup

2шт.

32

530032R1

CAP

rear axle outer brg, replaces 382899R1

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

12шт.

33

378077R91

OIL SEAL

rear axle outer brg oil

2шт.

34

264681R1

O-RING,0.139" Thk x 6.48" ID, -260, Cl 5, 75 Duro

6-1/2 x 6-3/4 x 1/8, rear axle outer brg cap

2шт.

35

387037R1

SPACER

rear axle gear

2шт.

36

529133R1

RING

rear axle carrier cap sealing

2шт.

Выбрано товаров: 58
