(13-04) - SUPERSTRUCTURE, GRILLE AND HOOD, GAS. ENGINE TRACTORS W/ S/N 012925 & ABOVE, DIESEL ENGINE TRACTORS

Запчасти Case IH 284 (13-04) - SUPERSTRUCTURE, GRILLE AND HOOD, GAS. ENGINE TRACTORS W/ S/N 012925 & ABOVE, DIESEL ENGINE TRACTORS (05) - SUPERSTRUCTURE

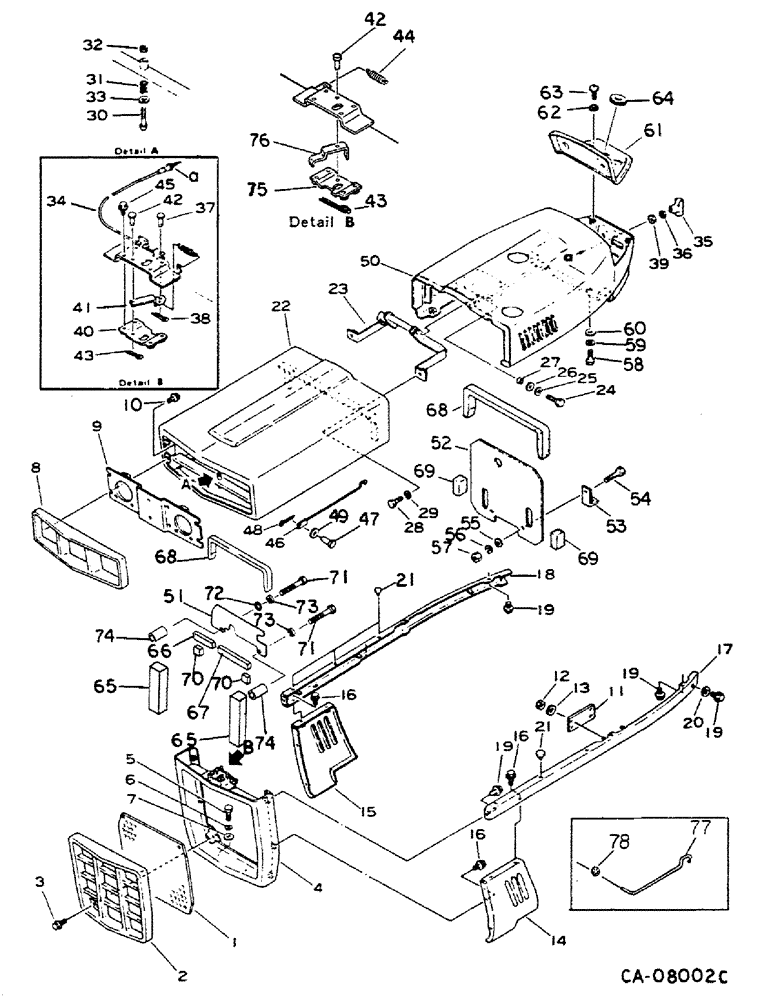

Схема запчастей Case IH 284 - (13-04) - SUPERSTRUCTURE, GRILLE AND HOOD, GAS. ENGINE TRACTORS W/ S/N 012925 & ABOVE, DIESEL ENGINE TRACTORS (05) - SUPERSTRUCTURE
65
50
71
19
69
46
73
34
37
38
56
43
45
41
1
65
49
51
14
29
16
43
20
16
10
5
76
67
52
40
27
9
63
77
22
54
25
57
53
60
21
11
19
69
42
61
36
64
16
19
68
55
58
74
21
78
13
30
68
33
3
70
62
24
18
12
39
42
2
19
23
8
7
32
31
70
66
15
75
59
35
28
26
48
73
4
74
6
47
44
71
72
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

974006C2

SCREEN

grille

1шт.

2

974007C3

GRILLE ASSY

GRILLE, radiator

1шт.

3

1014738C1

SCREW

BOLT, flange

4шт.

4

1061942C2

SUPPORT ASSY.

SUPPORT, grille

1шт.

Gasoline engine tractors serial no. 013418 and below, diesel engine tractors serial no. 002145 and below, diesel engine tractors w/awd serial no. 002267 and below

1шт.

4

1432352R1

SUPPORT

grille

1шт.

Gasoline engine tractors serial no. 013419 and above, diesel engine tractors serial no. 002146 and above, diesel engine tractors w/awd serial no. 002267 and above

1шт.

5

978098C1

BOLT,Hex, M8 x 1.25 x 20mm

M8 x 20mm

2шт.

6

897948C1

WASHER

lock

2шт.

7

25552R1

WASHER,.344" x 1" x .098", HDN

.344 x 1.000 x .098 PHC hdn

2шт.

8

974408C2

HOUSING

headlight

1шт.

9

1059143C1

COVER

headlight, replaces 974735C1

1шт.

10

1014739C1

FLANGE BOLT,Hex, M6 x 12mm

BOLT, flange

8шт.

11

1064641C1

PLATE

heat protect

1шт.

12

120361

NUT,Hex Mach Screw, #10 - 24

2 wheel drive diesel tractors w/S/N 002955 and below, 4 wheel drive diesel tractors w/S/N 002973 and below, all gasoline tractors #10-24

4шт.

13

973325C1

WASHER, 2 wheel drive diesel tractors w/serial no. 002955 and below, 4 wheel drive diesel tractors w/serial no. 002973 and below, all gasoline tractors

4шт.

14

1061948C2

SKIRT

LH, painted white

1шт.

14

1436547R1

SKIRT

LH, painted red

1шт.

15

1061952C2

SKIRT

RH, painted white

1шт.

15

1436548R1

SKIRT

RH, painted red

1шт.

16

1014739C1

FLANGE BOLT,Hex, M6 x 12mm

BOLT, flange

8шт.

17

1061943C6

BRACKET

STAY, side LH, painted white

1шт.

17

1436549R1

BRACE

STAY, side LH, painted red

1шт.

18

1061934C5

BRACE

STAY, side RH, painted white

1шт.

18

1436550R1

BRACE

STAY, side RH, painted red

1шт.

19

1014739C1

FLANGE BOLT,Hex, M6 x 12mm

BOLT, flange

8шт.

20

1004596C1

WASHER

nylon

2шт.

21

974512C2

CUSHION ASSY.

CUSHION, hood

4шт.

22

1064575C2

HOOD

front

1шт.

23

1061881C3

HINGE

1шт.

1014987C1

WASHER

1шт.

24

980658C1

BOLT

2шт.

25

978084C1

WASHER

lock

2шт.

26

980021C1

WASHER

flat

2шт.

27

1061889C2

COLLAR

2шт.

28

978098C1

BOLT,Hex, M8 x 1.25 x 20mm

M8 x 20mm

2шт.

29

897948C1

WASHER

M8 lock

2шт.

30

1061925C2

ROD

hood lock

1шт.

31

1061927C1

SPRING

hood lock

1шт.

32

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.

33

1062391C1

WASHER

1шт.

34

1061969C3

ELECTRICAL WIRE

WIRE, hood lock

1шт.

Gasoline engine tractors serial no. 013418 and below, diesel engine tractors serial no. 002145 and below, diesel engine tractors w/awd serial no. 002267 and below

1шт.

35

1061968C1

KNOB

hood lock

1шт.

Gasoline engine tractors serial no. 013418 and below, diesel engine tractors serial no. 002145 and below, diesel engine tractors w/awd serial no. 002267 and below

1шт.

36

978170C1

NUT

M5

1шт.

Gasoline engine tractors serial no. 013418 and below, diesel engine tractors serial no. 002145 and below, diesel engine tractors w/awd serial no. 002267 and below

1шт.

37

1062601C1

PIN

1шт.

Gasoline engine tractors serial no. 013418 and below, diesel engine tractors serial no. 002145 and below, diesel engine tractors w/awd serial no. 002267 and below

1шт.

38

PIN, purchase locally

1шт.

Gasoline engine tractors serial no. 013418 and below, diesel engine tractors serial no. 002145 and below, diesel engine tractors w/awd serial no. 002267 and below

1шт.

39

1004154C1

NUT

M5

1шт.

Gasoline engine tractors serial no. 013418 and below, diesel engine tractors serial no. 002145 and below, diesel engine tractors w/awd serial no. 002267 and below

1шт.

40

1061921C2

PLATE

hood lock

1шт.

Gasoline engine tractors serial no. 013418 and below, diesel engine tractors serial no. 002145 and below, diesel engine tractors w/awd serial no. 002267 and below

1шт.

41

1061926C2

PLATE

hood lock

1шт.

Gasoline engine tractors serial no. 013418 and below, diesel engine tractors serial no. 002145 and below, diesel engine tractors w/awd serial no. 002267 and below

1шт.

42

1062429C1

PIN

1шт.

43

PIN, purchase locally

1шт.

44

528136R1

SPRING

return

1шт.

45

1014739C1

FLANGE BOLT,Hex, M6 x 12mm

BOLT, flange

4шт.

46

1434427R1

ROD

hood support, replaces rod 1064600C2 by also ordering nut, 1434176R1 for diesel tractors w/serial no. 002686 and below

1шт.

46

1064228C1

ROD

hood support gasoline engine tractors

1шт.

1064229C1

BRACKET

1шт.

47

1062010C1

PIN

diesel engine tractors w/serial no. 002686 and below

1шт.

48

PIN, purchase locally

1шт.

49

978085C1

WASHER

M6 x 11.5 x M0.8 diesel engine tractors w/serial no. 002686 and below

1шт.

50

1061940C5

HOOD

rear

1шт.

51

1064599C4

PLATE

front baffle diesel engine tractors

1шт.

52

1062574C2

PLATE

rear baffle diesel engine tractors

1шт.

53

1062575C1

BRACKET

baffle, diesel engine tractors

2шт.

54

978098C1

BOLT,Hex, M8 x 1.25 x 20mm

M8 x 20mm, diesel engine tractors

2шт.

55

27326R1

WASHER,.344" x 11/16" x .089", HDN

.344 x .688 x .089 PHC hdn

2шт.

56

897948C1

WASHER

M8 lock, diesel engine tractors w/serial no. 002350 and below

2шт.

57

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Diesel Engine Tractors

2шт.

58

978098C1

BOLT,Hex, M8 x 1.25 x 20mm

M8 x 20mm

2шт.

59

897948C1

WASHER

M8 lock

2шт.

60

25552R1

WASHER,.344" x 1" x .098", HDN

.344 x 1.000 x .098 PHC hdn

2шт.

61

1058554C1

PANEL

instrument replaces 1061357C3 tractors serial no. 001209 & below also order plug 973146C1 & fuel lamp 1058550C91

1шт.

62

1014961C1

WASHER

4шт.

63

1062014C1

SCREW

4шт.

64

974461C1

GROMMET

1шт.

65

CUSHION, make from bulk stock, diesel engine tractors

2шт.

66

CUSHION, serial no. 000537 and below, make from bulk stock

1шт.

66

CUSHION, serial no. 000538 and above, diesel engine tractors, make from bulk stock

1шт.

67

CUSHION, serial no. 000537 and below, make from bulk stock

1шт.

67

CUSHION, serial no. 000538 and above, diesel engine tractors, make from bulk stock

1шт.

68

CUSHION, make from bulk stock, diesel engine tractors

2шт.

69

CUSHION, make from bulk stock

2шт.

70

CUSHION, diesel engine tractors, serial no. 000538 and above, make from bulk stock

2шт.

71

1015683C1

BOLT

M8 x 40, diesel engine tractors, serial no. 000538 & above

2шт.

72

1057124C1

WASHER

diesel engine tractors, serial no. 000538 and above

1шт.

73

897948C1

WASHER

diesel engine tractors, serial no. 000538 and above

2шт.

74

1057336C1

SPACER

diesel engine tractors, serial no. 000538 and above

2шт.

75

1059271C1

PLATE

hood lock

1шт.

Gasoline engine tractors serial no. 013419 and above, diesel engine tractors serial no. 002146 and above, diesel engine tractors w/awd serial no. 002267 and above

1шт.

76

1432357R1

PLATE

hood lock

1шт.

Gasoline engine tractors serial no. 013419 and above, diesel engine tractors serial no. 002146 and above, diesel engine tractors w/awd serial no. 002267 and above

1шт.

77

1434427R1

ROD

hood support, diesel tractors w/serial no. 002687 and above

1шт.

78

1434176R1

NUT

hood support rod, diesel tractors w/serial no. 002687 and above

1шт.

1060808C1

PLATE

baffle gasoline engine tractors

1шт.

1060883C1

STOP

STAY

1шт.

980496C1

BOLT,M8

M8 x 16mm

4шт.

897948C1

WASHER

diesel engine tractors

4шт.
