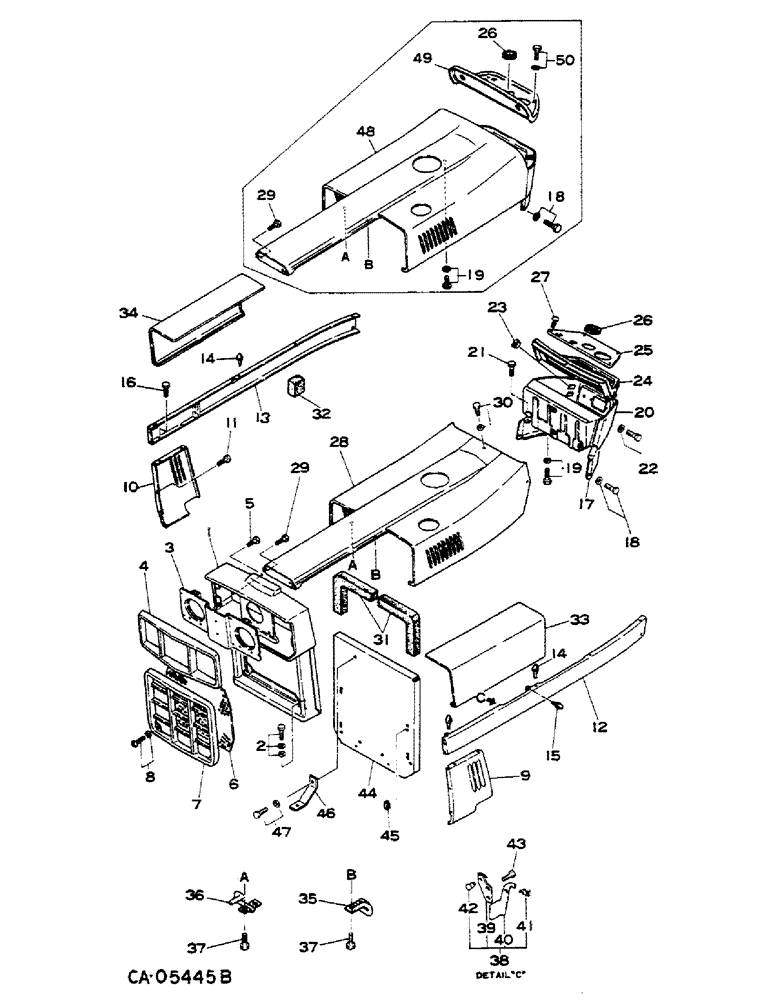

Запчасти Case IH 284 (13-02) - SUPERSTRUCTURE, GRILLE AND HOOD, GASOLINE ENGINE TRACTORS, SERIAL NO. 012924 AND BELOW (05) - SUPERSTRUCTURE

1

974003C2

SUPPORT

grille

1шт.

2

1014920C1

BOLT

2шт.

897948C1

WASHER

lock

2шт.

25552R1

WASHER,.344" x 1" x .098", HDN

.344 x 1.000 x .098 PHC hdn

2шт.

3

1059143C1

COVER

headlight, replaces 974735C1

1шт.

4

974408C2

HOUSING

headlight

1шт.

5

1014739C1

FLANGE BOLT,Hex, M6 x 12mm

BOLT

8шт.

6

974006C2

SCREEN

grille

1шт.

7

974007C3

GRILLE ASSY

GRILLE, radiator

1шт.

8

1014738C1

SCREW

BOLT

4шт.

9

974004C1

PANEL

SKIRT, LH

1шт.

10

974005C1

PANEL

SKIRT, RH

1шт.

11

1014738C1

SCREW

BOLT

4шт.

12

974009C1

STAY, side LH

1шт.

13

974010C1

PANEL

STAY, side RH

1шт.

14

974511C1

CUSHION ASSY.

CUSHION

4шт.

15

974512C2

CUSHION ASSY.

CUSHION

4шт.

16

1014738C1

SCREW

BOLT

10шт.

17

974068C2

BRACKET

STAY, rear, serial no. 12492 and below

1шт.

18

1014738C1

SCREW

BOLT

2шт.

1004596C1

WASHER

nylon

2шт.

19

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

2шт.

25552R1

WASHER,.344" x 1" x .098", HDN

.344 x 1.000 x .098 PHC hdn

2шт.

20

979033C1

PANEL

LOWER PANEL, serial no. 12492 and below

1шт.

21

1014738C1

SCREW

BOLT, serial no. 12492 and below

4шт.

22

1014738C1

SCREW

BOLT

4шт.

1004596C1

WASHER

nylon, serial no. 12492 and below

4шт.

23

979705C1

PLUG

serial no. 12492 and below

1шт.

24

974015C1

PANEL, instrument, serial no. 12492 and below

1шт.

25

974736C1

PANEL

FACE, panel, serial no. 12492 and below

1шт.

26

974461C1

GROMMET

1шт.

27

1014937C1

SCREW

serial no. 12492 and below

4шт.

28

1002836C3

HOOD

serial no. 12492 and below

1шт.

29

1014738C1

SCREW

BOLT

2шт.

30

1014738C1

SCREW

BOLT

3шт.

1004596C1

WASHER

nylon, serial no. 12492 and below

3шт.

31

1002822C2

STRIP

CUSHION

2шт.

32

1002821C1

PAD

CUSHION

2шт.

33

974012C1

COVER

LH

1шт.

34

974013C1

COVER

RH

1шт.

35

974501C1

HINGE

LH

2шт.

36

974502C1

HINGE

RH

2шт.

37

1014738C1

SCREW

BOLT

8шт.

38

1004798C91

LATCH

LOCK ASSY, replaces 974503C91

2шт.

39

BRACKET (NSS)

2шт.

40

LOCK (NSS)

2шт.

41

974506C1

SPRING

2шт.

42

PIN (NSS)

2шт.

43

1014739C1

FLANGE BOLT,Hex, M6 x 12mm

BOLT

4шт.

44

1002781C2

STRIPPER PACKAGE

PLATE, baffle, serial no. 011796 and below

1шт.

44

1004927C1

PLATE

baffle, serial no., Serial Range: 011797-012924

1шт.

45

154049H1

GROMMET

2шт.

46

1002816C1

SUPPORT

STAY

1шт.

47

980496C1

BOLT,M8

M8 x 16

2шт.

897948C1

WASHER

2шт.

48

1062420C1

HOOD

serial no., Serial Range: 12493-012924

1шт.

49

1061357C1

PANEL, instrument, serial no., Serial Range: 12493-012924

1шт.

50

1062014C1

SCREW

4шт.

1014961C1

WASHER

serial no., Serial Range: 12493-012924

4шт.
