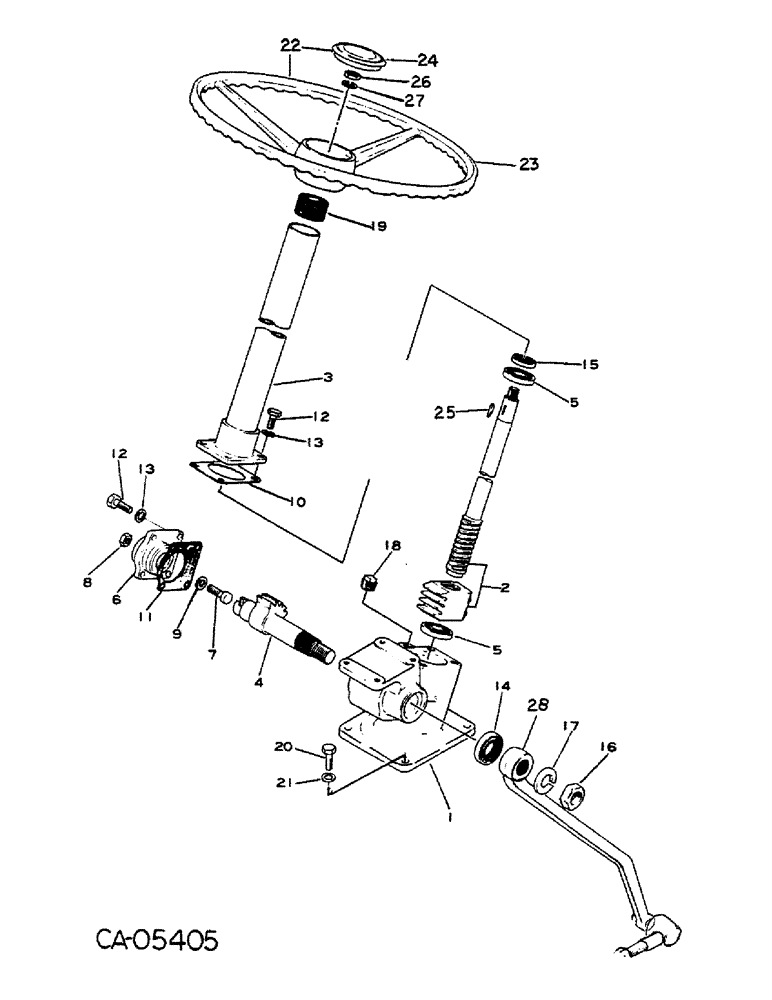

Запчасти Case IH 284 (05-06) - STEERING, STEERING WHEEL & GEAR BOX, ALL TRACTORS EXCEPT DIESEL ENGINE TRACTORS WITH ALL WHEEL DRIVE (04) - STEERING

973541C92

BOX, STEERING

GEAR BOX ASSY, steering, composed of

1шт.

1

973542C1

HOUSING

BOX, gear

1шт.

2

973543C1

BALL

NUT ASSY

1шт.

3

973544C1

TUBE

COLUMN ASSY, gasoline engine tractors with serial no. 12924 and below

1шт.

3

1064662C1

TUBE

COLUMN ASSY, gasoline engine tractors with serial no. 12925 and above diesel engine tractors

1шт.

4

973545C1

LEVER

SHAFT, sector

1шт.

5

973546C1

THRUST BEARING,41 mm OD x 12 mm

ball

2шт.

6

973547C1

COVER

side

1шт.

7

973548C1

ADJUSTMENT SCREW,M10 x 40mm

SCREW, adjust

1шт.

8

1014947C1

NUT

1шт.

9

973549C1

SHIM

SET

1шт.

10

973550C1

SHIM

SET

1шт.

11

973551C2

GASKET

1шт.

12

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

8шт.

13

897948C1

WASHER

spring

8шт.

14

973552C1

OIL SEAL

SEAL, oil

1шт.

15

973553C1

SEAL

oil gasoline engine tractors with serial no. 12924 and below

1шт.

15

1064663C1

SEAL

oil gasoline engine tractors with serial no. 12925 and above diesel engine tractors

1шт.

16

1014949C1

NUT

M22

1шт.

17

WASHER, M22 lock, purchase locally

1шт.

18

979826C1

PLUG

gasoline engine tractors with serial no. 12924 and below

1шт.

18

1064664C1

PLUG

BREATHER, gasoline engine tractors with serial no. 12925 and above

1шт.

19

973554C1

BUSHING

column

1шт.

20

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

M10 x 35 class 8.8 (Replaces 1014948C1)

4шт.

21

30184R1

WASHER,M10 x 24.5 x 3, HT

M10 x M24 x M3

4шт.

22

973537C1

WHEEL

ASSY, steering

1шт.

23

WHEEL, order 973537C1 (NSS)

1шт.

24

973140C1

CYLINDER END CAP

CAP

1шт.

973362C1

RING

snap

1шт.

25

1004514C1

KEY

1шт.

26

1014945C1

NUT

M12

1шт.

27

988891C1

WASHER

M12 lock

1шт.

28

973536C2

ARM

pitman

1шт.
