(05-02) - STEERING, STEERING LINKAGE, GASOLINE ENGINE TRACTORS WITH S/N 011744 & ABOVE, DIESEL ENGINE TRACTORS

Запчасти Case IH 284 (05-02) - STEERING, STEERING LINKAGE, GASOLINE ENGINE TRACTORS WITH S/N 011744 & ABOVE, DIESEL ENGINE TRACTORS (04) - STEERING

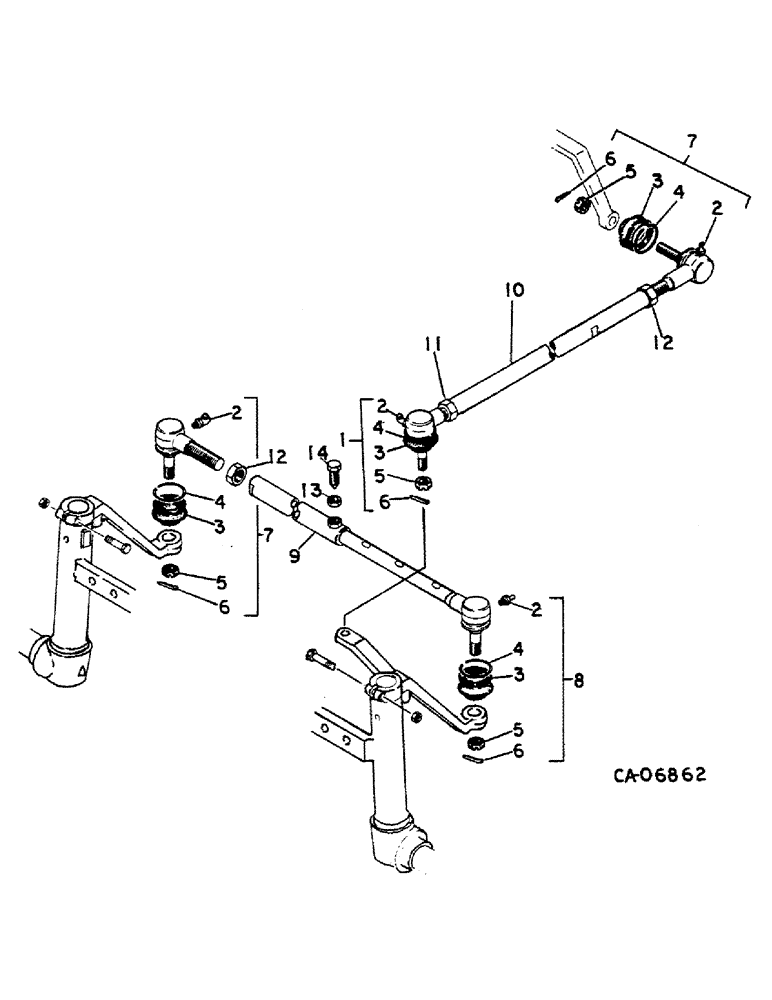

Схема запчастей Case IH 284 - (05-02) - STEERING, STEERING LINKAGE, GASOLINE ENGINE TRACTORS WITH S/N 011744 & ABOVE, DIESEL ENGINE TRACTORS (04) - STEERING
3
6
12
7
12
4
4
3
5
6
14
2
13
2
6
1
2
3
9
4
2
8
11
7
3
5
6
5
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

973354C93

SPIDER ,U-JOINT

JOINT ASSY, ball LH

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

4шт.

3

973359C1

BOOT

4шт.

4

1058936C1

CLIP

replaces 973355C1

4шт.

5

973358C1

NUT

4шт.

6

PIN, cotter (purchase locally)

4шт.

7

1061131C91

BALL JOINT

JOINT ASSY, ball RH, replaces 973361C92

2шт.

7

JOINT, ball (NSS)

2шт.

8

1060618C92

ROD

TIE ROD ASSY, inner

1шт.

9

1004897C1

ROD

TIE ROD, outer

1шт.

10

973360C1

LINK

drag

1шт.

11

1014948C1

NUT

2шт.

12

1014939C1

NUT

1шт.

13

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.

14

1002993C1

BOLT

1шт.
