(05-01) - STEERING, STEERING LINKAGE, GASOLINE ENGINE TRACTORS WITH SERIAL NO. 011793 AND BELOW

Запчасти Case IH 284 (05-01) - STEERING, STEERING LINKAGE, GASOLINE ENGINE TRACTORS WITH SERIAL NO. 011793 AND BELOW (04) - STEERING

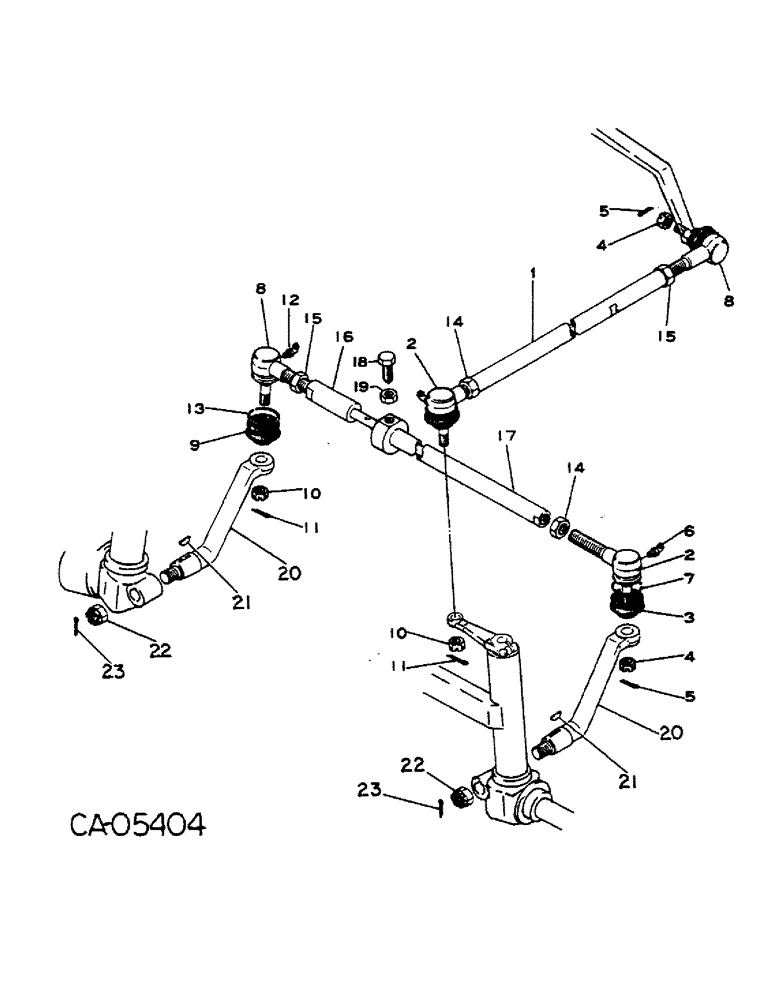

Схема запчастей Case IH 284 - (05-01) - STEERING, STEERING LINKAGE, GASOLINE ENGINE TRACTORS WITH SERIAL NO. 011793 AND BELOW (04) - STEERING
3
22
14
6
5
5
1
21
11
15
23
18
12
10
14
16
11
7
22
9
13
2
23
15
20
4
17
2
19
10
21
8
4
8
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

973360C1

LINK

drag

1шт.

973354C93

SPIDER ,U-JOINT

JOINT ASSY, ball, front LH, composed of

2шт.

2

JOINT, ball (NSS)

2шт.

3

973359C1

BOOT

2шт.

4

973358C1

NUT

2шт.

5

PIN, cotter (purchase locally)

2шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

7

1058936C1

CLIP

replaces 973355C1

2шт.

1061131C91

BALL JOINT

JOINT ASSY, ball, rear RH, replaces 973361C92, composed of

2шт.

8

JOINT, ball (NSS)

2шт.

9

973359C1

BOOT

2шт.

10

973358C1

NUT

2шт.

11

973357C1

PIN

cotter

2шт.

12

973356C2

FITTING

2шт.

13

1058936C1

CLIP

replaces 973355C1

2шт.

14

1014939C1

NUT

2шт.

15

1014948C1

NUT

2шт.

16

1004862C1

ROD

TIE ROD, inner, replaces 1002820C1

1шт.

17

1004897C1

ROD

TIE, rod, outer, replaces 1002819C1

1шт.

18

1002993C1

BOLT

1шт.

19

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.

20

973348C3

ARM

tie rod

2шт.

21

1014965C1

KEY

2шт.

22

1014952C1

NUT

2шт.

23

PIN, cotter, purchase locally

2шт.
