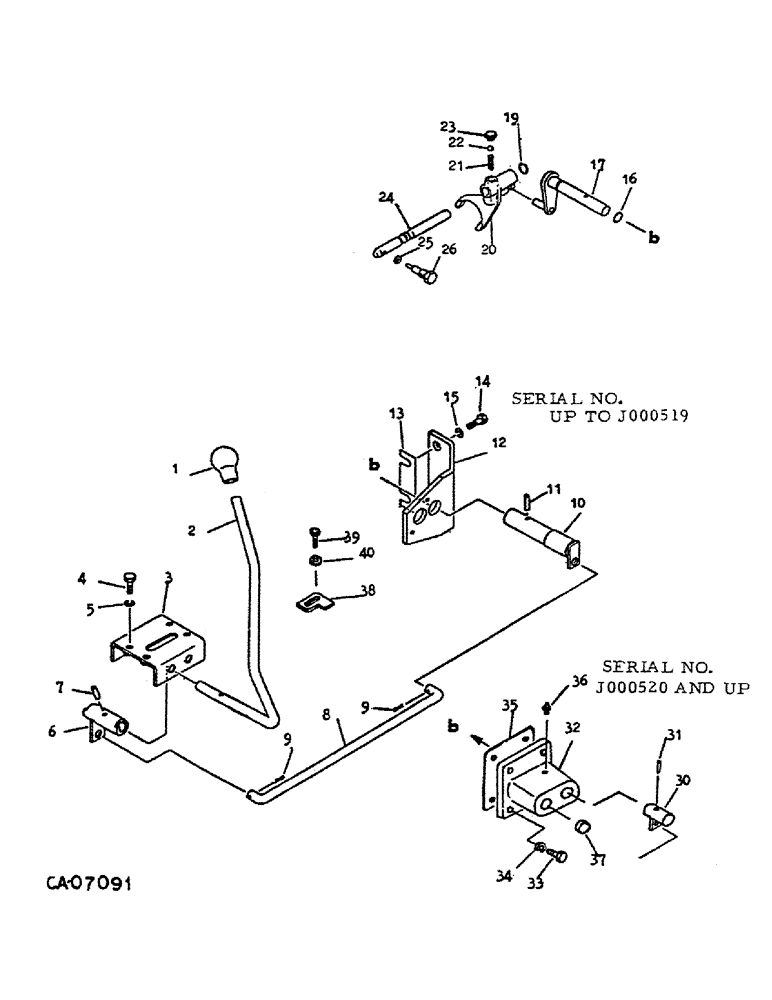

Запчасти Case IH 284 (07-32) - DRIVE TRAIN, POWER TAKE-OFF SHIFTER, DIESEL ENGINE TRACTORS (04) - Drive Train

1

1064807C1

KNOB

1шт.

2

1057485C2

LEVER

replaces 1064713C1

1шт.

3

1064723C1

BRACKET

1шт.

4

980490C1

BOLT

M8 x 25mm

4шт.

5

897948C1

WASHER

M8 lock

4шт.

6

1064707C2

LINK

serial no. 000519 and below

1шт.

6

1057486C2

LINK

serial no. 000520 and above

1шт.

7

19791R1

PIN,1/4" x 1 1/8", Coiled

1шт.

8

1064705C1

ROD

1шт.

9

1061170C1

PIN

2шт.

10

1064714C1

LEVERSHAFT

BOSS, serial no. 000519 and below

1шт.

11

19791R1

PIN,1/4" x 1 1/8", Coiled

1шт.

12

1064908C2

BRACKET

serial no. 000519 and below

1шт.

13

1064909C1

SHIM

0.1 mmt, serial no. 00519 and below

1шт.

13

1064910C1

SHIM

0.2T mmt, serial no. 000519 and below

1шт.

14

1014925C1

BOLT

714 x 30mm, serial no. 000519 and below

2шт.

15

25547R1

WASHER,21/32" x 1 5/16" x .188", HDN

.656 x 1.312 x .188 PHC hdn, serial no. 000519 and below

2шт.

16

973987C1

RING

O-RING

1шт.

17

1064710C1

LINK

serial no. 000519 and below

1шт.

17

1057310C1

LINK

serial no. 000520 and above

1шт.

18

(Not used this application)

1шт.

19

973987C1

RING

O-RING

1шт.

20

974437C2

FORK

1шт.

21

973650C1

SPRING

1шт.

22

17016R1

BALL,1/2" Dia

1шт.

23

979805C3

PLUG

1шт.

24

1002786C2

ROD

shifter

1шт.

25

978174C1

WASHER

GASKET

1шт.

26

974438C1

BOLT,Set, Hex, M16 x 2 x 60mm

set

1шт.

27

(Not used this application)

1шт.

28

(Not used this application)

1шт.

29

(Not used this application)

1шт.

30

1057488C1

LINK

BOSS, serial no. 000520 and above

1шт.

31

19791R1

PIN,1/4" x 1 1/8", Coiled

serial no. 000520 and above 1/4" x 1 1/8", Coiled

1шт.

32

1057318C2

SUPPORT

serial no. 000520 and above

1шт.

33

978105C1

BOLT

M7 x 22mm

4шт.

34

897948C1

WASHER

lock, serial no. 000520 and above

4шт.

35

1057308C1

GASKET

serial no. 000520 and above

1шт.

36

1060403C1

FITTING

lub, serial no. 000520 and above

1шт.

37

979805C3

PLUG

serial no. 000520 and above

1шт.

38

1057481C1

STOP

PER

1шт.

39

1012976C1

BOLT

M8 x 12mm

2шт.

40

27326R1

WASHER,.344" x 11/16" x .089", HDN

.344 x .688 x .089 PHC hdn

2шт.
