(07-31) - DRIVE TRAIN, POWER TAKE-OFF SHIFTER, GASOLINE ENGINE TRACTORS

Запчасти Case IH 284 (07-31) - DRIVE TRAIN, POWER TAKE-OFF SHIFTER, GASOLINE ENGINE TRACTORS (04) - Drive Train

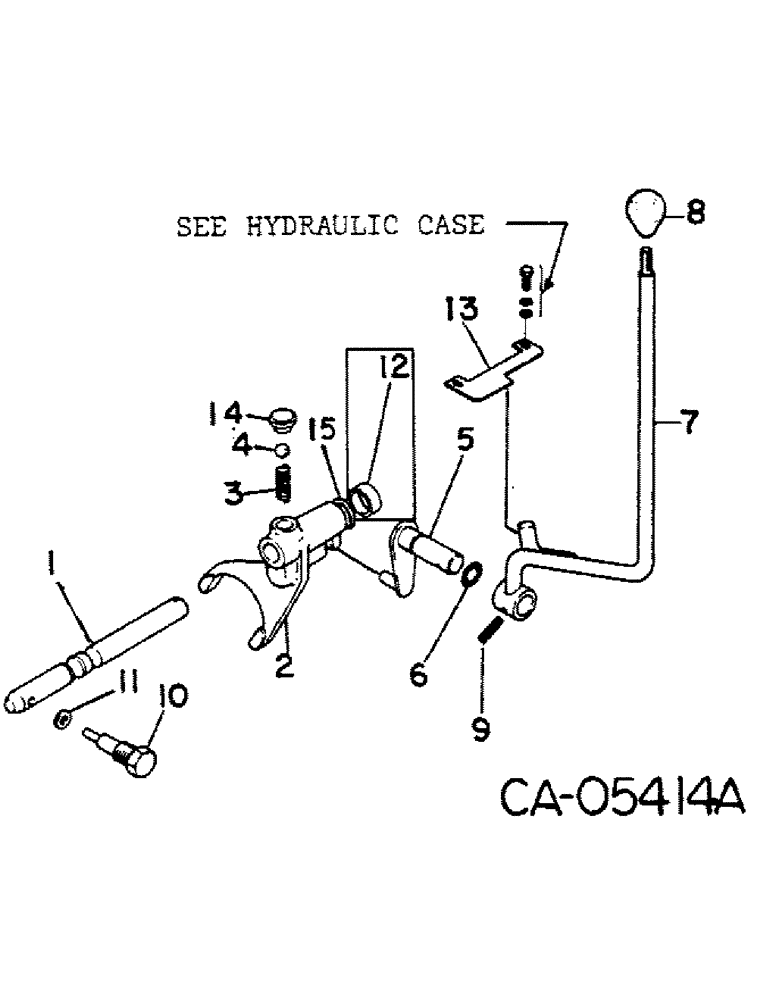

Схема запчастей Case IH 284 - (07-31) - DRIVE TRAIN, POWER TAKE-OFF SHIFTER, GASOLINE ENGINE TRACTORS (04) - Drive Train
15
3
6
1
2
13
9
8
5
4
7
12
14
11
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1002786C2

ROD

PTO shifter (dual)

1шт.

2

974437C2

FORK

PTO

1шт.

3

973971C1

VALVE SPRING

SPRING

1шт.

4

17016R1

BALL,1/2" Dia

1шт.

5

973680C1

LEVER

LINK

1шт.

6

973987C1

RING

O-RING

1шт.

7

1432156R1

LEVER

PTO, replaces threaded type lever, 1002814C5 by also ordering knob, 1064560C1 for tractors w/serial no. 013430 and below

1шт.

8

1064560C1

KNOB

press fit type, replaces 973707C1

1шт.

9

1014964C1

PIN

roll

1шт.

10

974438C1

BOLT,Set, Hex, M16 x 2 x 60mm

set

1шт.

11

978174C1

WASHER

seal

1шт.

12

973683C1

PLUG

serial no. 9708 and below

1шт.

13

1002978C1

STOP

PER, PTO lever

1шт.

14

979805C3

PLUG

1шт.

15

973987C1

RING

O-RING, PTO shifter rod, serial no. 9709 and above

1шт.
