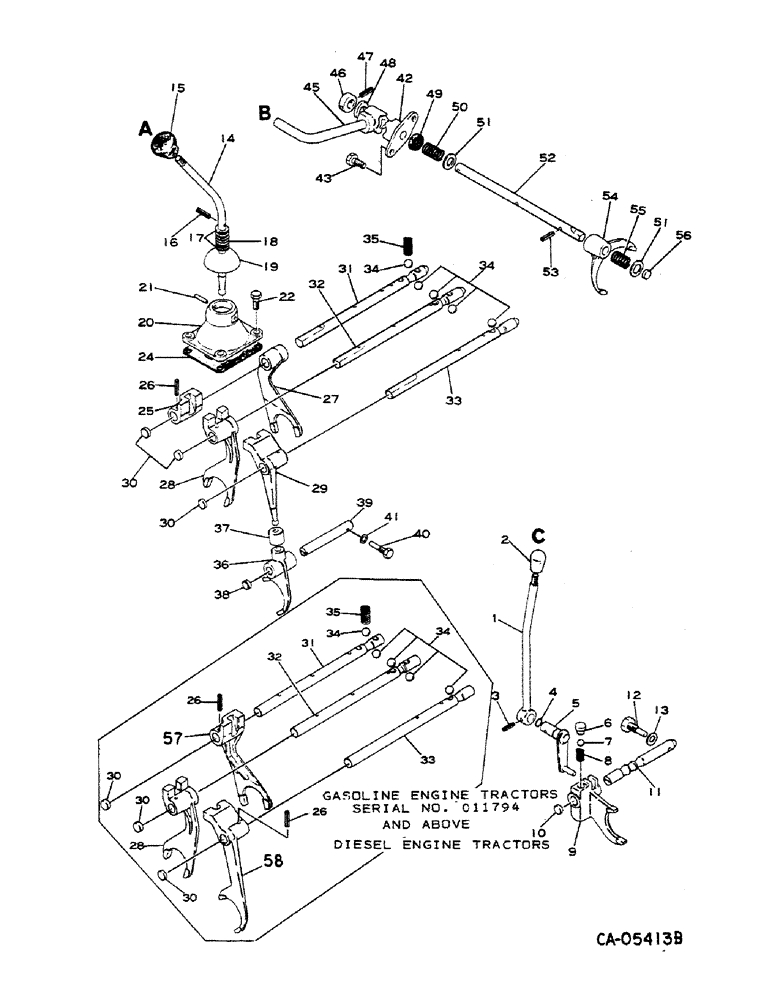

Запчасти Case IH 284 (07-28) - DRIVE TRAIN, GEAR SHIFT MECHANISM (04) - Drive Train

1

973706C2

LEVER

high low gasoline engine tractors

1шт.

1

1430013R1

LEVER

high low, replaces 1061697C2 by also ordering knob, 1064560C1, for serial no. 1606 & below, diesel engine tractors

1шт.

2

1064560C1

KNOB

replaces 973707C1

1шт.

3

1014964C1

PIN

6 x 24 spring

1шт.

4

973987C1

RING

O-RING

1шт.

5

973664C2

LEVER

LINK, high-low

1шт.

6

979805C3

PLUG

1шт.

7

17016R1

BALL,1/2" Dia

Gasoline tractors w/S/N 013454 and below 1/2" Dia

1шт.

7

897282C1

BALL

shift fork, gasoline tractors w/serial no. 013455 and above, all diesel tractors

1шт.

8

973971C1

VALVE SPRING

SPRING, gasoline tractors w/serial no. 013454 and below

1шт.

8

1062239C2

SPRING

gasoline tractors w/serial no. 013455 and above, all diesel tractors

1шт.

9

973662C3

FORK, high-low, gasoline tractors w/serial no. 013454 and below

1шт.

9

1061198C4

FORK

high-low, gasoline tractors w/serial no. 013455 and above, all diesel tractors

1шт.

10

973651C1

PLUG

1шт.

11

973661C1

ROD

high-low shifter

1шт.

Gasoline tractors w/serial no. 013454 and below, 2 wheel drive diesel tractors w/serial no. 002674 and below, all wheel drive diesel tractors w/serial no. 002746 and below

1шт.

11

1061199C2

ROD

high-low shifter

1шт.

Gasoline tractors w/serial no. 013454 and below, 2 wheel drive diesel tractors w/serial no. 002674 and below, all wheel drive diesel tractors w/serial no. 002746 and below

1шт.

11

1433585R1

GEAR

ROD, high-low shifter

1шт.

Gasoline tractors w/serial no. 013455 and above, 2 wheel drive diesel tractors w/serial no. 002675 and above, all wheel drive diesel tractors w/serial no. 002747 and above

1шт.

12

973663C1

BOLT

set

1шт.

13

979819C1

WASHER

seal

1шт.

14

973666C1

LEVER

1st and 2nd

1шт.

REF. 14 PART# 973666C1 BOOT FOR THIS LEVER IS SHOWN ON FIGURE 5-10, PART NUMBER 1003201C1

1шт.

15

1014370C1

KNOB

1шт.

16

897339C1

PIN

4 x 24 spring

1шт.

17

1014959C1

WASHER

M12 x M26 x M2.3

1шт.

1014994C1

GASKET

WASHER, seal

1шт.

18

973668C1

SPRING

1шт.

19

973667C1

COVER

1шт.

7-28 refer #19 (973667C1) see 5-11 - boot above this is 1003201C1

1шт.

20

973671C2

RETAINER

1шт.

21

973672C1

PIN

guide

1шт.

22

1014920C1

BOLT

4шт.

23

NOT USED

1шт.

24

974860C1

GASKET

1шт.

25

973652C2

HUB

ASSY, 1st and 2nd gasoline engine tractors, serial no. 011793 and below order fork, 1004896C1

1шт.

26

1063228C1

PIN

roll

8шт.

27

973653C1

FORK

1st and 2nd gasoline engine tractors, serial no. 011793 and below order fork, 1004896C1

1шт.

28

973654C2

FORK

3rd and 4th

1шт.

29

973655C2

FORK

reverse gasoline engine tractors, serial no. 011793 and below order fork, 1004899C1

1шт.

30

973651C1

PLUG

3шт.

31

973647C2

ROD, shifter 1st and 2nd gasoline engine tractors, serial no. 011793 and below

1шт.

31

1004898C2

ROD

shifter 1st and 2nd gasoline engine tractors, serial no. 011794 and above

1шт.

983880C1

SPACER

1шт.

983881C1

SPACER

1шт.

31

1004898C2

ROD

shifter 1st and 2nd diesel engine tractors

1шт.

32

973648C4

ROD

shifter 3rd and 4th

1шт.

983880C1

SPACER

1шт.

983881C1

SPACER

1шт.

33

973649C4

ROD

shifter, reverse

1шт.

983880C1

SPACER

1шт.

983881C1

SPACER

1шт.

34

17016R1

BALL,1/2" Dia

7шт.

35

973971C1

VALVE SPRING

SPRING, gasoline engine tractors

3шт.

35

973650C1

SPRING

diesel engine tractors

3шт.

36

973659C1

FORK

reverse gasoline engine tractors, serial no. 011793 and below

1шт.

37

973660C1

COVER, fork gasoline engine tractors, serial no. 011793 and below

1шт.

38

973658C1

PLUG

gasoline engine tractors, serial no. 011793 and below

1шт.

39

973656C1

ROD

fork gasoline engine tractors, serial no. 011793 and below

1шт.

40

973657C1

BOLT

set gasoline engine tractors, serial no. 011793 and below

1шт.

41

1103783C1

WASHER, seal gasoline engine tractors, serial no. 011793 and below

1шт.

42

973713C3

BRACKET

differential lock

1шт.

43

1014920C1

BOLT

1шт.

44

NOT USED

1шт.

45

1004904C1

PEDAL

differential lock, replaces 973714C2

1шт.

46

1060397C1

COLLAR

RING, replaces 973715C1

1шт.

47

1063228C1

PIN

roll

1шт.

48

973972C1

WASHER

1шт.

49

1014371C1

O-RING

(14 x 18 x 24)

1шт.

50

974030C1

SPRING, gasoline engine tractors, serial no. 9411 and below

1шт.

50

1004459C1

SPRING

gasoline engine tractors, serial no. 9412 and above diesel engine tractors

1шт.

51

1014960C1

WASHER

M15 x 26 M2.3

2шт.

52

974019C2

ROD, differential lock gasoline engine tractors, serial no. 9411 and below

1шт.

52

1004458C1

SPRING

ROD, differential lock gasoline engine tractors, serial no. 9412 above

1шт.

53

1063228C1

PIN

roll

3шт.

54

973974C3

FORK, differential lock gasoline engine tractors, serial no. 9411 and below

1шт.

54

1004457C1

FORK

differential lock gasoline engine tractors, serial no. 9412 and above diesel engine tractors

1шт.

55

974031C1

SPRING

1шт.

56

973658C1

PLUG

1шт.

57

1004896C1

FORK

1st and 2nd gasoline engine tractors, serial no. 011794 and above diesel engine tractors

1шт.

58

1004899C2

FORK, reverse, see note A, gasoline engine tractors, S/N 011794- 013455

1шт.

58

1433572R1

FORK

reverse, see note B

1шт.
