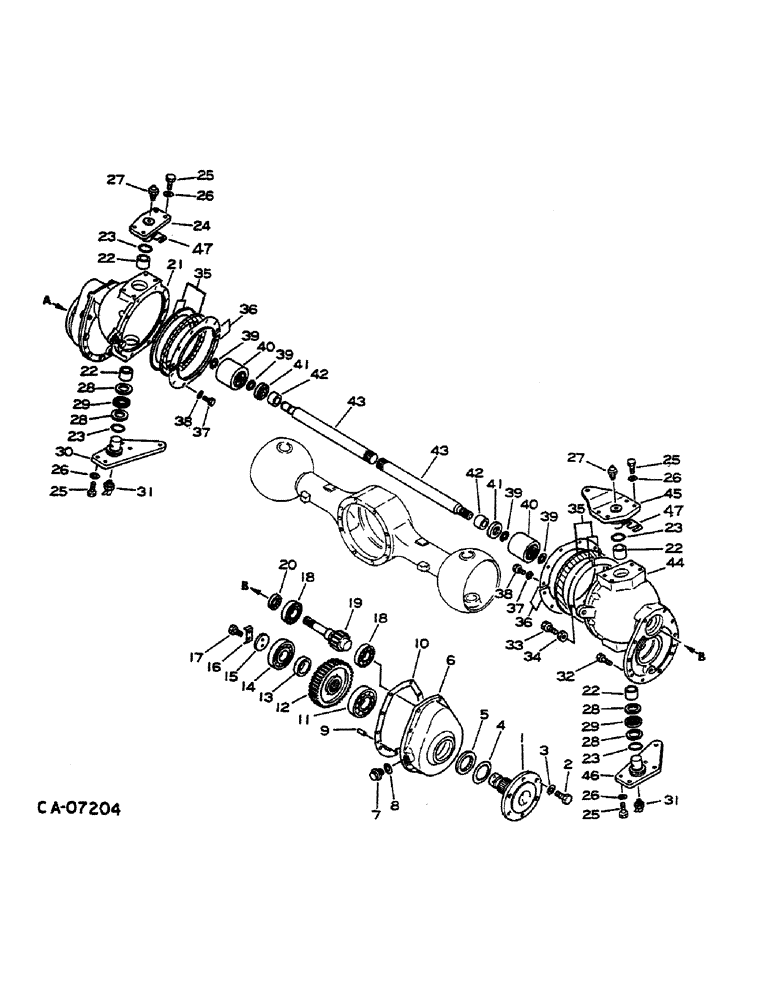

Запчасти Case IH 284 (07-24) - DRIVE TRAIN, FRONT AXLE, ALL WHEEL DRIVE, DIESEL ENGINE TRACTORS (04) - Drive Train

1

1063286C2

SHAFT

2шт.

2

1012988C1

BOLT

12шт.

3

25547R1

WASHER,21/32" x 1 5/16" x .188", HDN

.656 x 1.312 x .188 PHC hdn

12шт.

4

1063288C1

SEAL

2шт.

5

1062785C1

SEAL

oil

2шт.

6

1063282C3

COVER

serial no. 003118 and below

2шт.

6

1434582R1

COVER

serial no. 003119 and above

2шт.

7

979830C1

PLUG

serial no. 003118 and below

2шт.

7

1433724R1

PLUG

serial no. 003119 and above

2шт.

8

897433C1

WASHER

GASKET, serial no. 003118 and below

4шт.

9

1062773C1

PIN

dowel

4шт.

10

1063283C1

GASKET

2шт.

11

1062782C1

BALL BEARING

2шт.

12

1063285C1

GEAR

2шт.

13

1063287C1

COLLAR

2шт.

14

1062781C1

BEARING

2шт.

15

1062783C1

HOLDER

2шт.

16

1062784C1

LOCK

2шт.

17

981182C1

BOLT

4шт.

18

1062779C1

BALL BEARING

4шт.

19

1063284C2

SHAFT

2шт.

20

1062780C1

SEAL

oil

2шт.

21

1063278C3

CASE

RH, serial no. 002618 and below

1шт.

21

1432003R1

CASE

RH, serial no., Serial Range: 002619-003118

1шт.

21

1434577R1

CASE

RH, serial no. 003119 and above

1шт.

22

1063270C1

BUSHING

4шт.

23

1057937C1

OIL SEAL

O-RING

4шт.

24

1057924C3

PIN

king

1шт.

25

1011531C1

BOLT

M12 x 35, replaces 1012982C1

16шт.

26

1012729C1

WASHER

M12 x M26 x M3.2

16шт.

27

979823C1

FITTING

2шт.

28

1063274C1

OIL SEAL

RING

4шт.

29

1063273C1

THRUST BEARING

2шт.

30

1057922C3

ARM

tie rod RH (Replaces 1057920C3)

1шт.

31

1014683C1

FITTING

2шт.

32

1104956C1

BOLT

M10 x 25, serial no. 003118 and below

20шт.

32

30021R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

Serial no. 003119 and above Hex, M10 x 30, 10.9, Full Thd

20шт.

33

1432119R1

BOLT

replaces 1057935C1

2шт.

34

1014944C1

NUT

M16

2шт.

35

1058551C92

PACKING

2шт.

36

1433505R2

LARGE PLATE

PLATE, cover, replaces 1057908C1

4шт.

37

897948C1

WASHER

lock

24шт.

38

980649C1

BOLT

M8 x 16

24шт.

39

1063272C1

OIL SEAL

RING

4шт.

40

1063271C1

GASKET

JOINT, ball

2шт.

41

1062778C1

SEAL

oil

2шт.

42

1063270C1

BUSHING

2шт.

43

1057907C2

SHAFT

2шт.

44

1063277C3

CASE

LH, serial no. 002618 and below

1шт.

44

1432002R1

CASE

LH, serial no., Serial Range: 002619-003118

1шт.

44

1434578R1

CASE

LH, serial no. 003119 and above

1шт.

45

1059000C2

ARM

knuckle LH

1шт.

46

1057920C3

ARM

tie rod LH (Replaces 1057922C3)

1шт.

46

1057922C3

ARM

tie rod LH

1шт.

47

1430369R1

SHIM

0.2mm thick

1шт.
