(07-22) - DRIVE TRAIN, REAR AXLE, DIESEL ENGINE TRACTORS

Запчасти Case IH 284 (07-22) - DRIVE TRAIN, REAR AXLE, DIESEL ENGINE TRACTORS (04) - Drive Train

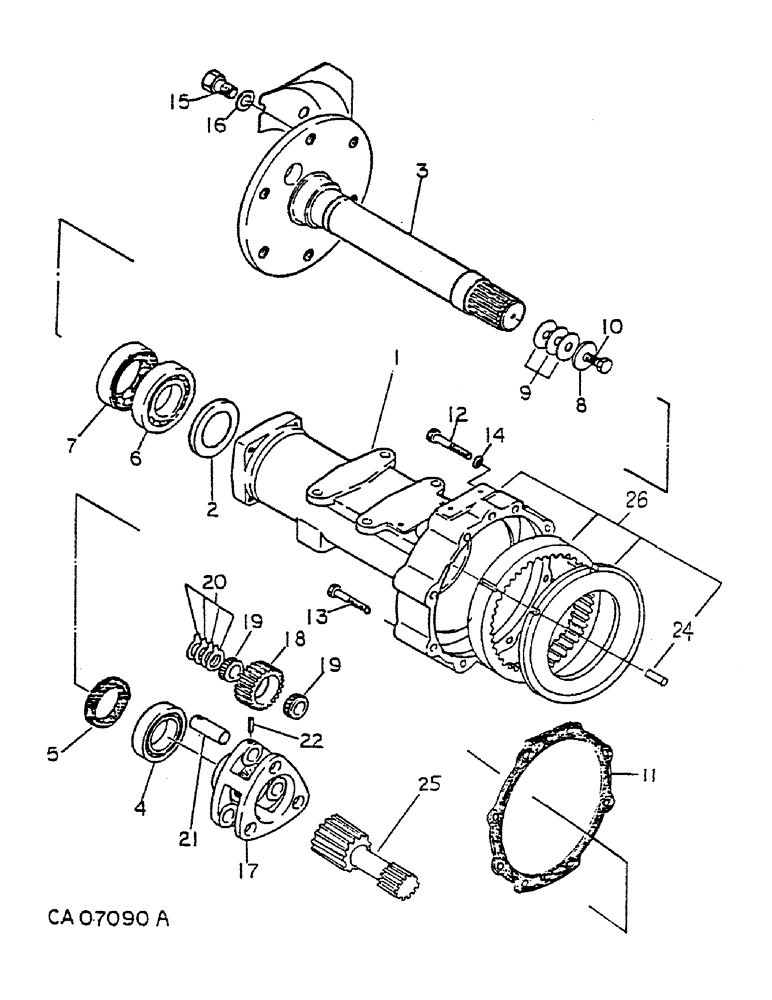

Схема запчастей Case IH 284 - (07-22) - DRIVE TRAIN, REAR AXLE, DIESEL ENGINE TRACTORS (04) - Drive Train
1
7
12
9
25
24
19
14
21
18
6
22
2
19
20
16
10
11
15
8
4
13
3
26
5
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

HOUSING, rear axle

2шт.

2

973632C1

RETAINER

2шт.

3

1064336C3

SHAFT

rear axle

2шт.

4

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

BEARING, inner

2шт.

5

973635C1

OIL SEAL

SEAL, oil

2шт.

6

1014520C1

BALL BEARING

BEARING, outer

2шт.

7

1064338C1

OIL SEAL

2шт.

8

1012945C1

WASHER

2шт.

9

1063360C1

SHIM

0.05mm thick

1шт.

9

1063361C1

SHIM

0.2mm thick

1шт.

9

1063362C1

SHIM

0.3mm thick

1шт.

9

1063363C1

SHIM

0.8mm thick

1шт.

10

1011531C1

BOLT

M12 x 35

2шт.

11

973639C2

GASKET

rear axle

2шт.

12

1064658C1

BOLT

14шт.

13

1064659C1

BOLT

parking brake bracket

2шт.

14

1014994C1

GASKET

washer

2шт.

15

1012988C1

BOLT

M13 x 35

12шт.

16

25547R1

WASHER,21/32" x 1 5/16" x .188", HDN

.656 x 1.312 x .188 PHC hdn

12шт.

17

973612C3

CARRIER

planet

2шт.

18

973613C1

GEAR

planet

6шт.

19

973614C1

ROLLER BEARING,20 mm ID x 33.5 mm OD

12шт.

20

973616C1

SHIM

0.2mm thick

1шт.

20

973617C1

SHIM

0.3mm thick

1шт.

20

973618C1

SHIM

0.5mm thick

1шт.

20

973619C1

SHIM

0.05mm thick

1шт.

21

973620C1

PIN

planet

6шт.

22

1010908C1

PIN

6шт.

23

NOT USED

1шт.

24

PIN (NSS)

6шт.

25

973623C4

GEAR

sun

2шт.

26

1433574R91

HOUSING

ASSY, LH

1шт.

26

1433575R91

HOUSING

ASSY, RH

1шт.
