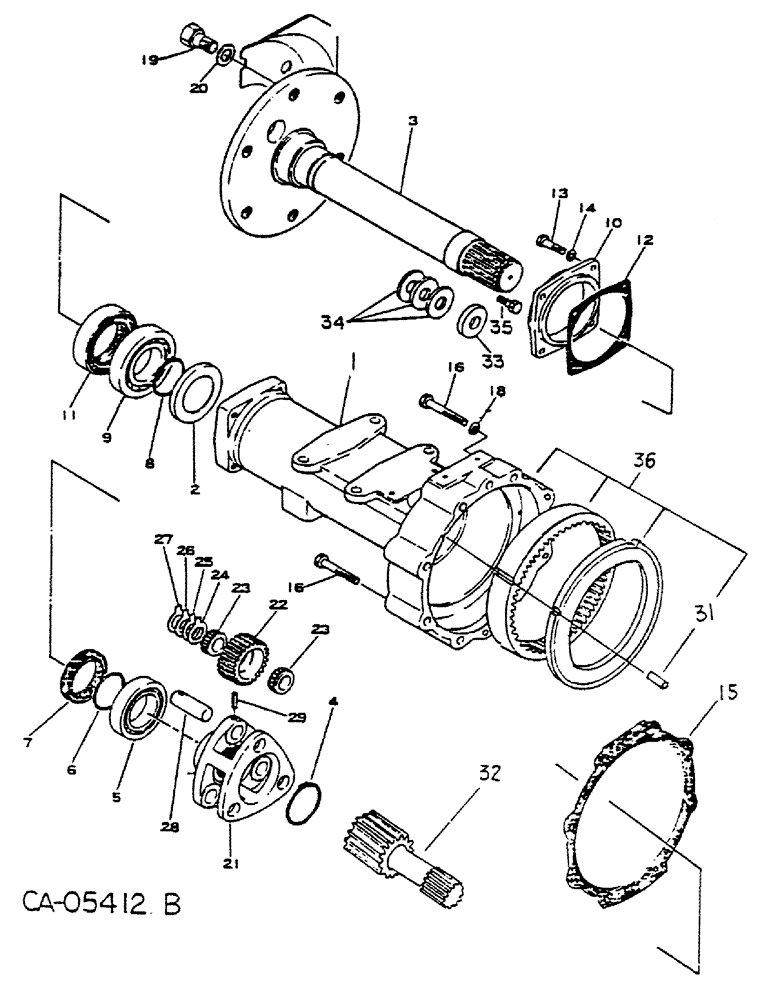

Запчасти Case IH 284 (07-20) - DRIVE TRAIN, REAR AXLE, GASOLINE ENGINE TRACTORS (04) - Drive Train

1

HOUSING, rear axle

1шт.

2

973632C1

RETAINER

2шт.

3

1002760C3

SHAFT

serial no. 012936 and below

2шт.

4

1064336C3

SHAFT

serial no. 012937 and above

1шт.

4

1014353C1

RING

snap, serial no. 012936 and below

2шт.

5

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

BEARING

2шт.

6

973634C1

SPACER, serial no. 012936 and below

2шт.

7

973635C1

OIL SEAL

SEAL, oil

2шт.

8

RING, snap, discontinued for service, serial no. 012936 and below

2шт.

9

1014520C1

BALL BEARING

BEARING

2шт.

10

1002761C3

RETAINER

serial no. 012936 and below

2шт.

11

1002981C1

OIL SEAL

SEAL, oil, serial no. 012936 and below

2шт.

11

1064338C1

OIL SEAL

oil, serial no. 012937 and above

2шт.

12

973640C1

GASKET,0.8mm Thk

serial no. 012936 and below

2шт.

13

30003R1

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

M8 x 25 class 8.8, serial no. 012936 and below

8шт.

14

897948C1

WASHER

spring, serial no. 012936 and below

8шт.

15

973639C2

GASKET

2шт.

16

1064658C1

BOLT

85mm

14шт.

17

NOT USED

1шт.

18

1014994C1

GASKET

WASHER, seal

2шт.

19

1012988C1

BOLT

M12 x 35

12шт.

20

25547R1

WASHER,21/32" x 1 5/16" x .188", HDN

.656 x 1.312 x .188 PHC hdn

12шт.

1435948R91

GEAR ASSY, planet, composed of

2шт.

21

973612C3

CARRIER

planet

1шт.

22

973613C1

GEAR

planet

3шт.

23

1064336C3

SHAFT

BEARING

6шт.

24

973616C1

SHIM

0.2 mm

1шт.

25

973617C1

SHIM

0.3 mm

1шт.

26

973618C1

SHIM

0.5 mm

1шт.

27

973619C1

SHIM

0.05 mm

1шт.

28

973620C1

PIN

3шт.

29

1010908C1

PIN

roll

3шт.

30

NOT USED

1шт.

31

PIN (NSS)

6шт.

32

973623C4

GEAR

sun

2шт.

33

1012945C1

WASHER

serial no. 012937 and above

2шт.

34

1063360C1

SHIM

0.05mm thick

1шт.

34

1063361C1

SHIM

0.2mm thick

1шт.

34

1063362C1

SHIM

0.3mm thick

1шт.

34

1063363C1

SHIM

0.8mm thick, serial no. 012937 and above

1шт.

35

1011531C1

BOLT

M12 x 35, serial no. 012937 and above

2шт.

36

1433714R91

HOUSING

ASSY, LH S/N 009036 and below

1шт.

36

1433716R91

HOUSING

ASSY, LH S/N 009037-012936

1шт.

36

1433574R91

HOUSING

ASSY, LH S/N 012937 and above

1шт.

36

1433715R91

HOUSING

ASSY, RH S/N 009036 and below

1шт.

36

1433717R91

HOUSING

ASSY, RH S/N 009037-012936

1шт.

36

1433575R91

HOUSING

ASSY, RH S/N 012937 and above

1шт.
