(07-10) - DRIVE TRAIN, DIFFERENTIAL

Запчасти Case IH 284 (07-10) - DRIVE TRAIN, DIFFERENTIAL (04) - Drive Train

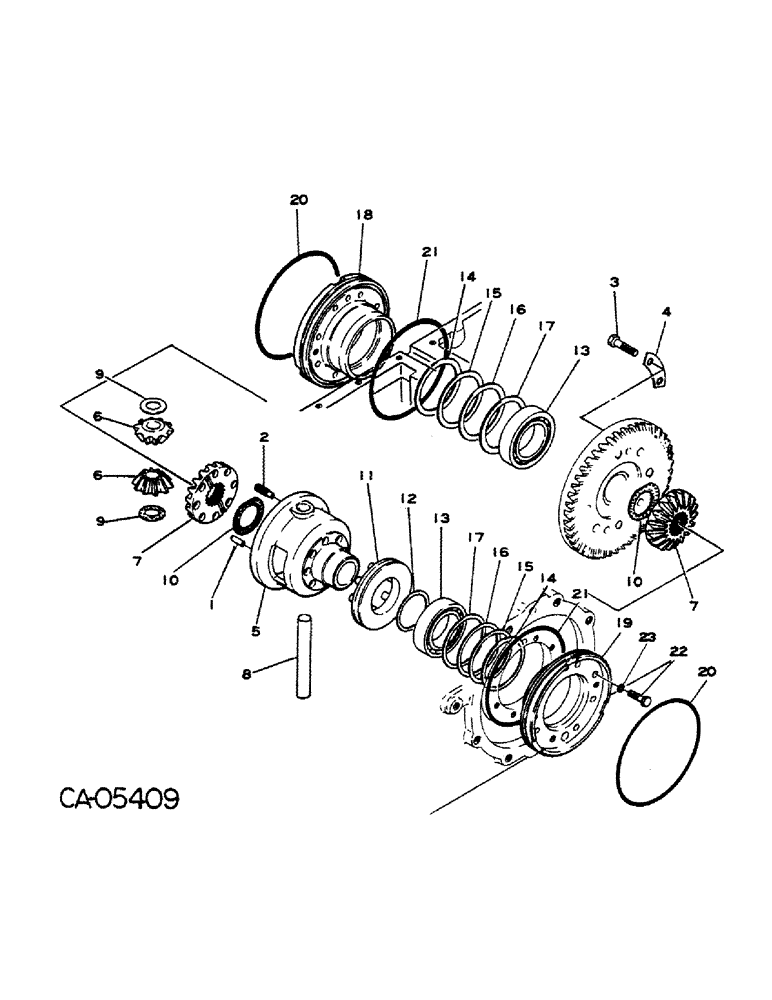

Схема запчастей Case IH 284 - (07-10) - DRIVE TRAIN, DIFFERENTIAL (04) - Drive Train
16
14
9
17
1
6
16
21
10
6
7
20
14
11
23
21
13
15
2
3
17
10
20
12
7
13
15
8
18
22
4
9
19
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

932819R1

DOWEL,M8 x 20

PIN, dowel

2шт.

2

973686C2

BOLT,28mm L

set

1шт.

3

30021R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

PHC Hex, M10 x 30, 10.9, Full Thd

8шт.

4

973687C1

LOCK WASHER

lock

4шт.

5

973688C6

CASE

differential, all gasoline engine tractors, 2 wheel drive diesel tractors w/serial no. 003106 and below, 4 wheel drive diesel tractors w/serial no. 003094 and below

1шт.

5

1436618R1

CASE

differential, 2 wheel drive diesel tractors w/serial no. 003107 and above, 4 wheel drive diesel tractors w/serial no. 003095 and above

1шт.

6

984880C91

GEAR

pinion assy, used w/diff. case, 973688C6, composed of

2шт.

GEAR, pinion (NSS)

2шт.

984881C1

BUSHING

2шт.

6

1010898C1

PINION

GEAR, pinion

2шт.

1004941C2

CARRIER

USED W/DIFF. CASE, 1436618R1

1шт.

7

973691C4

PINION

GEAR, side LH

1шт.

7

984078C2

GEAR

side RH

1шт.

8

973692C3

PIN

pinion

1шт.

9

984882C1

THRUST WASHER

thrust, used w/diff case, 973688C6

2шт.

10

974001C2

THRUST WASHER

thrust

1шт.

11

973695C4

CLUTCH

diff. lock

1шт.

12

973696C1

WASHER

1шт.

13

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

BEARING

2шт.

14

973697C1

SHIM

0.05 mm

1шт.

15

973698C1

SHIM

0.2 mm

1шт.

16

973699C1

SHIM

0.3 mm

1шт.

17

973700C1

SHIM

0.5 mm

1шт.

18

973701C2

CARRIER

RH gasoline engine tractors with serial no. 011793 and below

1шт.

18

1004941C2

CARRIER

RH gasoline engine tractors with serial no. 011794 and above

1шт.

18

1004941C2

CARRIER

RH diesel engine tractors

1шт.

19

973702C2

CARRIER

LH gasoline engine tractors with serial no. 011793 and below

1шт.

19

1004942C2

CARRIER

LH gasoline engine tractors with serial no. 011794 and above

1шт.

19

1004942C2

CARRIER

LH diesel engine tractors

1шт.

20

973703C1

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

replaces 1014697C1

2шт.

21

973704C1

O-RING,0.139" Thk x 5.734" ID, -256, Cl 5, 75 Duro

2шт.

22

30003R1

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

M8 x 25 PHC class 10.9

1шт.

23

989463C1

WASHER

lock

1шт.
