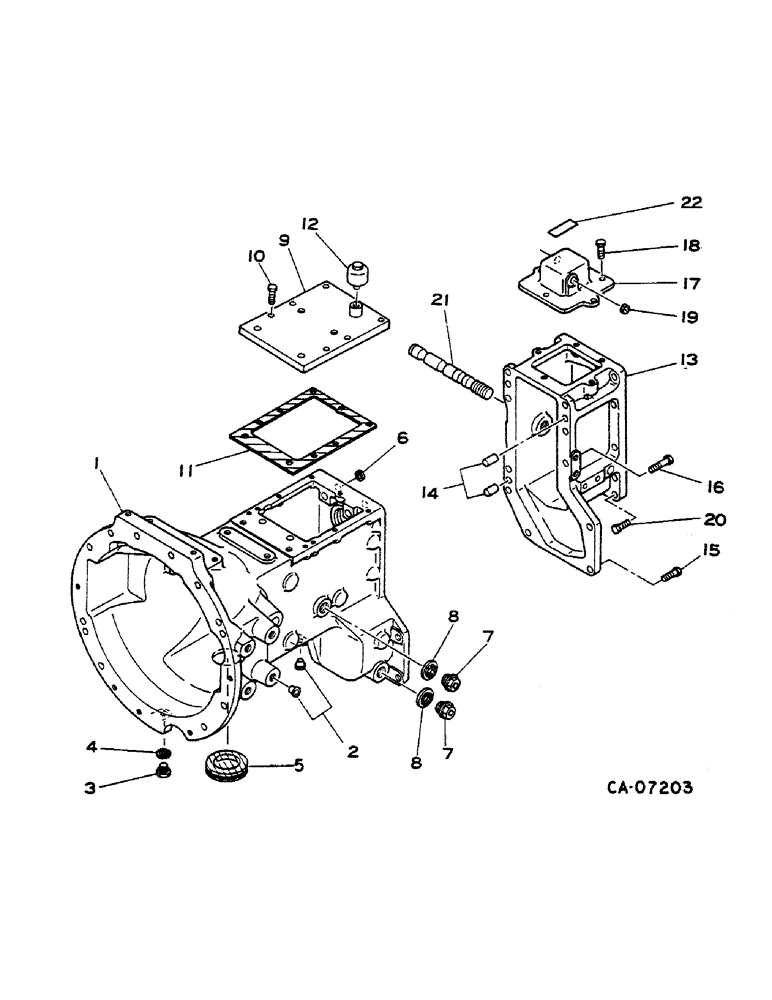

Запчасти Case IH 284 (07-08) - DRIVE TRAIN, CLUTCH HOUSING AND CONNECTIONS, DIESEL ENGINE TRACTORS WITH ALL WHEEL DRIVE (04) - Drive Train

1438736R91

HOUSING

ASSY, clutch, replaces 1057948C95 for serial no. 003054 and below, by also ordering plug, 1433724R1, composed of ref nos 1 through 4

1шт.

1

HOUSING, clutch (NSS)

1шт.

2

PLUG (NSS)

2шт.

3

PLUG (NSS)

1шт.

4

WASHER, plug (NSS)

1шт.

5

1062471C1

CAP

clutch housing

1шт.

6

973651C1

PLUG

1шт.

7

979830C1

PLUG

M24 thread, serial no. 003054 and below

2шт.

7

1433724R1

PLUG

1/2 pipe thread, serial no. 003055 and above

2шт.

8

897433C1

WASHER

seal, serial no. 003054 and below

2шт.

9

1059889C1

COVER, clutch housing, serial no. 001487 and below, and serial nos 002135 through 002313

1шт.

9

1430468R2

COVER

clutch housing, serial nos 001488 through 002134 and 002314 and above

1шт.

10

980490C1

BOLT

M8 x 25

5шт.

11

1057951C2

GASKET

for cover 1059889C1

1шт.

11

1430467R1

GASKET

for cover, 1430468R2

1шт.

12

897218C1

BREATHER

replaces 366591R91

1шт.

13

1062469C2

CASE

middle

1шт.

14

1014967C1

PIN

dowel

2шт.

15

1012981C1

BOLT

M12 x 30

9шт.

16

1014924C1

BOLT

M12 x 40

1шт.

17

1061836C1

COVER, serial no. 003034 and below

1шт.

17

1434514R1

COVER

serial no. 003035 and above

1шт.

18

1014920C1

BOLT

5шт.

19

973651C1

PLUG

1шт.

20

1011531C1

BOLT

M12 x 35

10шт.

21

1062263C1

SHAFT

brake pedal

1шт.

22

1433289R1

PRODUCT GRAPHIC

on-off

1шт.
