(07-06) - DRIVE TRAIN, CLUTCH, CLUTCH HOUSING AND CONNECTIONS, DIESEL ENGINE TRACTORS

Запчасти Case IH 284 (07-06) - DRIVE TRAIN, CLUTCH, CLUTCH HOUSING AND CONNECTIONS, DIESEL ENGINE TRACTORS (04) - Drive Train

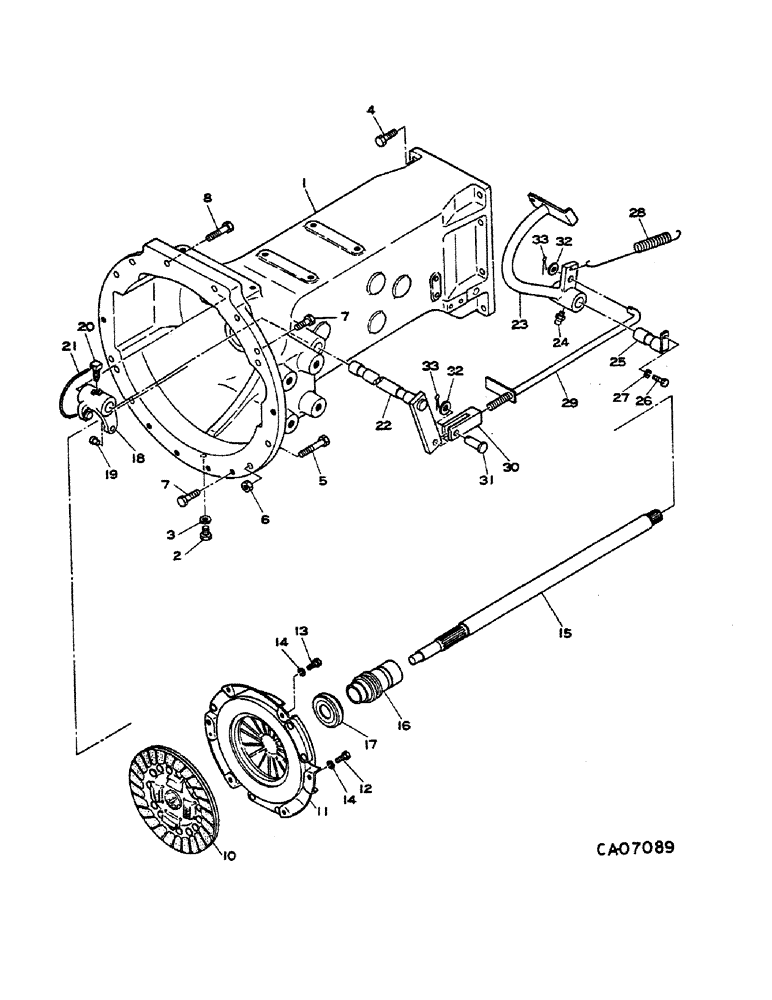

Схема запчастей Case IH 284 - (07-06) - DRIVE TRAIN, CLUTCH, CLUTCH HOUSING AND CONNECTIONS, DIESEL ENGINE TRACTORS (04) - Drive Train
10
21
7
12
15
26
16
31
11
18
5
23
13
19
32
30
4
24
17
22
29
20
2
33
3
6
28
27
25
1
33
32
7
14
14
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1062017C94

HOUSING

ASSY, clutch

1шт.

2

1014963C1

PLUG

1шт.

3

1014994C1

GASKET

WASHER, seal

1шт.

4

1011531C1

BOLT

M12 x 35mm

10шт.

5

1017033C1

BOLT

M10 x 60mm

4шт.

6

1004154C1

NUT

M10

4шт.

7

1104948C1

BOLT

M10 x 35mm

8шт.

8

1014922C1

BOLT

M8 x 20mm

4шт.

9

NOT USED

1шт.

10

1062027C2

CLUTCH DISC

DISC ASSY

1шт.

11

1062036C1

PLATE ASSY.

PLATE, pressure

1шт.

12

1062019C1

BOLT

M8 x 25mm

2шт.

13

978098C1

BOLT,Hex, M8 x 1.25 x 20mm

M8 x 20mm

4шт.

14

897948C1

WASHER

lock

6шт.

15

1061511C3

SHAFT

clutch

1шт.

16

973720C1

SLEEVE

BLOCK, shifter

1шт.

17

973723C1

BALL BEARING,38.1 mm ID x 67 mm OD x 16.5 mm

release

1шт.

18

973721C1

FORK

1шт.

19

973722C1

AXLE PIN

PIN

2шт.

20

1014363C1

BOLT

SET SCREW

1шт.

21

1014364C1

ELECTRICAL WIRE

WIRE

1шт.

22

1060879C3

SHAFT

clutch fork

1шт.

23

1062533C1

PEDAL

clutch

1шт.

24

1060403C1

FITTING

lube

1шт.

25

984380C1

AXLE PIN

PIN, clutch pedal

1шт.

26

1012976C1

BOLT

M8 x 12 class 8.8, replaces 980496C1

1шт.

27

897948C1

WASHER

lock, used only w/bolt, 980496C1

1шт.

28

973824C1

VALVE SPRING

SPRING

1шт.

29

1060824C2

ROD

clutch

1шт.

30

1013756C1

YOKE

1шт.

31

1014366C1

PIN

1шт.

32

25742R1

WASHER

.531 x .750 x .105

2шт.

33

1014976C1

PIN

cotter

2шт.
