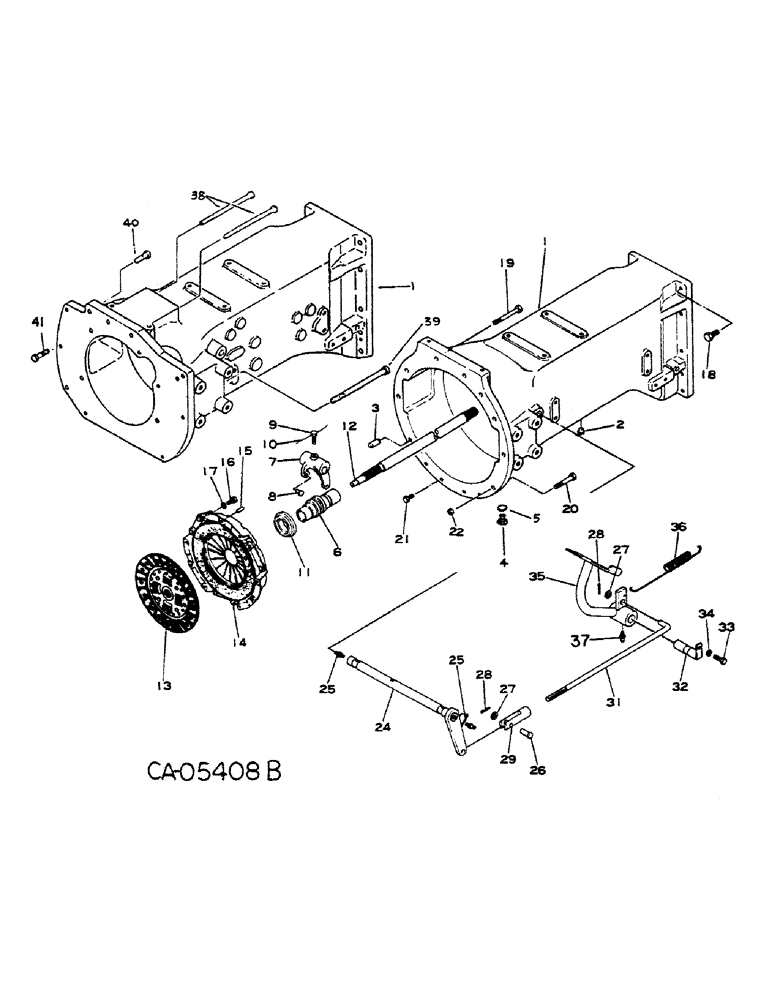

Запчасти Case IH 284 (07-04) - DRIVE TRAIN, CLUTCH, CLUTCH HOUSING AND CONNECTIONS, GASOLINE ENGINE TRACTORS (04) - Drive Train

1002907C91

HOUSING

ASSY, clutch, serial no. 012924 and below

1шт.

1062891C92

HOUSING

ASSY, clutch, serial no. 012925 and above, also furnish ref. no. 4 & 5 , composed of

1шт.

1

HOUSING, clutch (NSS)

1шт.

2

NOT USED

1шт.

3

1002813C1

PIN

dowel used w/housing, 1002907C91

2шт.

3

1014967C1

PIN

dowel used w/housing, 1062891C91

2шт.

4

1013594C1

PLUG

1шт.

5

1014994C1

GASKET

1шт.

6

973720C1

SLEEVE

BLOCK, shifter

1шт.

7

973721C1

FORK

1шт.

8

973722C1

AXLE PIN

PIN

2шт.

9

1014363C1

BOLT

set

1шт.

10

1014364C1

ELECTRICAL WIRE

WIRE

1шт.

11

973723C1

BALL BEARING,38.1 mm ID x 67 mm OD x 16.5 mm

1шт.

12

1002837C1

SHAFT

1шт.

13

973727C2

DISC

ASSY

1шт.

14

973728C1

PLATE ASSY.

PLATE, pressure

1шт.

15

932819R1

DOWEL,M8 x 20

PIN, dowel

3шт.

16

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

6шт.

17

897948C1

WASHER

spring

6шт.

18

30043R1

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

M12 x 35 PHC class 10.9

10шт.

19

1014922C1

BOLT

M10 x 45, serial no. 012924 and below

6шт.

20

1104949C1

BOLT

M10 x 55, serial no. 012924 and below

4шт.

21

30020R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

M10 x 25 PHC class 10.9 (replaces 931312R1) serial no. 012924 and below

4шт.

22

1004154C1

NUT

M10

4шт.

23

NOT USED

1шт.

24

1002832C1

SHAFT, clutch, serial no. 9492 and below

1шт.

24

984377C1

SHAFT, clutch, serial no., Serial Range: 9493-012924

1шт.

24

1062884C1

SHAFT

clutch, serial no. 012925 and above

1шт.

25

979823C1

FITTING

grease, serial no. 012924 and below

2шт.

26

1014366C1

PIN

1шт.

27

25742R1

WASHER

.531 x .750 x .105

2шт.

28

1014976C1

PIN

cotter

2шт.

29

1004463C1

YOKE

replaces 984379C1

1шт.

30

NOT USED

1шт.

31

984378C1

ROD, clutch, serial no. 9492 and below

1шт.

31

1060824C2

ROD

clutch, replaces 1004437C1, serial no. 9493 and above

1шт.

933981R1

NUT,M12 x 1.75, Cl 5

Lock M12 x 1.75, Cl 5

1шт.

32

984380C1

AXLE PIN

PIN, clutch pedal

1шт.

33

1012975C1

BOLT

M8 x 10 class 8.8, replaces 931829R1

1шт.

34

897948C1

WASHER

lock, used only w/bolt, 931829R1

1шт.

35

984376C2

PEDAL

clutch

1шт.

36

973824C1

VALVE SPRING

SPRING

1шт.

37

1060403C1

FITTING

grease

1шт.

38

1062890C1

BOLT, M10 x 155mm, serial no. 012925 and above

3шт.

39

1062889C1

BOLT

M10 x 165mm, serial no. 012925 and above

2шт.

40

30021R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

PHC, Serial no. 012925 and above Hex, M10 x 30, 10.9, Full Thd

1шт.

41

1060980C1

BOLT

M14 x 35mm, serial no. 012925 and above

6шт.
