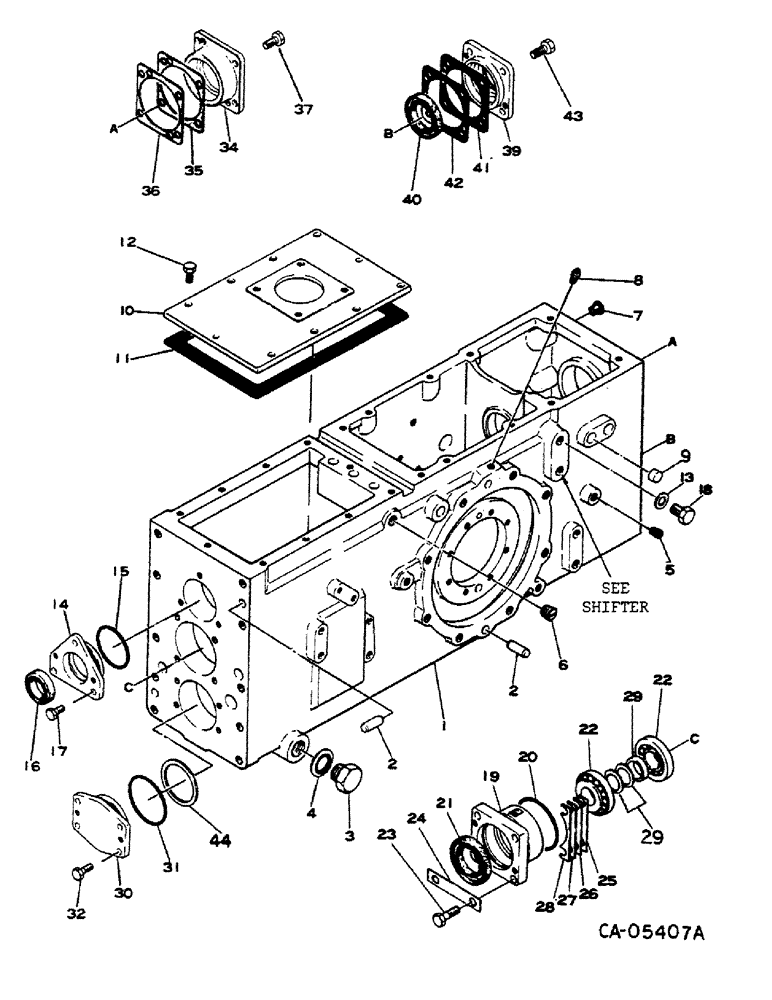

Запчасти Case IH 284 (07-02) - DRIVE TRAIN, REAR FRAME AND CONNECTIONS (04) - Drive Train

1004762C92

CASE

ASSY, transmission gasoline engine tractors with serial no. 011793 and below

1шт.

1060766C91

CASE

ASSY, transmission (replaces 1004900C1) gasoline engine tractors with serial no., Serial Range: 011794-013164

1шт.

1059545C91

CASE

ASSY, transmission, gasoline engine tractors with S/N 013165-013454

1шт.

1433659R91

CASE

ASSY, transmission gasoline tractors S/N 013455 and above

1шт.

1432261R91

CASE

ASSY, transmission diesel engine tractors with serial no. 000519 and below

1шт.

1432262R91

CASE

ASSY, transmission diesel engine tractors with S/N 00520- 002746

1шт.

1436019R93

CASE

ASSY, transmission diesel tractors S/N 002747 & above, composed of

1шт.

1

CASE, transmission (NSS)

1шт.

2

1014967C1

PIN

dowel

6шт.

3

979830C1

PLUG

drain

1шт.

4

897433C1

WASHER

seal

1шт.

5

1006088C1

PLUG

oil level

1шт.

6

979829C1

PLUG

shifter ball

1шт.

7

NOT USED

1шт.

8

973641C1

BREATHER

2шт.

9

1060613C1

PIN

dowel

4шт.

10

1002865C1

COVER

1шт.

11

973556C1

GASKET

1шт.

12

1014920C1

BOLT

10шт.

13

NOT USED

1шт.

14

973557C1

COVER

1шт.

15

973989C1

O-RING

1шт.

16

973558C1

OIL SEAL

SEAL, oil

1шт.

17

1014920C1

BOLT

3шт.

18

NOT USED

1шт.

19

973606C2

RETAINER

1шт.

20

973988C1

O-RING

1шт.

21

973559C1

OIL SEAL

SEAL, oil

1шт.

22

680151C1

BALL BEARING

replaces 973607C1

2шт.

23

30021R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

PHC Hex, M10 x 30, 10.9, Full Thd

4шт.

24

973560C1

WASHER

lock gasoline engine tractors with serial no. 012252 and below

2шт.

25

973598C1

SHIM

0.05 mm

1шт.

26

973601C1

SHIM

0.2 mm

1шт.

27

973600C1

SHIM

0.3 mm

1шт.

28

973599C1

SHIM

0.5 mm

1шт.

29

973935C1

SPACER

8.66 mm

1шт.

29

973936C1

SPACER

8.68 mm

1шт.

29

973937C1

SPACER

8.70 mm

1шт.

29

973938C1

SPACER

8.72 mm

1шт.

29

973939C1

SPACER

8.74 mm

1шт.

29

1060512C1

SHIM

0.3mm

1шт.

29

1003950C2

SHIM

0.1mm

1шт.

30

973565C1

COVER

1шт.

Gasoline tractors w/serial no. 013454 and below, 2 wheel drive diesel tractors w/serial no. 002674 and below, all wheel drive diesel tractors w/serial no. 002746 and below

1шт.

30

1433584R1

COVER

1шт.

Gasoline tractors w/serial no. 013455 and above, 2 wheel drive diesel tractors w/serial no. 002675 and above, all wheel drive diesel tractors w/serial no. 002747 and above

1шт.

31

973990C1

O-RING

1шт.

32

1014920C1

BOLT

4шт.

33

NOT USED

1шт.

34

973566C1

RETAINER

P.T.O.

1шт.

35

973568C1

SHIM

0.25 mm

1шт.

36

973569C1

SHIM

0.1mm

1шт.

37

978098C1

BOLT,Hex, M8 x 1.25 x 20mm

M8 x 20 class 8.8

4шт.

38

NOT USED

1шт.

39

1004415C1

COVER

replaces 973571C2

1шт.

40

973572C1

OIL SEAL

SEAL, oil

1шт.

41

973574C1

SHIM

0.25 mm

1шт.

42

973575C1

SHIM

0.1 mm

1шт.

43

978098C1

BOLT,Hex, M8 x 1.25 x 20mm

M8 x 20 class 8.8

4шт.

44

1002973C1

SHIM

0.20 mm

1шт.

44

1002974C1

SHIM

0.50 mm

1шт.

44

1002975C1

SHIM

1.00 mm

1шт.
