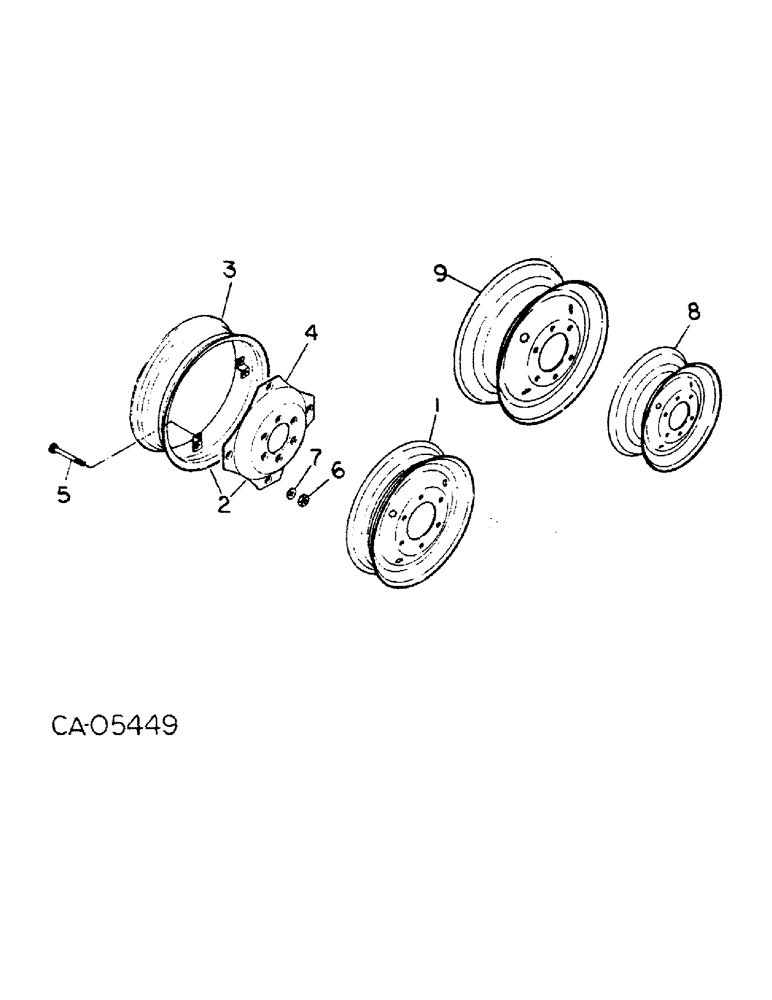

Запчасти Case IH 284 (15-01) - WHEELS AND TRACTION, FRONT AND REAR WHEELS AND TIRES Wheels & Traction

1

973900C2

RIM

WHEEL ASSY, front, painted white, for 5.00-15 tire

2шт.

1

1436559R1

RIM

WHEEL ASSY, front, painted red

2шт.

1

1057886C2

RIM

WHEEL ASSY, front, painted white, for 7-16 tire, tractors w/all wheel drive

2шт.

1

1436580R1

RIM

WHEEL ASSY, front, painted red, for 7-16, tractors w/all wheel drive

1шт.

1012988C1

BOLT

mounting

12шт.

1014377C1

WASHER

M16 x M32 x M4.5

12шт.

2

WHEEL ASSY, rear, painted white, for 11.2/10-24 tire, 1002762C91, order component parts

2шт.

2

WHEEL ASSY, rear, painted red, for 11.2/10-24 tire, 1436588R91, order component parts

2шт.

3

1002763C1

RIM

W8-24 rear wheel, painted white

2шт.

3

1436556R1

RIM

W8-24 rear wheel, painted red

2шт.

4

1002764C1

DISC

rear wheel, painted white

2шт.

4

1436557R1

DISC

rear wheel, painted red

2шт.

5

1002000C2

BOLT

M16 x 34

8шт.

6

1014946C1

NUT

M16

8шт.

7

25547R1

WASHER,21/32" x 1 5/16" x .188", HDN

.656 x 1.312 x .188 PHC hdn

8шт.

8

1014771C11

WHEEL

ASSY, front, painted white, for AGP 20 x 8.00-10 tire, broad based

2шт.

8

1436582R91

WHEEL

ASSY, front, painted red, for AGP 20 x 8.00-10 tire, broad based

2шт.

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

M10 x 20 class 8.8

12шт.

980493C1

WASHER

M10 lock

12шт.

980494C1

NUT

M10

12шт.

1014769C2

GASKET

2шт.

9

979788C2

WHEEL

ASSY, painted white, for AGS 13.6-16 tire, broad based

2шт.

9

1436581R1

WHEEL

ASSY, rear, painted red, for AGP 13.6-16 tire

1шт.
