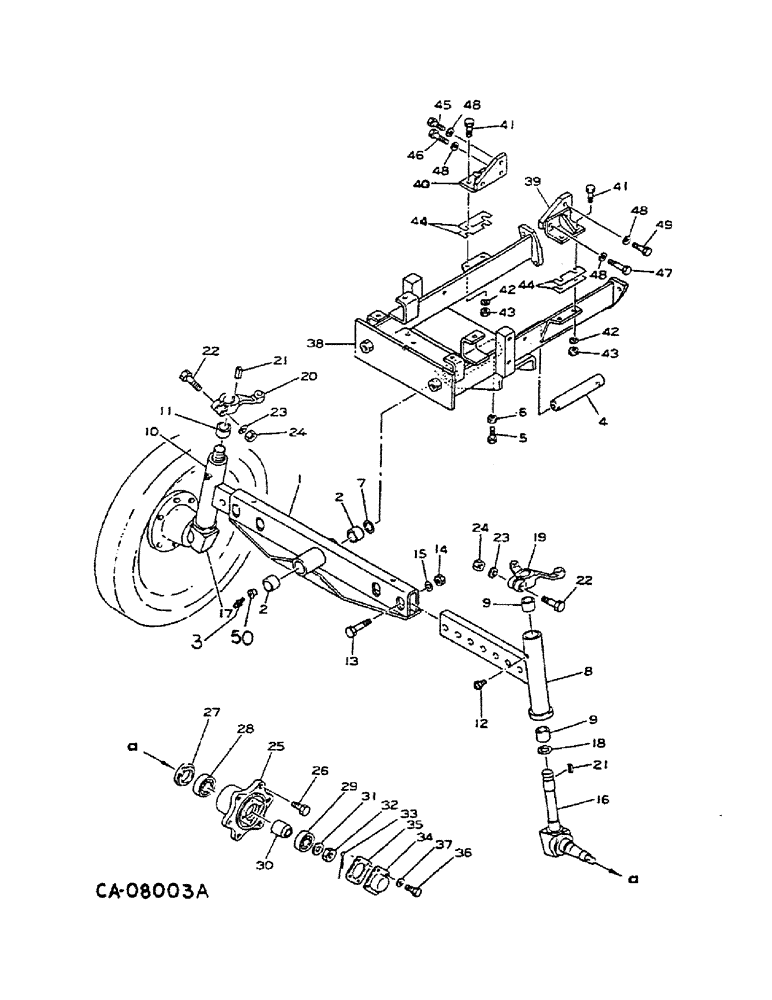

Запчасти Case IH 284 (14-05) - SUSPENSION, FRONT AXLE, DIESEL ENGINE TRACTORS Suspension

1

1004914C91

AXLE

CENTER W/TWO BUSHINGS, 973365C1, axle, serial no. 001258 & below

1шт.

1

1438517R91

AXLE

CENTER W/TWO BUSHINGS, 973365C1, axle, replaces 1431268R91 and 1430953R91 by also ordering four bolts, 1060912C1, serial no. 001259 & above

1шт.

2

973365C1

BUSHING

2шт.

3

979823C1

FITTING

used w/pin 1060818C1

1шт.

3

1060403C1

FITTING

used w/pin 1058583C1

1шт.

4

1060818C1

PIN

center, serial no. 001258 & below

1шт.

4

1058583C1

PIN

center, serial nos, Serial Range: 001259-002650

1шт.

4

1436011R1

PIN

center, serial no. 002651 and above

1шт.

5

973344C1

SCREW

set, serial no. 002650 and below

1шт.

5

1014363C1

BOLT

set, serial no. 002651 and above

1шт.

6

1004945C1

NUT

lock, serial no. 002650 and below

1шт.

7

1004545C1

SHIM

0.4mm

1шт.

7

1058548C1

BLOCK

SHIM, 1.2mm

1шт.

8

1004603C91

EXTENSION

AXLE, LH

1шт.

9

973365C1

BUSHING

2шт.

10

1004604C91

EXTENSION

AXLE, RH

1шт.

11

973365C1

BUSHING

1шт.

12

979823C1

FITTING

2шт.

13

1064562C1

BOLT

M16 x 50 shoulder, used w/center assy, 1004914C91 and 1431268R91

4шт.

13

1430955R1

BOLT

shoulder, used w/center assy 1430953R91

4шт.

13

1060912C1

STEP BOLT

BOLT, shoulder, used w/center assy 1438517R91

4шт.

14

1014944C1

NUT

M16

4шт.

15

25547R1

WASHER,21/32" x 1 5/16" x .188", HDN

.656 x 1.312 x .188 PHC hdn

4шт.

16

1004483C1

STEERING KNUCKLE

KNUCKLE, LH

1шт.

17

1004482C1

STEERING KNUCKLE

KNUCKLE, RH

1шт.

18

1004589C1

THRUST BEARING

BEARING, thrust

2шт.

19

1004588C1

ARM

knuckle LH

1шт.

20

1060073C1

ARM

knuckle RH

1шт.

21

1060763C1

KEY

2шт.

22

1004529C1

BOLT

2шт.

23

980493C1

WASHER

M10

2шт.

24

1004154C1

NUT

M10

2шт.

25

1004480C1

HUB

2шт.

26

1012959C1

BOLT

12шт.

27

1004605C1

OIL SEAL

oil

2шт.

28

1060765C91

BALL BEARING

2шт.

29

1060764C91

BALL BEARING

2шт.

30

1004481C1

COLLAR

2шт.

31

26068R1

WASHER

.812 x 1.500 x .179 PHC hdn

2шт.

32

1014951C1

NUT

2шт.

33

PIN, cotter, purchase locally

2шт.

34

973363C1

CYLINDER END CAP

CAP

2шт.

35

973370C1

GASKET

2шт.

36

980495C1

SCREW

BOLT, M6 x 12

8шт.

37

978084C1

WASHER

(Not used)

1шт.

38

1436170R1

FRAME

sub, replaces 1064587C1 by also ordering center pin, 1436011R1 and set screw, 1014363C1 for tractors w/serial no. 002650 and below

1шт.

38

1434025R1

FRAME

sub, tractors w/all wheel drive, replaces 1430466R1

1шт.

39

1061238C1

BRACKET

ASSY, LH

1шт.

40

1061239C1

BRACKET

ASSY, RH

1шт.

41

30021R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

PHC Hex, M10 x 30, 10.9, Full Thd

4шт.

42

980493C1

WASHER

M10

4шт.

43

980494C1

NUT

M10

4шт.

44

1061534C1

SHIM

4шт.

45

1104956C1

BOLT

M10 x 25

1шт.

46

1104948C1

BOLT

M10 x 35

2шт.

47

1014922C1

BOLT

M10 x 45

2шт.

48

980493C1

WASHER

M10

6шт.

49

1006959C1

BOLT

1шт.

50

1058585C1

ADAPTER

used w/pin 1058583C1

1шт.
