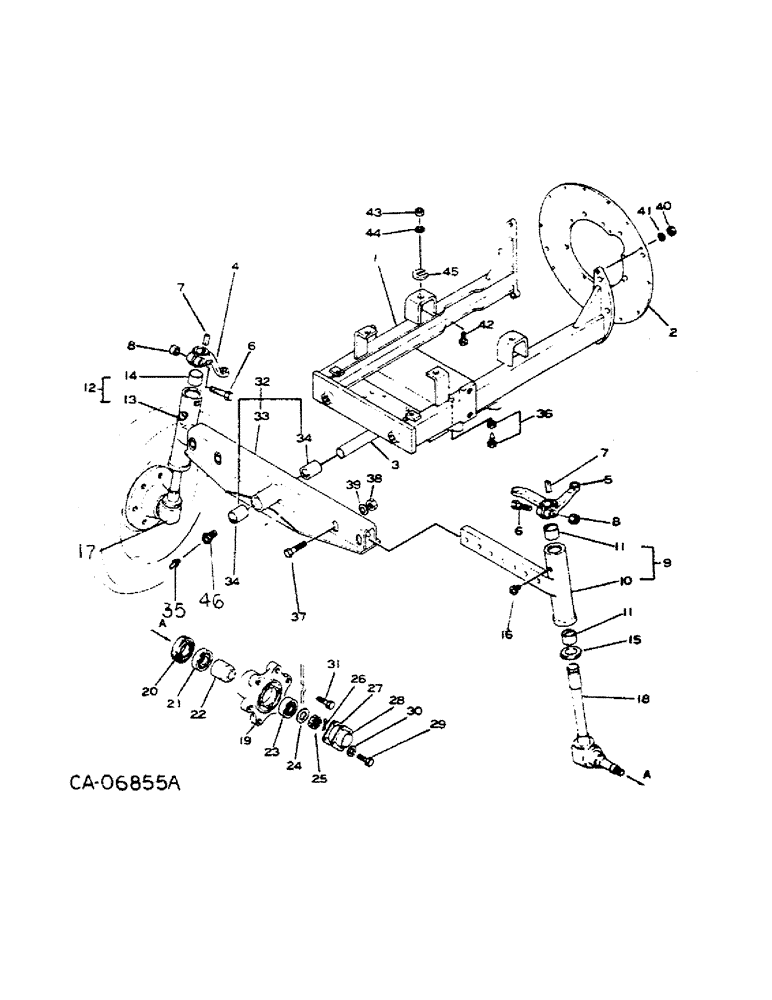

Запчасти Case IH 284 (14-03) - SUSPENSION, FRONT AXLE, GASOLINE ENGINE TRACTORS, SERIAL NO. 011794 AND ABOVE Suspension

1

1004609C1

FRAME

sub, serial no. 012924 and below

1шт.

1

1060817C1

FRAME

sub, serial no. 012925 and above

1шт.

2

1002743C2

PLATE, serial no. 012924 and below

1шт.

3

1004913C1

PIN

center, serial no. 012924 and below

1шт.

3

1060818C1

PIN

center, serial no., Serial Range: 012925-013318

1шт.

3

1058583C1

PIN

center, serial no. 013319 and above

1шт.

4

1060073C1

ARM

knuckle RH

1шт.

5

1004588C1

ARM

knuckle LH

1шт.

6

1004529C1

BOLT

2шт.

7

1060763C1

KEY

2шт.

8

1004154C1

NUT

M10

2шт.

9

1004603C91

EXTENSION

AXLE SET, LH

1шт.

10

1004487C1

AXLE, LH

1шт.

11

973365C1

BUSHING

2шт.

12

1004604C91

EXTENSION

AXLE SET, RH

1шт.

13

1004488C1

AXLE, RH

1шт.

14

973365C1

BUSHING

2шт.

15

1004589C1

THRUST BEARING

BEARING, thrust

2шт.

16

979823C1

FITTING

2шт.

17

1004482C1

STEERING KNUCKLE

KNUCKLE, RH

1шт.

18

1004483C1

STEERING KNUCKLE

KNUCKLE, LH

1шт.

19

1004480C1

HUB

2шт.

20

1004605C1

OIL SEAL

oil

2шт.

21

1060765C91

BALL BEARING

2шт.

22

1004481C1

COLLAR

2шт.

23

1060764C91

BALL BEARING

2шт.

24

26068R1

WASHER

.812 x 1.500 x .179 PHC hdn

2шт.

25

1014951C1

NUT

2шт.

26

PIN, cotter, purchase locally

2шт.

27

973370C1

GASKET

2шт.

28

973363C1

CYLINDER END CAP

CAP

2шт.

29

30191R1

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

M6 x 12 PHC class 10.9

8шт.

30

NOT USED

1шт.

31

30041R1

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

M12 x 25 PHC class 10.9

12шт.

32

1004914C91

AXLE

CENTER ASSY, axle, serial no. 013318 and below

1шт.

32

1438517R91

AXLE

CENTER ASSY, axle, replaces 1431268R91 and 1430953R91 by also ordering four bolts, 1060912C1, serial no. 013319 and above

1шт.

1058548C1

BLOCK

SHIM, mtg, 0.2mm thickness

1шт.

1004545C1

SHIM

mtg, 0.4mm thickness

1шт.

33

AXLE, order center assy

1шт.

34

973365C1

BUSHING

2шт.

35

979823C1

FITTING

used w/pin 1060818C1 and 1004913C1

1шт.

35

1060403C1

FITTING

used w/pin 1058583C1

1шт.

36

973344C1

SCREW

set

1шт.

1004945C1

NUT

lock

1шт.

37

1064562C1

BOLT

M16 x 50 shoulder, used w/center assy 1004914C91 and 1431268R91

4шт.

37

1430955R1

BOLT

shoulder, used w/center assy 1430953R91

4шт.

37

1060912C1

STEP BOLT

BOLT, shoulder, used w/center assy 1438517R91

4шт.

38

1014944C1

NUT

M16

4шт.

39

25547R1

WASHER,21/32" x 1 5/16" x .188", HDN

.656 x 1.312 x .188 PHC hdn

4шт.

40

1004154C1

NUT

cyl block stud, serial no. 012924 and below

6шт.

41

980493C1

WASHER

M10, serial no. 012924 and below

6шт.

42

30043R1

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

M12 x 35 PHC class 10.9 engine mtg

2шт.

43

1014942C1

NUT

M12

2шт.

44

988891C1

WASHER

M12 lock

2шт.

45

1002801C1

SHIM

1шт.

45

1014759C1

SHIM

engine mtg, 0.5mm thickness

1шт.

46

1058585C1

ADAPTER

used w/pin 1058583C1

1шт.
